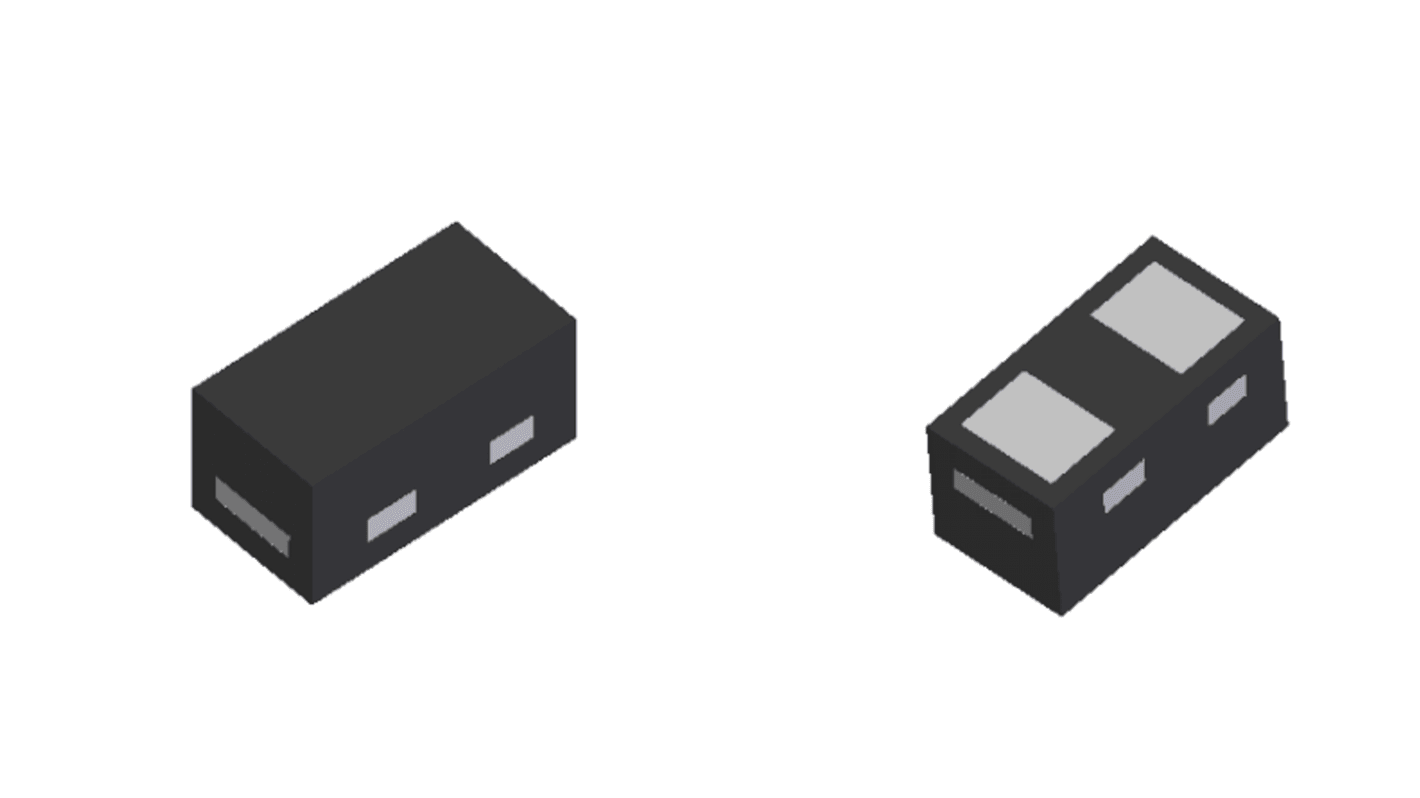

Diodes Inc D3V3F4U10LP-7, Quad-Element Uni-Directional TVS Diode, 350mW, 10-Pin U-DFN2510

RS Stock No.:: 182-7440
Mfr. Part No.:: D3V3F4U10LP-7
Manufacturer:: DiodesZetex

Diodes Inc D3V3F4U10LP-7, Quad-Element Uni-Directional TVS Diode, 350mW, 10-Pin U-DFN2510

View all TVS Diodes

Temporarily out of stock - back order for despatch 30/12/2024, delivery within 4 working days from despatch date

Added

View basket

Price Each (In a Pack of 50)

MYR1.482

Units	Per Unit	Per Pack*
50 - 700	MYR1.482	MYR74.10
750 - 1450	MYR1.186	MYR59.30
1500 +	MYR1.078	MYR53.90
*price indicative

RS Stock No.:: 182-7440
Mfr. Part No.:: D3V3F4U10LP-7
Manufacturer:: DiodesZetex

Technical data sheets

Datasheet D3V3F4U10LP-7

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

This new generation TVS is designed to protect sensitive electronics from the damage due to ESD. The combination of small size and high ESD surge capability makes it ideal for use in portable applications such as cellular phones, digital cameras, and MP3 players.

Excellent Clamping Capability
Low capacitance is 0.5pF typ
Superior ESD protection
Peak pulse surge current Ipp up to 5A
Lead-free finish
Applications
Mobile Phone
Computers
Peripheral

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Specifications

Attribute	Value
Direction Type	Uni-Directional
Diode Configuration	Array
Maximum Clamping Voltage	5V
Minimum Breakdown Voltage	5.5V
Mounting Type	Surface Mount
Package Type	U-DFN2510
Pin Count	10
Peak Pulse Power Dissipation	350mW
Maximum Peak Pulse Current	5A
ESD Protection	Yes
Number of Elements per Chip	4
Minimum Operating Temperature	-55 °C
Dimensions	2.57 x 1.07 x 0.55mm
Maximum Operating Temperature	+150 °C
Width	1.07mm
Height	0.55mm
Length	2.57mm
Maximum Reverse Leakage Current	1µA
Capacitance	0.5pF
Working Voltage	3.3V
