Units	Per Unit
1 - 199	MYR78.76
200 - 399	MYR76.00
400 +	MYR70.35

Select all	Attribute	Value
	Brand	Littelfuse
	Direction Type	Bi-Directional
	Diode Configuration	Single
	Maximum Clamping Voltage	119.4V
	Minimum Breakdown Voltage	83.8V
	Mounting Type	Through Hole
	Package Type	P600
	Maximum Reverse Stand-off Voltage	75V
	Pin Count	2
	Peak Pulse Power Dissipation	30kW
	Maximum Peak Pulse Current	253.8A
	ESD Protection	Yes
	Number of Elements per Chip	1
	Minimum Operating Temperature	-55 °C
	Dimensions	9.1 Dia. x 9.1mm
	Maximum Operating Temperature	+175 °C
	Test Current	5mA
	Maximum Reverse Leakage Current	2µA
	Length	9.1mm
	Surge Current Rating	400A
	Diameter	9.1mm

	Select all
	Brand Littelfuse
	Direction Type Bi-Directional
	Diode Configuration Single
	Maximum Clamping Voltage 119.4V
	Minimum Breakdown Voltage 83.8V
	Mounting Type Through Hole
	Package Type P600
	Maximum Reverse Stand-off Voltage 75V
	Pin Count 2
	Peak Pulse Power Dissipation 30kW
	Maximum Peak Pulse Current 253.8A
	ESD Protection Yes
	Number of Elements per Chip 1
	Minimum Operating Temperature -55 °C
	Dimensions 9.1 Dia. x 9.1mm
	Maximum Operating Temperature +175 °C
	Test Current 5mA
	Maximum Reverse Leakage Current 2µA
	Length 9.1mm
	Surge Current Rating 400A
	Diameter 9.1mm

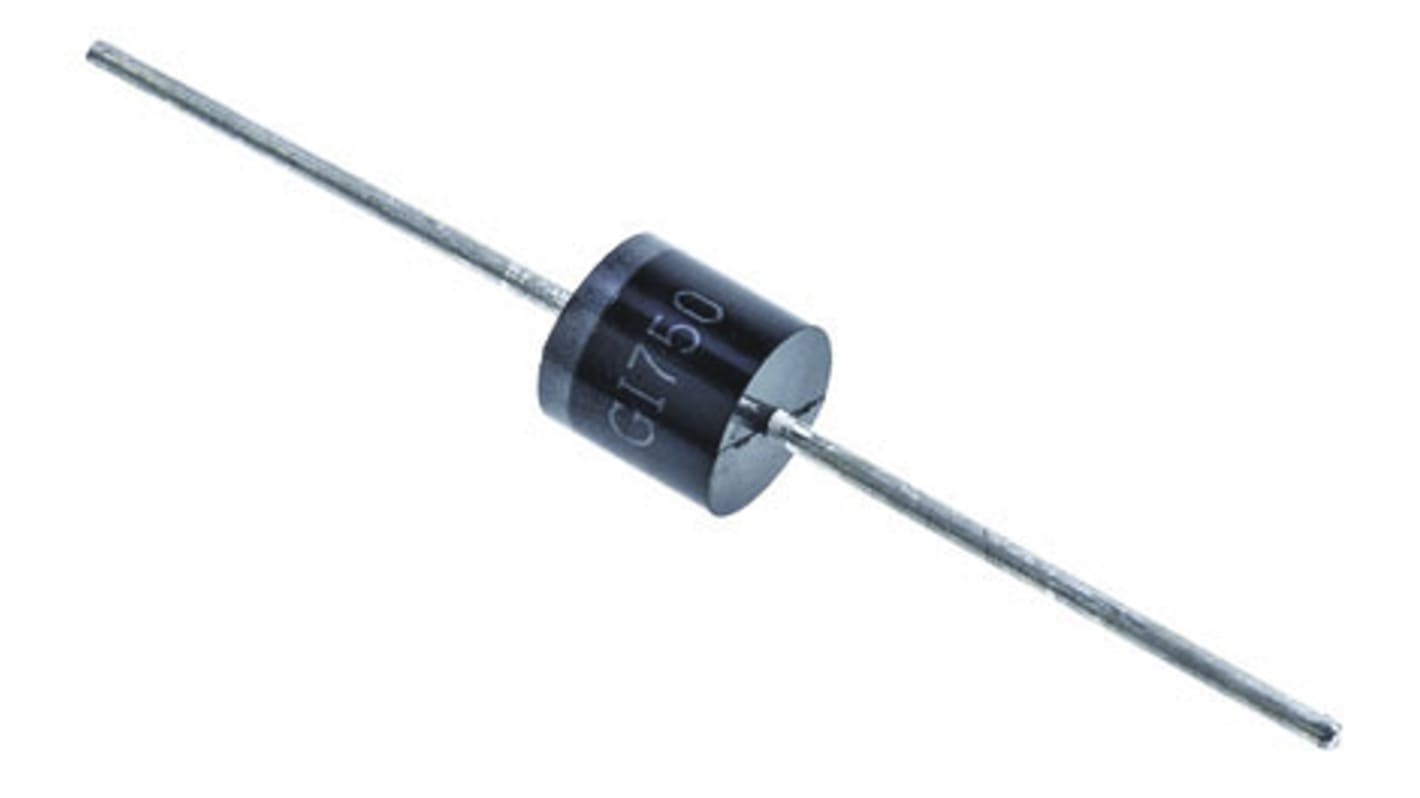

Littelfuse 30KPA75CA, Bi-Directional TVS Diode, 30kW, 2-Pin P600
