Units	Per Unit	Per Reel**
1800 - 1800	MYR0.466	MYR838.80
3600 - 5400	MYR0.456	MYR820.80
7200 +	MYR0.447	MYR804.60

Select all	Attribute	Value
	Brand	Vishay
	Direction Type	Uni-Directional
	Diode Configuration	Single
	Maximum Clamping Voltage	12.9V
	Minimum Breakdown Voltage	8.33V
	Mounting Type	Surface Mount
	Package Type	DO-214AC (SMA)
	Maximum Reverse Stand-off Voltage	7.5V
	Pin Count	2
	Peak Pulse Power Dissipation	400W
	Maximum Peak Pulse Current	31A
	Number of Elements per Chip	1
	Minimum Operating Temperature	-55 °C
	Dimensions	4.5 x 2.79 x 2.087mm
	Maximum Operating Temperature	+150 °C
	Length	4.5mm
	Height	2.087mm
	Maximum Reverse Leakage Current	100µA
	Test Current	1mA
	Width	2.79mm

	Select all
	Brand Vishay
	Direction Type Uni-Directional
	Diode Configuration Single
	Maximum Clamping Voltage 12.9V
	Minimum Breakdown Voltage 8.33V
	Mounting Type Surface Mount
	Package Type DO-214AC (SMA)
	Maximum Reverse Stand-off Voltage 7.5V
	Pin Count 2
	Peak Pulse Power Dissipation 400W
	Maximum Peak Pulse Current 31A
	Number of Elements per Chip 1
	Minimum Operating Temperature -55 °C
	Dimensions 4.5 x 2.79 x 2.087mm
	Maximum Operating Temperature +150 °C
	Length 4.5mm
	Height 2.087mm
	Maximum Reverse Leakage Current 100µA
	Test Current 1mA
	Width 2.79mm

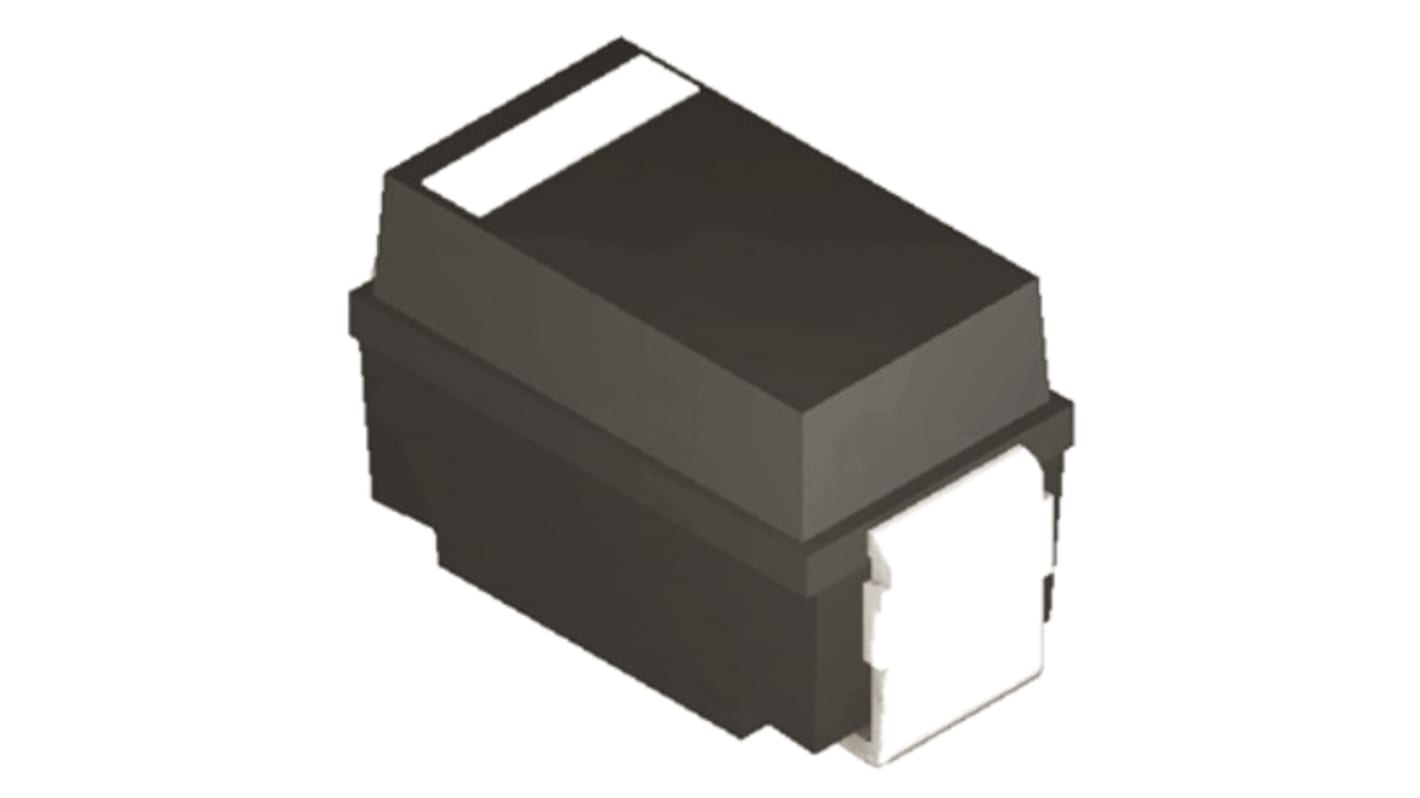

Vishay SMAJ7.5A-E3/61, Uni-Directional TVS Diode, 400W, 2-Pin DO-214AC

FREE delivery for orders over MYR500.00

TRANSZORB® Transient Voltage Suppressors SMT Unidirectional 400W, SMAJ Series, Vishay Semiconductor

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
