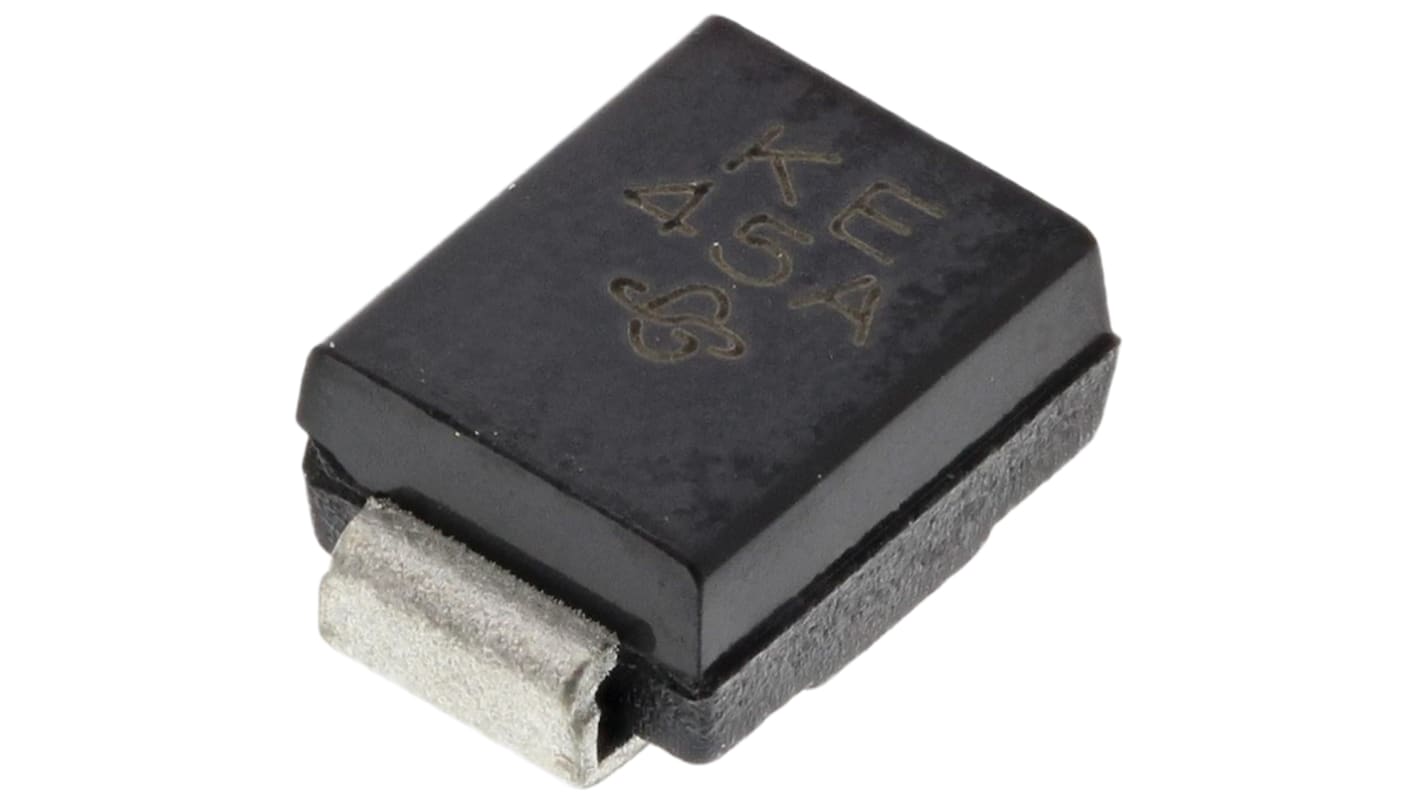

Vishay SMBJ5.0CA-E3/52, Bi-Directional TVS Diode, 600W, 2-Pin DO-214AA
- RS Stock No.:
- 165-2481
- Mfr. Part No.:
- SMBJ5.0CA-E3/52
- Manufacturer:
- Vishay
Temporarily out of stock - back order for despatch 15/07/2024, delivery within 4 working days from despatch date
Added
Price Each (On a Reel of 750)
MYR0.979
| Units | Per Unit | Per Reel* |
| 750 + | MYR0.979 | MYR734.25 |
| *price indicative | ||
- RS Stock No.:
- 165-2481
- Mfr. Part No.:
- SMBJ5.0CA-E3/52
- Manufacturer:
- Vishay
Legislation and Compliance
Product Details
TRANSZORB® Transient Voltage Suppressors SMT Bidirectional 600W, Vishay Semiconductor
Low profile DO-214AA (SMBJ) package
Excellent clamping capability
Very fast response time
Low resistance with incremental surge
Excellent clamping capability
Very fast response time
Low resistance with incremental surge
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Transient Voltage Suppressors, Vishay Semiconductor
Specifications
Attribute | Value |
|---|---|
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Maximum Clamping Voltage | 9.2V |
| Minimum Breakdown Voltage | 6.4V |
| Mounting Type | Surface Mount |
| Package Type | DO-214AA (SMB) |
| Maximum Reverse Stand-off Voltage | 5V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 600W |
| Maximum Peak Pulse Current | 65.2A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Dimensions | 4.57 x 3.94 x 2.24mm |
| Width | 3.94mm |
| Height | 2.24mm |
| Maximum Reverse Leakage Current | 1.6mA |
| Test Current | 10mA |
| Length | 4.57mm |
