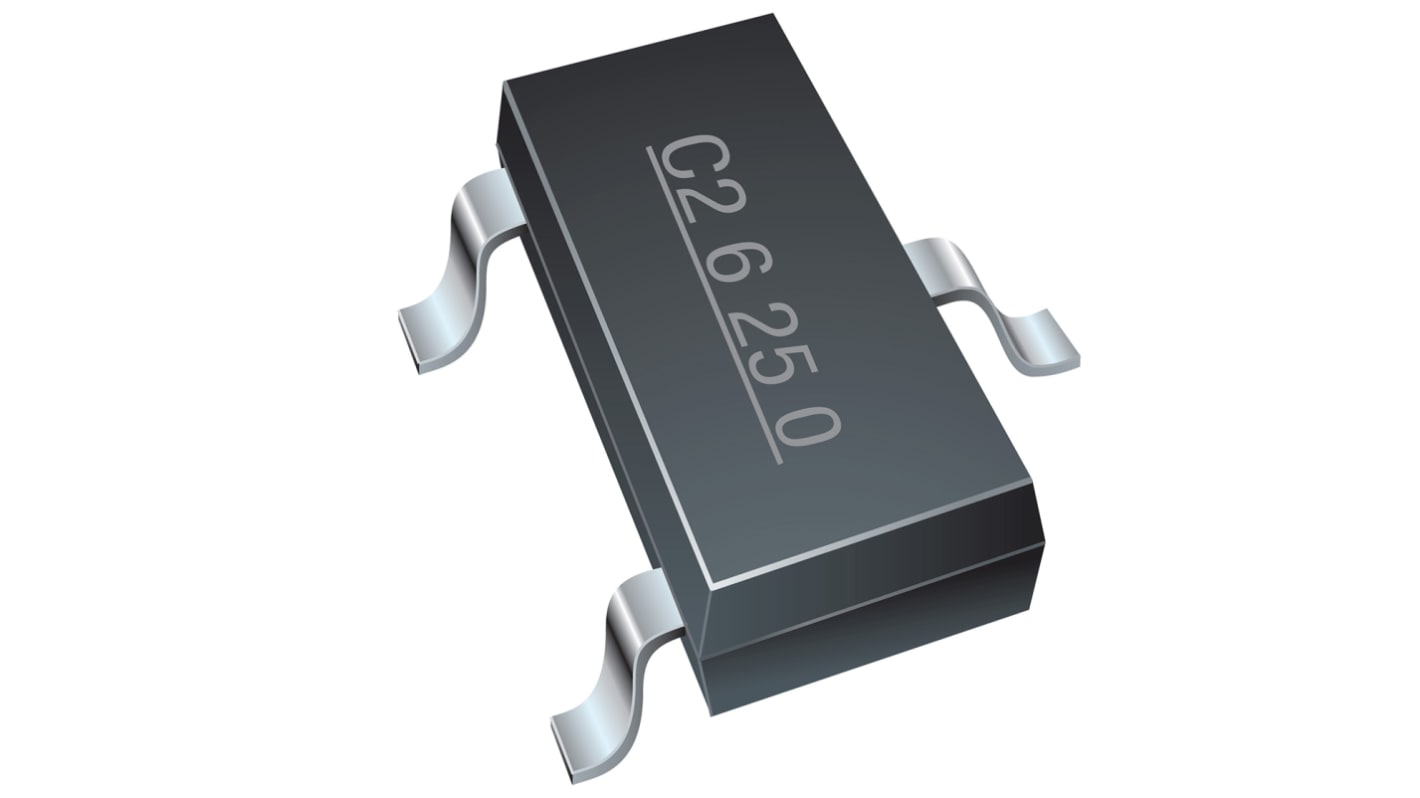

Bourns CDSOT23-T24CAN-Q, Dual-Element Bi-Directional TVS Diode Array, 3-Pin SOT-23
- RS Stock No.:
- 165-1361P
- Mfr. Part No.:
- CDSOT23-T24CAN-Q
- Manufacturer:
- Bourns
Bulk discount available
Subtotal 750 units (supplied on a reel)**. Quantities below 150 on continuous strip
MYR865.50
Temporarily out of stock - back order for despatch 06/09/2025, delivery within 4 working days from despatch date*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Units | Per Unit |
|---|---|
| 750 - 1450 | MYR1.154 |
| 1500 + | MYR1.096 |
**price indicative
- RS Stock No.:
- 165-1361P
- Mfr. Part No.:
- CDSOT23-T24CAN-Q
- Manufacturer:
- Bourns
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Direction Type | Bi-Directional | |
| Maximum Clamping Voltage | 40V | |
| Minimum Breakdown Voltage | 26.2V | |
| Mounting Type | Surface Mount | |
| Package Type | SOT-23 | |
| Pin Count | 3 | |
| Maximum Peak Pulse Current | 8A | |
| ESD Protection | Yes | |
| Number of Elements per Chip | 2 | |
| Minimum Operating Temperature | -40 °C | |
| Dimensions | 3 x 1.4 x 1.02mm | |
| Maximum Operating Temperature | +150 °C | |
| Height | 1.02mm | |
| Maximum Reverse Leakage Current | 100nA | |
| Test Current | 1mA | |
| Width | 1.4mm | |
| Working Voltage | 24V | |
| Length | 3mm | |
| Capacitance | 30pF | |
| Automotive Standard | AEC-Q101 | |
| ESD Voltage | 30kV | |
| RMS Voltage | 1Vrms | |
