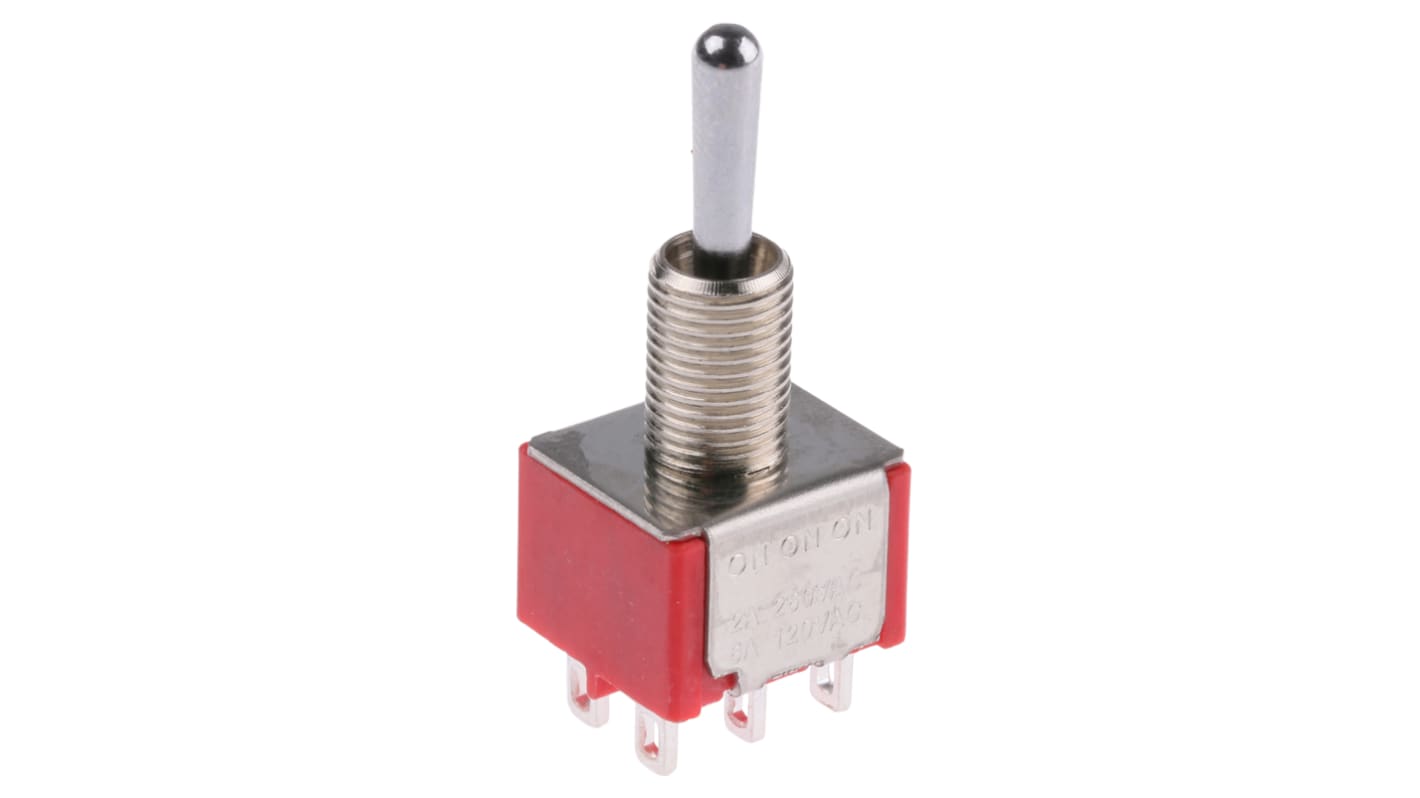

RS PRO Toggle Switch, Panel Mount, On-On-On, DPDT, Solder Terminal
- RS Stock No.:
- 734-7053
- Manufacturer:
- RS PRO
10 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
Was MYR21.48
You pay
MYR20.33
| Units | Per Unit |
| 1 - 4 | MYR20.33 |
| 5 + | MYR16.73 |
- RS Stock No.:
- 734-7053
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
Product Details
Toggle Switches, Miniature - RS Series
RS series of PCB mount miniature toggle switches with a low contact resistance and are available with either Gold (R) or Silver (Q) contact material. The RS series miniature toggle switches have a minimum insulation resistance of 1000MΩ and a minimum dielectric strength of 1000 Vrms.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Switch Operation | On-On-On |
| Contact Current Rating | 2 A @ 250 V ac |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| Panel Cut Out Diameter | 6.35mm |
| Actuator Length | 10.41mm |
| Actuator Material | Chromium Plated Brass |
| Panel Cut Out Size | 6.35mm |
| Contact Resistance | 0.01Ω |
| Contact Material | Silver Plated Brass |
| Mechanical Life | 40000Cycles |
| Minimum Operating Temperature | -30°C |
| Standards Met | RoHS & Lead Free |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -30 → +85°C |
