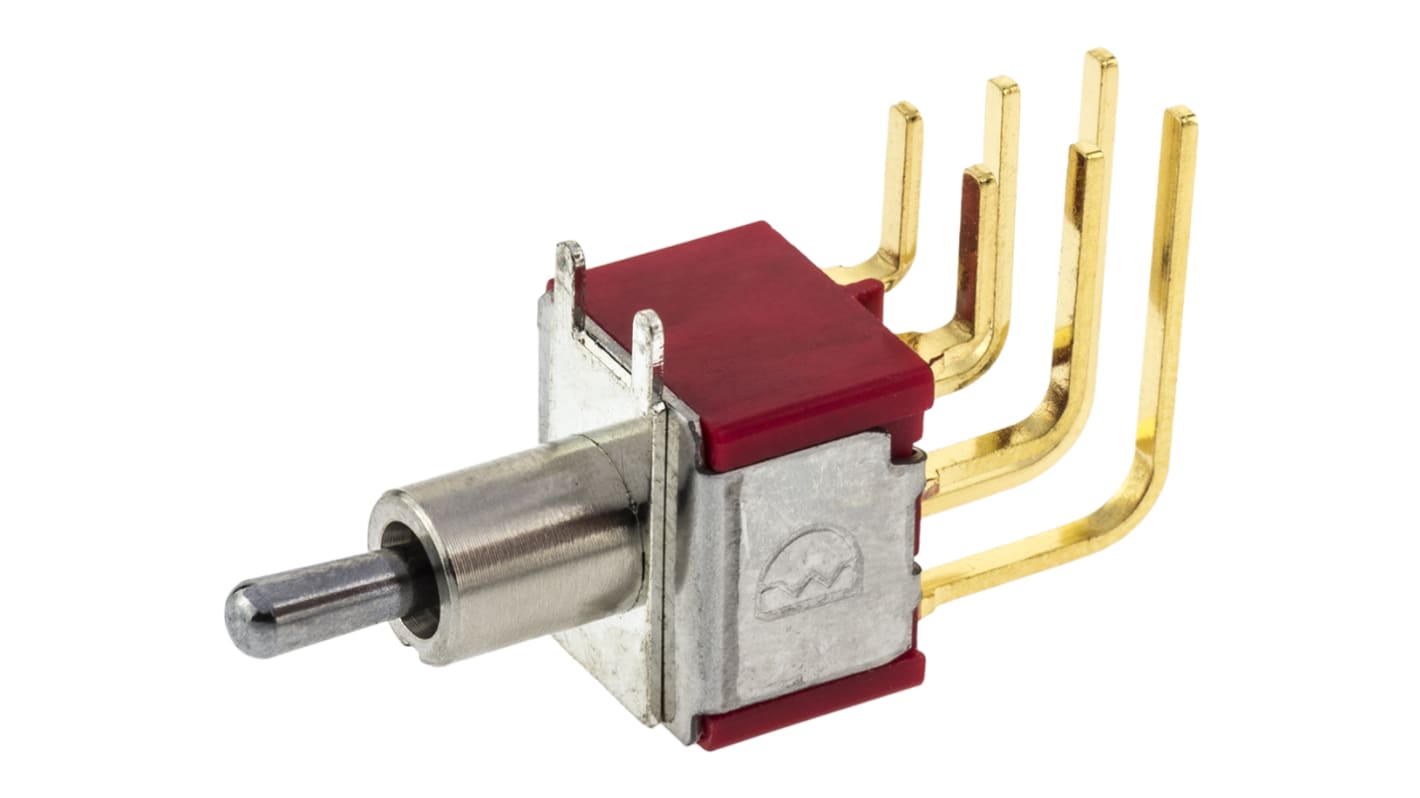

RS PRO Double Pole Double Throw (DPDT) Toggle Switch, On-Off-On, PCB

  • RS Stock No. 734-7040
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Toggle Switches, Miniature - RS Series

RS series of PCB mount miniature toggle switches with a low contact resistance and are available with either Gold (R) or Silver (Q) contact material. The RS series miniature toggle switches have a minimum insulation resistance of 1000MΩ and a minimum dielectric strength of 1000 Vrms.

Specifications
Attribute Value
Contact Configuration Double Pole Double Throw (DPDT)
Switch Operation On-Off-On
Contact Current Rating 400 mA @ 20 V
Mounting Type PCB
Terminal Type Through Hole
Panel Cut Out Diameter 6.35mm
Actuator Length 5.08mm
Actuator Material Chromium Plated Brass
Contact Resistance 10mΩ
Minimum Operating Temperature -30°C
Contact Material Gold Plated Brass
Panel Cut Out Size 6.35mm
Standards Met RoHS & Lead Free
Maximum Operating Temperature +85°C
Mechanical Life 40000Cycles
Operating Temperature Range -30 +85°C
