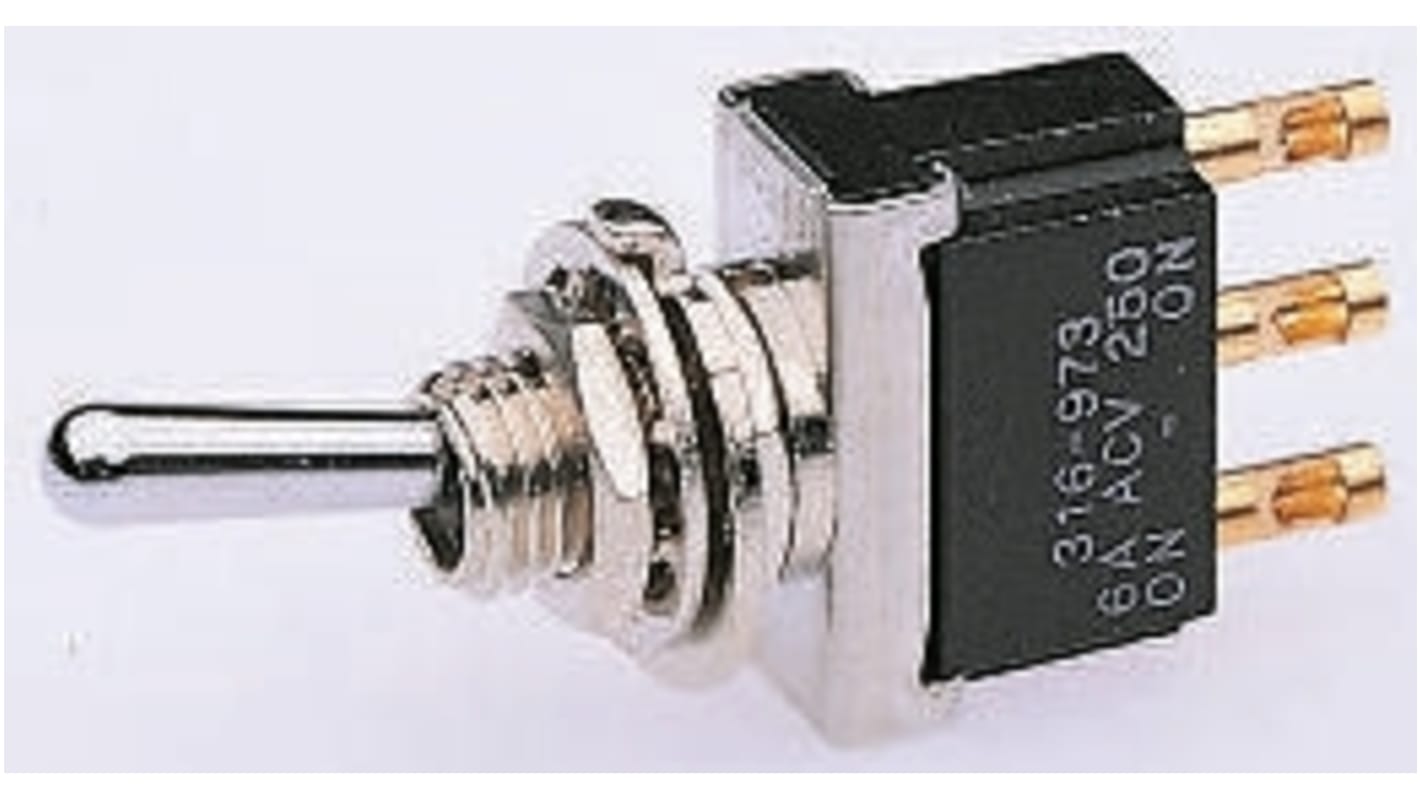

TE Connectivity Double Pole Double Throw (DPDT) Toggle Switch, Latching, Panel Mount

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): JP
Product Details

TE Connectivity Panel Mount Toggle Switch - FT Ultraminiature Series

FT ultraminiature series panel mount toggle switches with M6 x 0.75mm threaded bushing that conforms to standard panel cut outs. These panel mount toggle switches have hooking type lead wire solder terminations and silver plated copper alloy contacts. Typical uses for these ultraminiature series panel mount toggle switches include light to medium duty applications such as industrial, instrumentation and medical equipment.

Specifications
Attribute Value
Contact Configuration DPDT
Switch Operation Latching
Contact Current Rating 6 A @ 250 V ac
Mounting Type Panel Mount
Terminal Type Solder
Panel Cut Out Diameter 6.2mm
Actuator Length 10.5mm
Actuator Material Chromium Plated Brass
Contact Resistance 10mΩ
Minimum Operating Temperature -20°C
Contact Material Silver Plated Brass Alloy
Maximum Operating Temperature +70°C
Operating Temperature Range -20 +70°C
Mechanical Life 50000Cycles
Panel Cut Out Size 6.2mm
Temporarily out of stock - back order for despatch 28/10/2020, delivery within 4 working days from despatch date
Price Each (In a Box of 100)
MYR 35.771
units
Per unit
Per Box*
100 +
MYR35.771
MYR3,577.10
*price indicative
