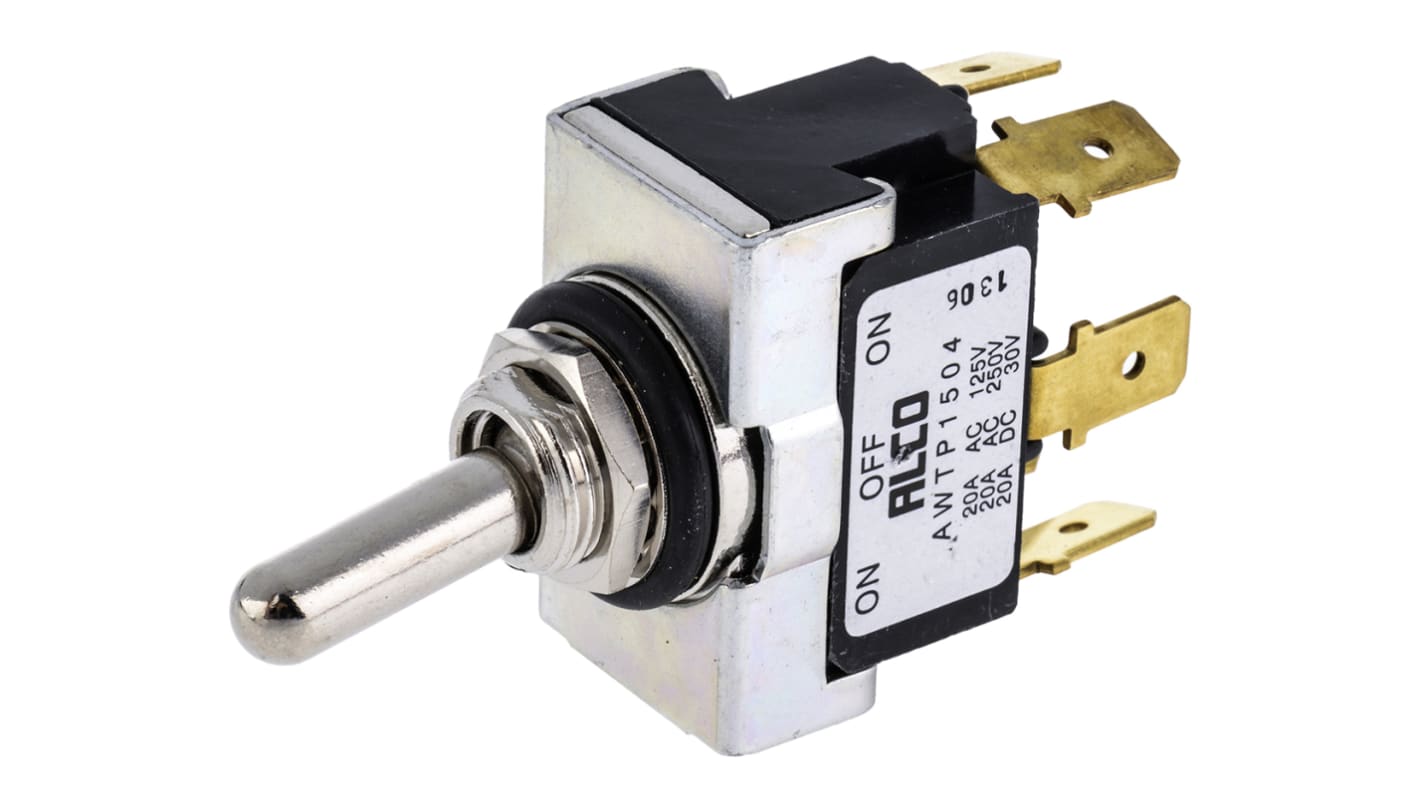

TE Connectivity Toggle Switch, Panel Mount, On-Off-On, DPDT, Tab Terminal
- RS Stock No.:
- 135-4446
- Mfr. Part No.:
- AWTP1504
- Manufacturer:
- TE Connectivity
Temporarily out of stock - back order for despatch 15/05/2024, delivery within 4 working days from despatch date
Added
Price Each (In a Bag of 100)
MYR304.131
| Units | Per Unit | Per Bag* |
| 100 - 100 | MYR304.131 | MYR30,413.10 |
| 200 - 300 | MYR299.447 | MYR29,944.70 |
| 400 + | MYR292.969 | MYR29,296.90 |
| *price indicative | ||
- RS Stock No.:
- 135-4446
- Mfr. Part No.:
- AWTP1504
- Manufacturer:
- TE Connectivity
Technical data sheets
Legislation and Compliance
Product Details
Waterproof IP67
Toggle switches with silver plated contacts sealed to prevent the ingress of dust or liquids
Connection via 250in. (1/4in.) receptacles or soldering
For biased operation ’(on)’ refers to momentary on position
Brass actuator and Glass Filled Polyester case
Connection via 250in. (1/4in.) receptacles or soldering
For biased operation ’(on)’ refers to momentary on position
Brass actuator and Glass Filled Polyester case
Approvals
UL; CSA
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | DPDT |
| Switch Operation | On-Off-On |
| Contact Current Rating | 20 A @ 250 V ac |
| Mounting Type | Panel Mount |
| Terminal Type | Tab |
| IP Rating | IP67 |
| Actuator Length | 17.5mm |
| Actuator Material | Brass |
| Contact Resistance | 10mΩ |
| Contact Material | Silver Plated |
| Maximum Operating Temperature | +70°C |
| Operating Temperature Range | -20 → +70°C |
| Minimum Operating Temperature | -20°C |
