- RS Stock No.:
- 124-5946
- Mfr. Part No.:
- S7A
- Manufacturer:
- NKK Switches
20 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
64 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR42.74
Units | Per Unit |
1 - 4 | MYR42.74 |
5 - 19 | MYR41.86 |
20 - 49 | MYR40.62 |
50 - 99 | MYR39.61 |
100 + | MYR38.76 |
- RS Stock No.:
- 124-5946
- Mfr. Part No.:
- S7A
- Manufacturer:
- NKK Switches
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details

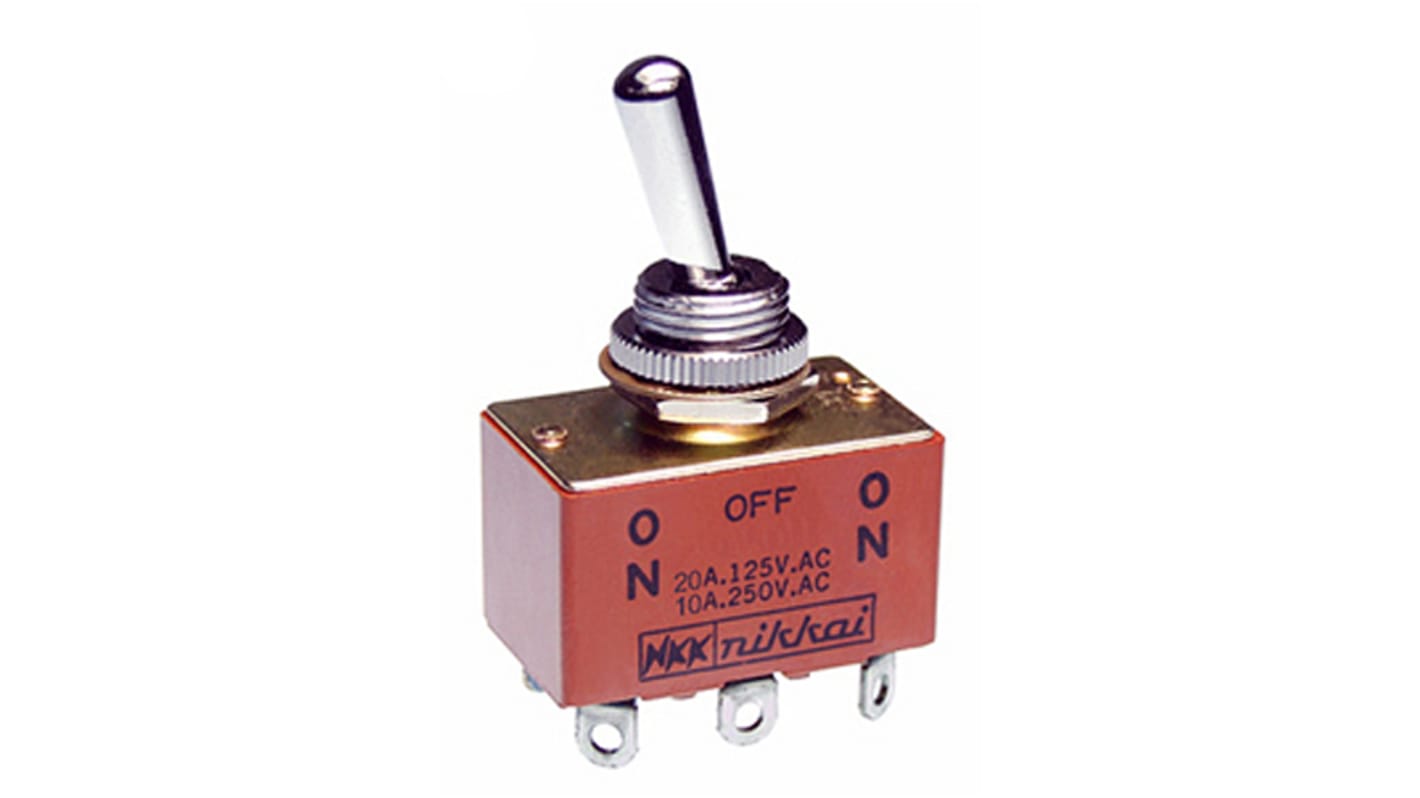

NKK Switches - S Series Medium Capacity Standard Size Toggle Switches
The NKK Switches S Series Standard-Size Toggles come in low, medium and high capacity models. Ratings for the S Series range from 5A to 30A @ 125 VAC.
The NKK S Series switch design features a sturdy construction with high torque bushings and zinc plated steel covers. NKK toggle switches are designed to perform and withstand tough environments. The full line of toggles features both PC board and panel mounting options with a full array of actuators and termination styles to meet any application.
The NKK S Series switch design features a sturdy construction with high torque bushings and zinc plated steel covers. NKK toggle switches are designed to perform and withstand tough environments. The full line of toggles features both PC board and panel mounting options with a full array of actuators and termination styles to meet any application.
Specifications
Attribute | Value |
---|---|
Contact Configuration | DPDT |
Switch Operation | On-Off-On |
Contact Current Rating | 20 A |
Mounting Type | Panel Mount |
Terminal Type | Solder |
IP Rating | IP67 |
Panel Cut Out Diameter | 12.5mm |
Actuator Length | 17.5mm |
Actuator Material | Chrome Plated Brass |
Voltage Rating | 30 V dc, 250V ac |
Panel Cut Out Size | 12.5 (Dia.)mm |
Contact Resistance | 10mΩ |
Contact Material | Brass |
Maximum Operating Temperature | +70°C |
Minimum Operating Temperature | -10°C |
Standards Met | CSA Recognised |
Operating Temperature Range | -10 → +70°C |
Mechanical Life | 50000Operations |
