TE Connectivity Toggle Switch, Panel Mount, On-On, DPDT, Solder Terminal, 250V

RS Stock No.:: 317-651
Mfr. Part No.:: FTN7904
Manufacturer:: TE Connectivity

TE Connectivity Toggle Switch, Panel Mount, On-On, DPDT, Solder Terminal, 250V

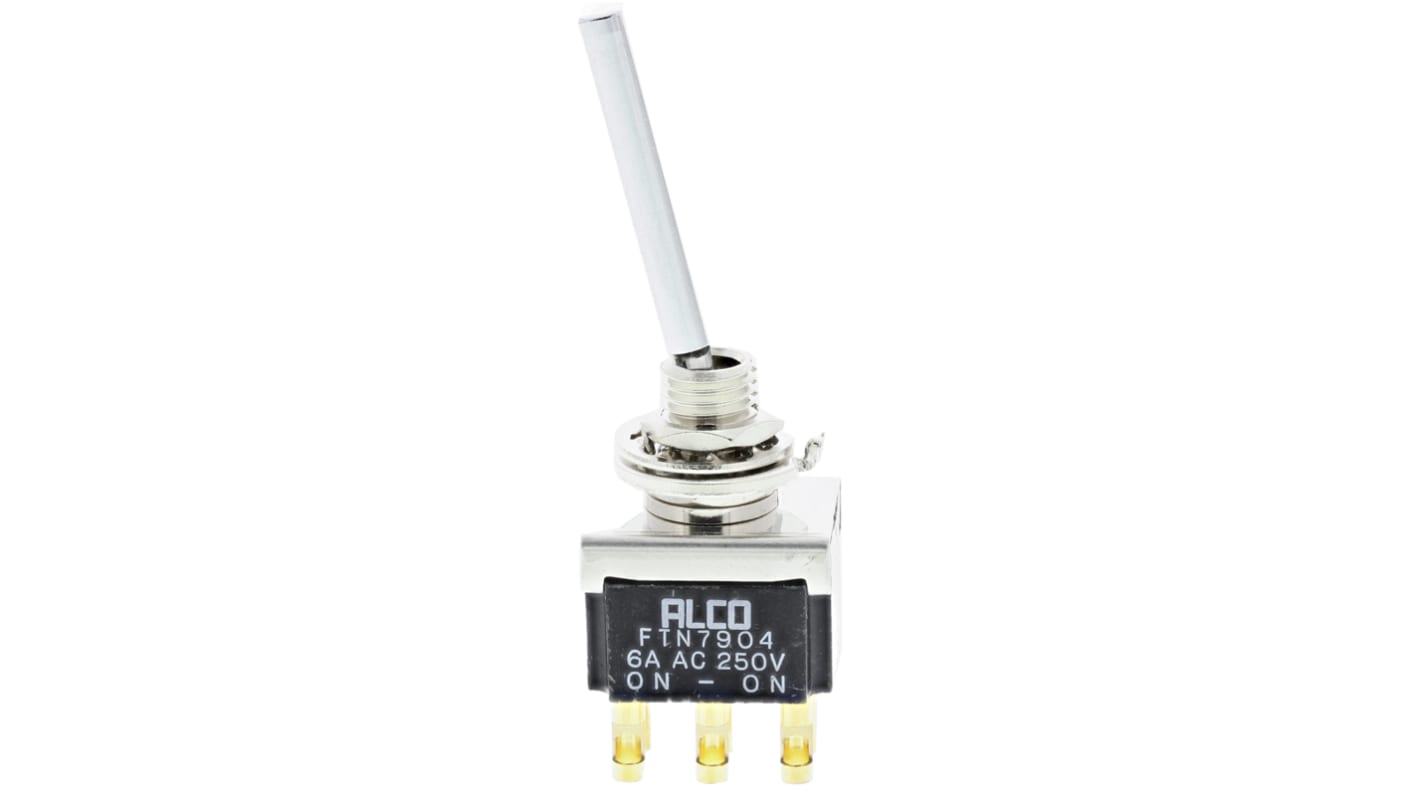

This image is representative of the product range

13 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each

MYR79.34

Units	Per Unit
1 - 24	MYR79.34
25 - 49	MYR77.67
50 +	MYR75.34

RS Stock No.:: 317-651
Mfr. Part No.:: FTN7904
Manufacturer:: TE Connectivity

Technical data sheets

RS Pro Datasheet

Legislation and Compliance

Product Details

Toggle Switches, Min, Long Flat Lever

Switches with a chrome-finished long flat lever, offering attractive style and ease of operation
Gold contacts: Stock nos: 317-617, 317-639 & 317-623
Silver contacts: Stock nos: 317-645, 317-651 & 317-673
Lower user operating force
Glass Filled Polyester case

Note

For biased switches '(on)' refers to momentary 'on' position

Approvals

CSA

Approvals

CSA

Specifications

Attribute	Value
Contact Configuration	Double Pole Double Throw (DPDT)
Switch Operation	On-On
Contact Current Rating	6 A @ 250 V ac
Mounting Type	Panel Mount
Terminal Type	Solder
Panel Cut Out Diameter	6.2mm
Actuator Length	11.5mm
Actuator Material	Chrome Plated Brass
Voltage Rating	250V
Contact Material	Fine Silver
Contact Resistance	0.01Ω
Operating Temperature Range	-20 → +80°C
Mechanical Life	100000Operations
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C
Standards Met	CSA Recognised, RoHS, UL 94V-0
