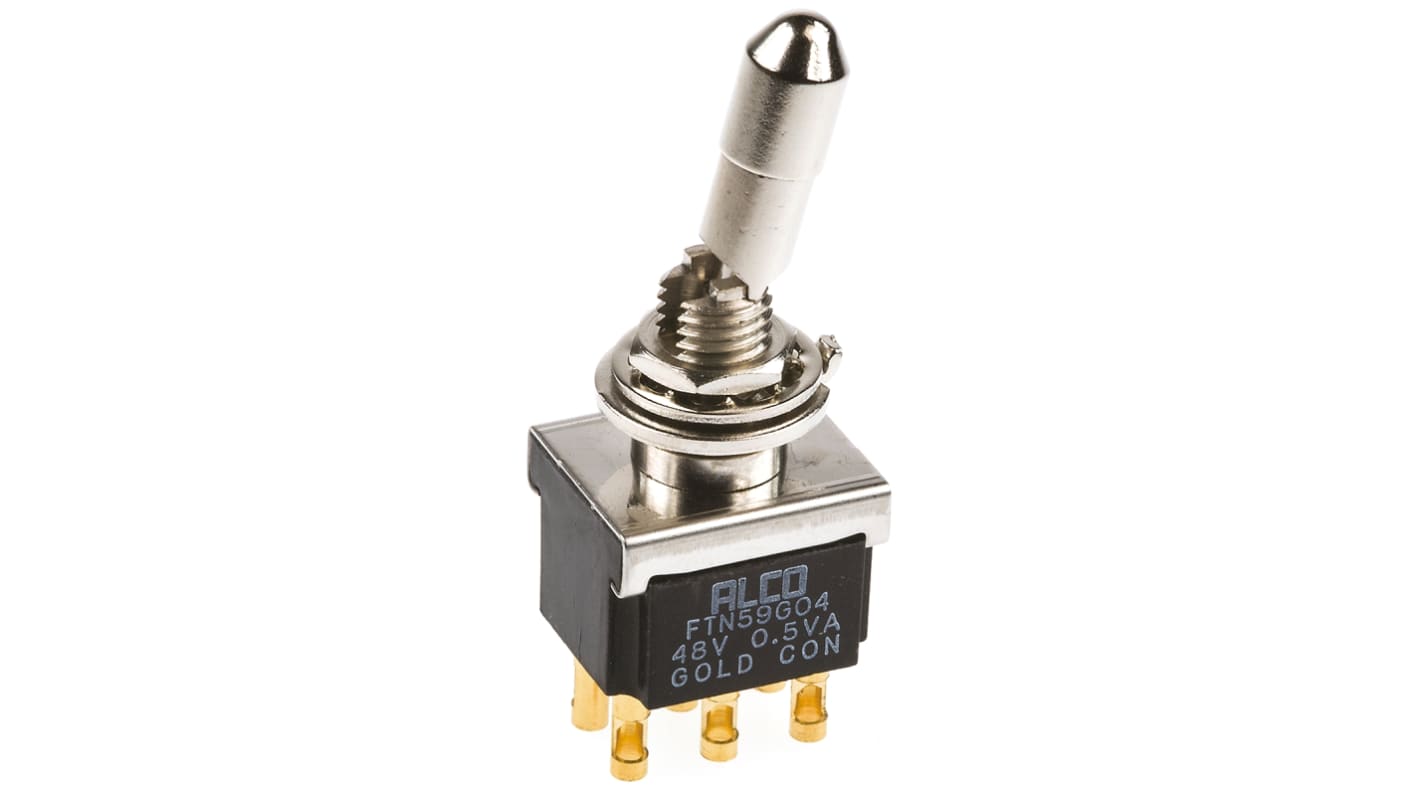

TE Connectivity Toggle Switch, Panel Mount, On-On, DPDT, Solder Terminal
- RS Stock No.:
- 317-588
- Mfr. Part No.:
- FTN59G04
- Manufacturer:
- TE Connectivity
181 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR128.58
| Units | Per Unit |
| 1 - 24 | MYR128.58 |
| 25 - 49 | MYR125.89 |
| 50 + | MYR122.12 |
- RS Stock No.:
- 317-588
- Mfr. Part No.:
- FTN59G04
- Manufacturer:
- TE Connectivity
Technical data sheets
Legislation and Compliance
Product Details
Toggle Switches, Min, Locking Lever
Switches with a locking lever that is retained in one switch position and may only change over by being drawn out (against a spring retainer) and guided into the other position thus preventing accidental switching
Gold contacts: Stock nos: 317-572 & 317-588
Silver contacts: Stock no: 317-601
Glass Filled Polyester case
Gold contacts: Stock nos: 317-572 & 317-588
Silver contacts: Stock no: 317-601
Glass Filled Polyester case
Note
For biased switches '(on)' refers to momentary 'on' position
Approvals
CSA
Approvals
CSA
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Switch Operation | On-On |
| Contact Current Rating | 400 mA @ 20 V |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| Panel Cut Out Diameter | 6.2mm |
| Actuator Length | 10.5mm |
| Actuator Material | Brass |
| Contact Material | Copper Alloy |
| Contact Resistance | 0.01Ω |
| Operating Temperature Range | -20 → +70°C |
| Mechanical Life | 100000Cycles |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +80°C |
| Standards Met | CSA Recognised, RoHS, UL 94V-0 |
