TE Connectivity Toggle Switch, Panel Mount, (On)-Off-(On), DPDT, Solder Terminal, 125V ac

RS Stock No.:: 317-178
Mfr. Part No.:: FTS0904
Manufacturer:: TE Connectivity

TE Connectivity Toggle Switch, Panel Mount, (On)-Off-(On), DPDT, Solder Terminal, 125V ac

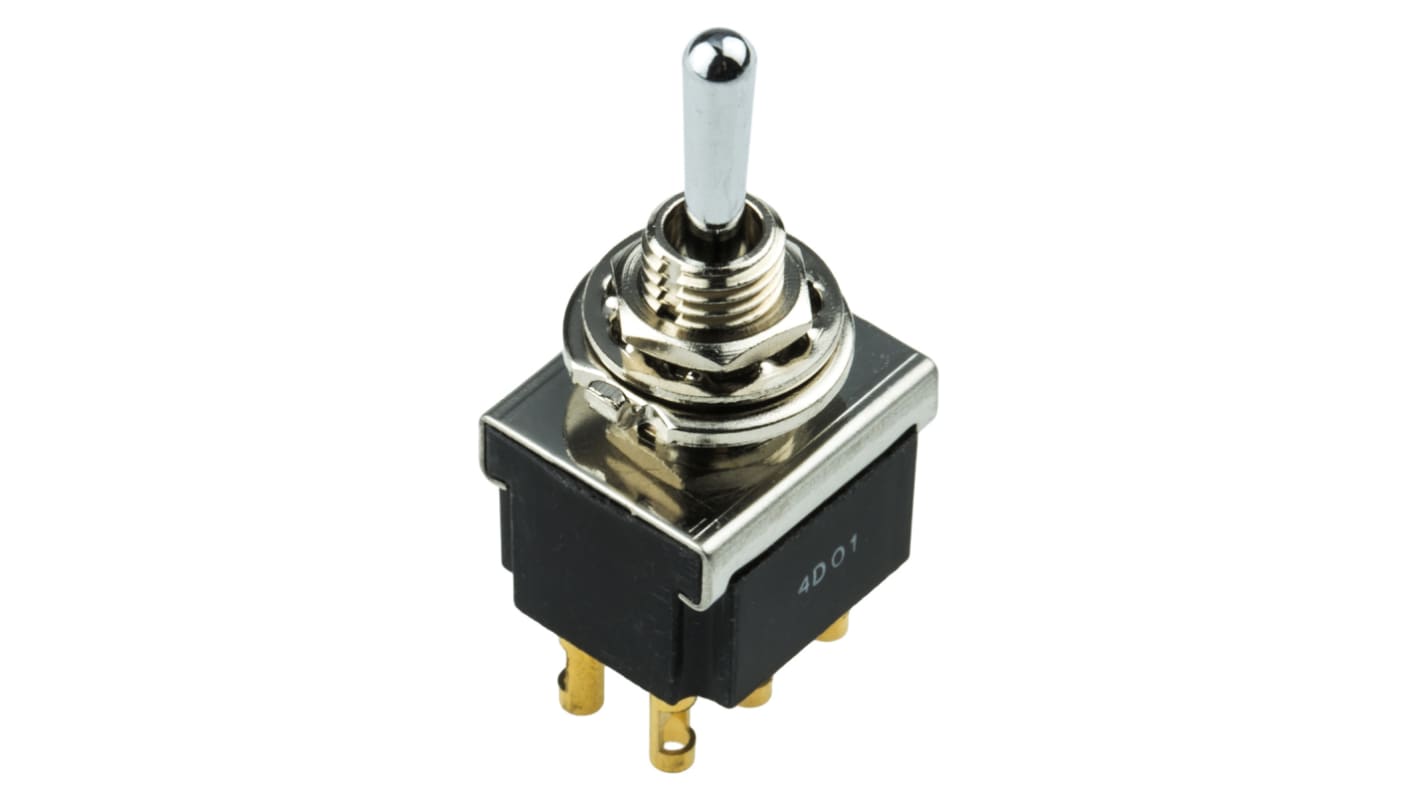

This image is representative of the product range

2 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

167 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each

Was MYR60.14

You pay

MYR57.13

Units	Per Unit
1 +	MYR57.13

RS Stock No.:: 317-178
Mfr. Part No.:: FTS0904
Manufacturer:: TE Connectivity

Technical data sheets

Datasheet FTS0904

Legislation and Compliance

Product Details

Toggle Switches, Min, Professional

Slow make-and-break action
Chrome-plated lever
Solder bucket terminals
A waterproof cover stock no. 321-212 is available (see accessories)
Silver contacts apart from stock nos. 317-077 317-106 317-099 317-112 317-128 and 317-083 which have gold contacts
0.4VA max load
Glass Filled Polyester case

Note

Care should be taken when soldering not to overheat the switch assembly
For biased switches '(on)' refers to momentary 'on' position

Approvals

CSA

Approvals

CSA

Specifications

Attribute	Value
Contact Configuration	Double Pole Double Throw (DPDT)
Switch Operation	(On)-Off-(On)
Contact Current Rating	6 A @ 250 V ac
Mounting Type	Panel Mount
Terminal Type	Solder
Panel Cut Out Diameter	6.2mm
Actuator Length	10.5mm
Actuator Material	Chrome Plated Brass
Voltage Rating	125 V ac, 250V ac
Contact Material	Fine Silver
Contact Resistance	0.01Ω
Minimum Operating Temperature	-20°C
Operating Temperature Range	-20 → +80°C
Standards Met	CSA Recognised, RoHS, UL 94V-0
Maximum Operating Temperature	+80°C
Mechanical Life	100000Operations
