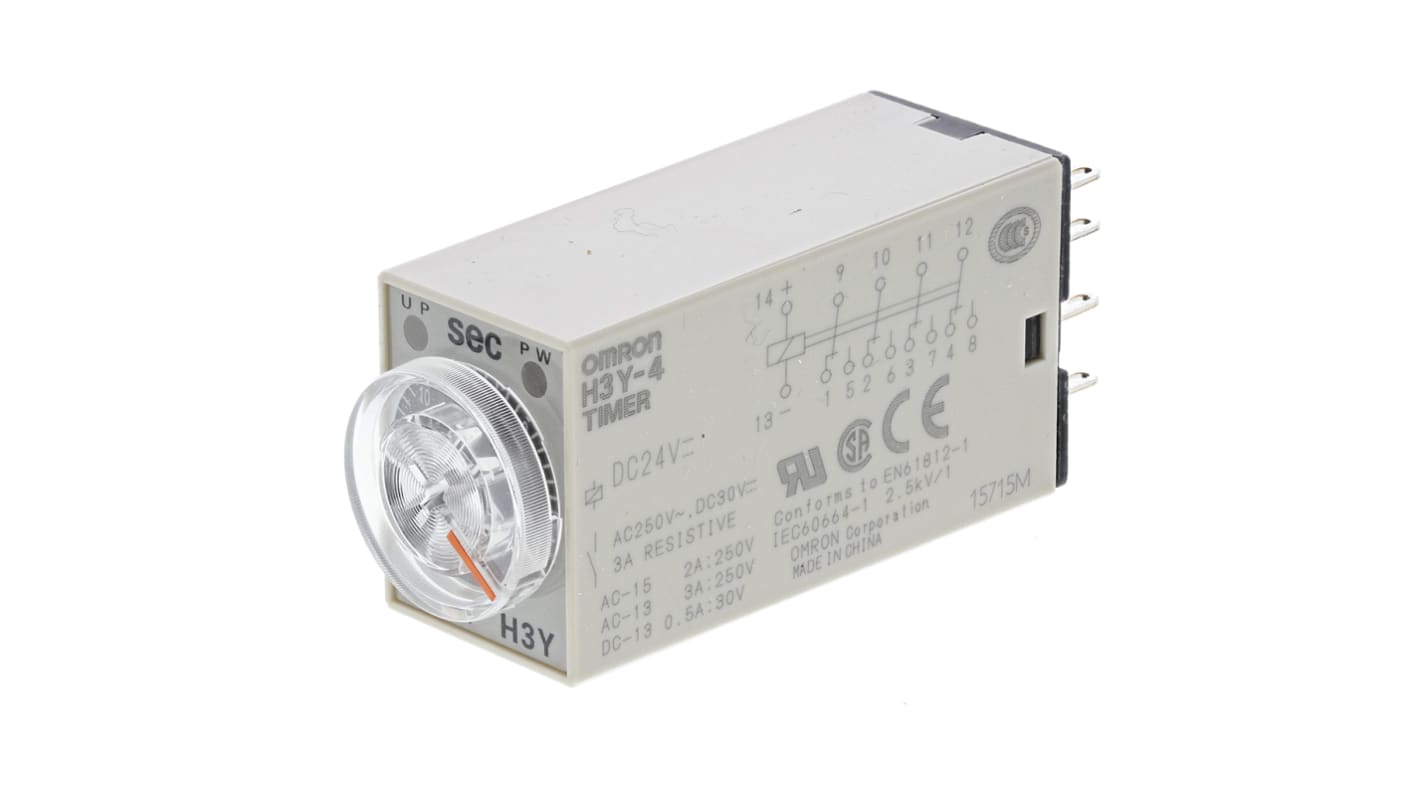

Omron ON Delay Single Timer Relay, 1 → 30 s, 4 Contacts, 4PDT, 24 V dc

  • RS Stock No. 340-409
  • Mfr. Part No. H3Y-4 DC24 30S ..
  • Manufacturer Omron
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Miniature - H3Y4

Function - 111
Pin compatible with MY power relay
Time settings adjustable with a screwdriver
All have 14 pins (rectangular format)

Standards

EN 50081-2, EN50082-2, VDE0435/P2021, VDE0110

Approvals

UL, CSA

//media.rs-online.com/t_line/LI341058-01.gif
Specifications
Attribute Value
Supply Voltage 24 V dc
Time Range 1 → 30 s
Mode of Operation ON Delay
Mounting Type DIN Rail, Surface Mount
Number of Timer Functions Single
Number of Contacts 4
Series H3Y-4
Time Increment Seconds
Power Supply External
Current Maximum 5 A
Maximum Voltage 250 V ac
Length 28mm
Minimum Operating Temperature -10°C
Depth 63mm
Maximum Operating Temperature +50°C
Switch Configuration 4PDT
Time Delay 0.1 s
Width 21.5mm
14 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 237.24
units
Per unit
1 - 24
MYR237.24
25 - 49
MYR231.33
50 +
MYR227.66
