Assemtech Any Position Vibration Sensor 25mA
- RS Stock No.:
- 361-5144
- Mfr. Part No.:
- MS24P/10
- Manufacturer:
- Assemtech
12 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
18 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR232.35
| Units | Per Unit |
| 1 - 24 | MYR232.35 |
| 25 - 49 | MYR226.02 |
| 50 + | MYR221.35 |
- RS Stock No.:
- 361-5144
- Mfr. Part No.:
- MS24P/10
- Manufacturer:
- Assemtech
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

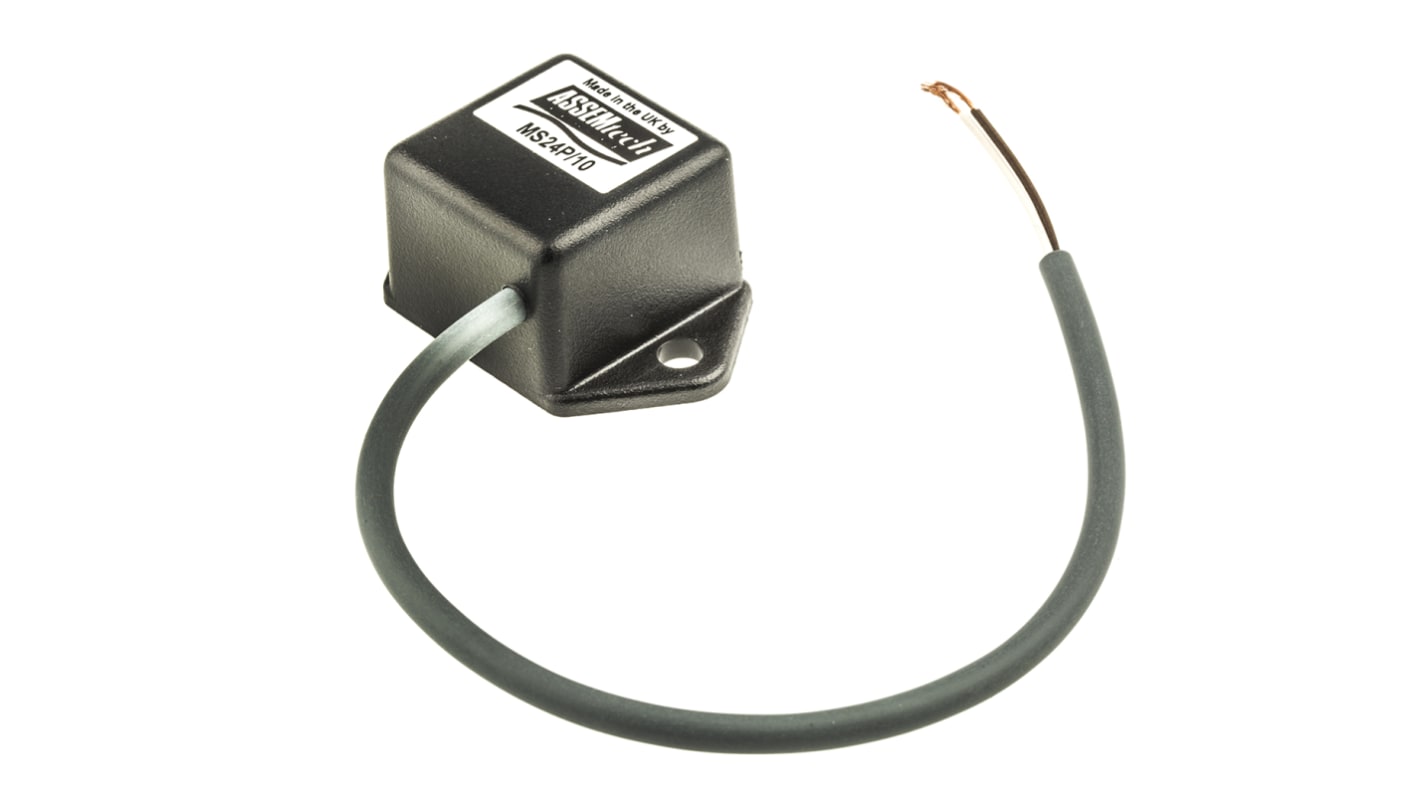

Movement / Vibration Sensor - Encapsulated
Non position sensitive
Gold plated contacts
IP65 ABS housing which is prewired with 100mm of 2 core PVC cable
Dimensions: L35 fc x W25.4 x D19mm
Gold plated contacts
IP65 ABS housing which is prewired with 100mm of 2 core PVC cable
Dimensions: L35 fc x W25.4 x D19mm
Specifications
Attribute | Value |
|---|---|
| Mounting Orientation | Any Position |
| Maximum Current | 25mA |
| Maximum DC Voltage | 24V |
| Terminal Type | Wire Lead |
| Length | 35mm |
| Width | 25.4mm |
| Depth | 19mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +70°C |
| Dimensions | 35 x 25.4 x 19mm |
