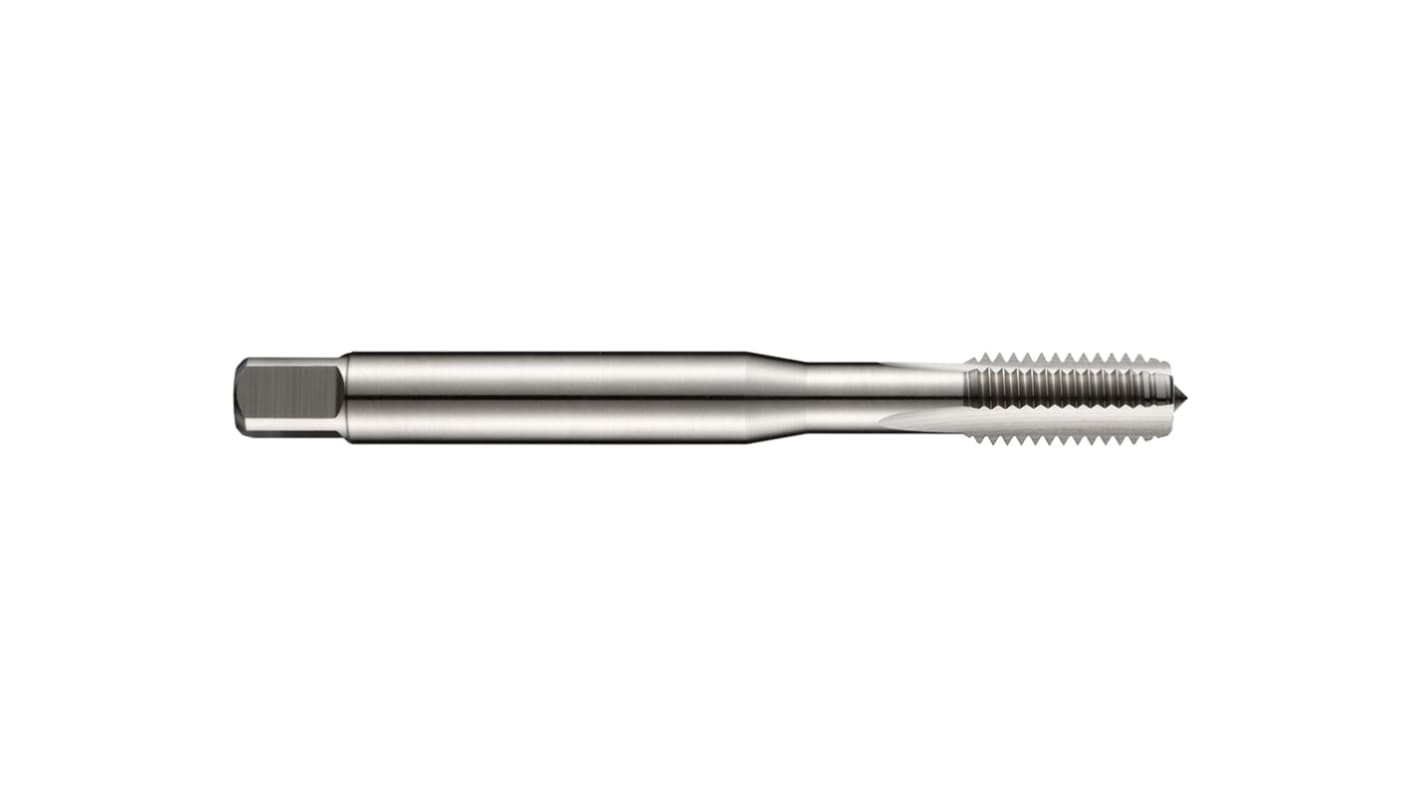

Dormer Threading Tap, M6 Thread, 1.0mm Pitch, Metric Standard, Machine Tap
- RS Stock No.:
- 299-9542
- Mfr. Part No.:
- E237-M6
- Manufacturer:
- Dormer
6 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR156.73
| Units | Per Unit |
| 1 + | MYR156.73 |
- RS Stock No.:
- 299-9542
- Mfr. Part No.:
- E237-M6
- Manufacturer:
- Dormer
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- IT
Product Details
Cobalt metric pitch left-hand threaded machine tap bits E237
Range of cobalt metric pitch left-hand threaded machine tap bits.
These tap bits have a short I/P of
2 threads.
The tap bit tolerance class is 6H, the cutting angle is 10° and the tap flutes are straight. The cut is left-handed, and the stem is reinforced.
These high-quality tap bits are ideal for tapping in blind or through-holes.
These tap bits have a short I/P of
2 threads.
The tap bit tolerance class is 6H, the cutting angle is 10° and the tap flutes are straight. The cut is left-handed, and the stem is reinforced.
These high-quality tap bits are ideal for tapping in blind or through-holes.
Standard: DIN 371
Rolled Flute Taps
Bright finish fluteless taps; for use on copper, aluminium, magnesium, brass, zinc etc.
Flash chrome finish fluteless taps; for use on steel up to 850N/mm2 tensile strength, free matching and austenitic stainless steel
Made to ISO529 standard for tapping blind and through holes in a wide range of ductile materials
Smooth non-cutting action produces greater thread formed strength, higher life expectancy and increased tapping speeds especially where excessive tension occurs
Flash chrome finish fluteless taps; for use on steel up to 850N/mm2 tensile strength, free matching and austenitic stainless steel
Made to ISO529 standard for tapping blind and through holes in a wide range of ductile materials
Smooth non-cutting action produces greater thread formed strength, higher life expectancy and increased tapping speeds especially where excessive tension occurs
Specifications
Attribute | Value |
|---|---|
| Set Type | Threading Tap |
| Thread Size | M6 |
| Type | Straight Flute |
| Pitch | 1.0mm |
| Thread Standard | Metric |
| Thread Direction | Left Hand |
| Overall Length | 80 mm |
| Number of Pieces | 1 |
| Hand/Machine Tap | Machine Tap |
| Material | HSS-E |
| Shank Diameter | 6 mm |
| Class of Fit | 6H |
