RS PRO Type J Thermocouple 6mm Diameter → +350°C
- RS Stock No.:
- 131-4744
- Manufacturer:
- RS PRO
58 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR182.64
| Units | Per Unit |
| 1 - 4 | MYR182.64 |
| 5 - 24 | MYR177.54 |
| 25 + | MYR146.12 |
- RS Stock No.:
- 131-4744
- Manufacturer:
- RS PRO
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

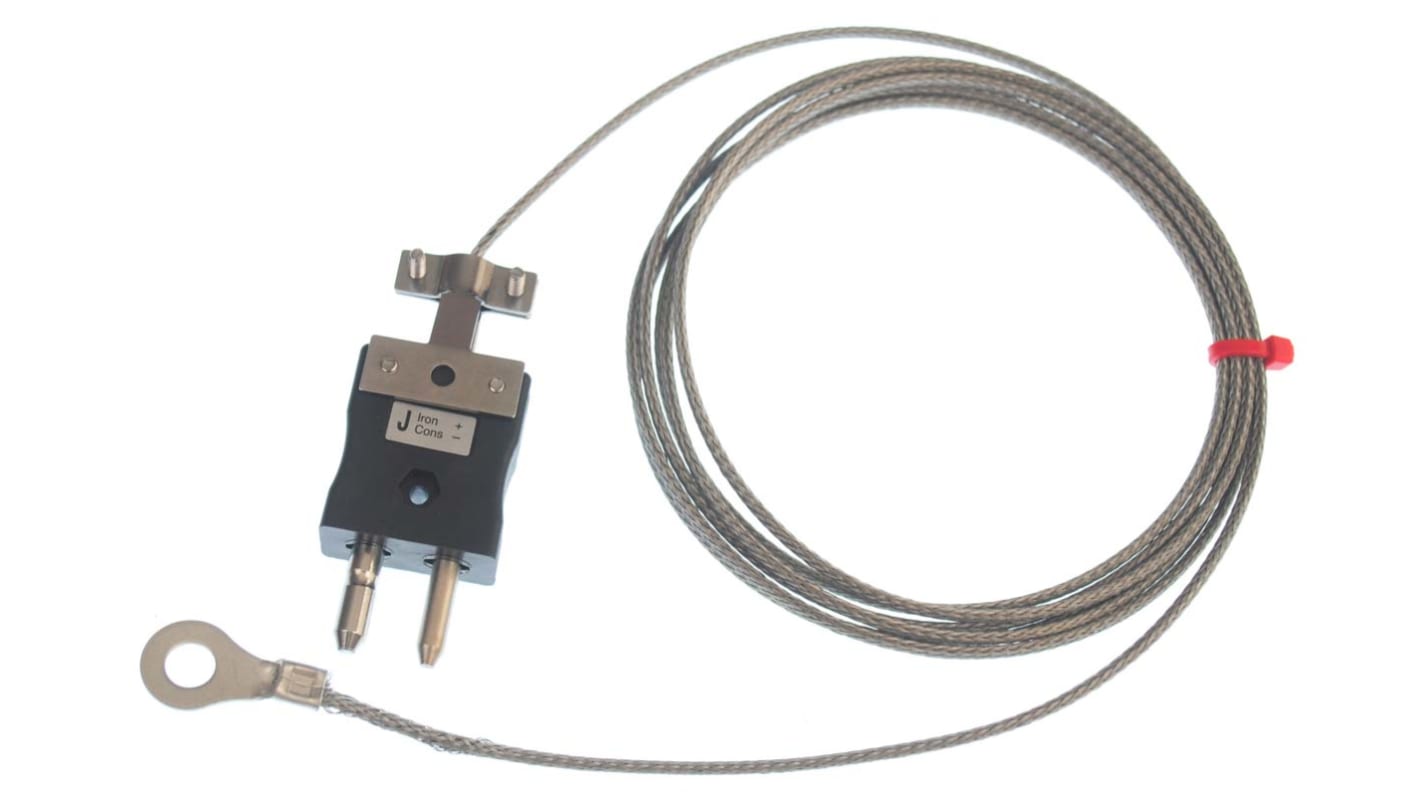

Type K or J Washer Thermocouple With Standard Plug
Thermocouple housed in a washer eyelet
Grounded tip for quick response
Washer with 6mm clearance hole
2 Metre glassfibre insulated, stainless steel over braided extension lead,7/0.2 mm
Fitted with cable clamps and standard thermocouple plug
Good temperature resistance but not suitable where fluids are present
Tolerance Class 2 to IEC-584
Insulation rating -60°C to 350°C (short periods up to 400°C)
Colour code (cores & jacket) to IEC-584-3
Grounded tip for quick response
Washer with 6mm clearance hole
2 Metre glassfibre insulated, stainless steel over braided extension lead,7/0.2 mm
Fitted with cable clamps and standard thermocouple plug
Good temperature resistance but not suitable where fluids are present
Tolerance Class 2 to IEC-584
Insulation rating -60°C to 350°C (short periods up to 400°C)
Colour code (cores & jacket) to IEC-584-3
Specifications
Attribute | Value |
|---|---|
| Thermocouple Type | J |
| Probe Diameter | 6mm |
| Maximum Temperature Sensed | +350°C |
| Termination Type | Standard Plug |
| Cable Length | 2m |
| Standards Met | IEC |
