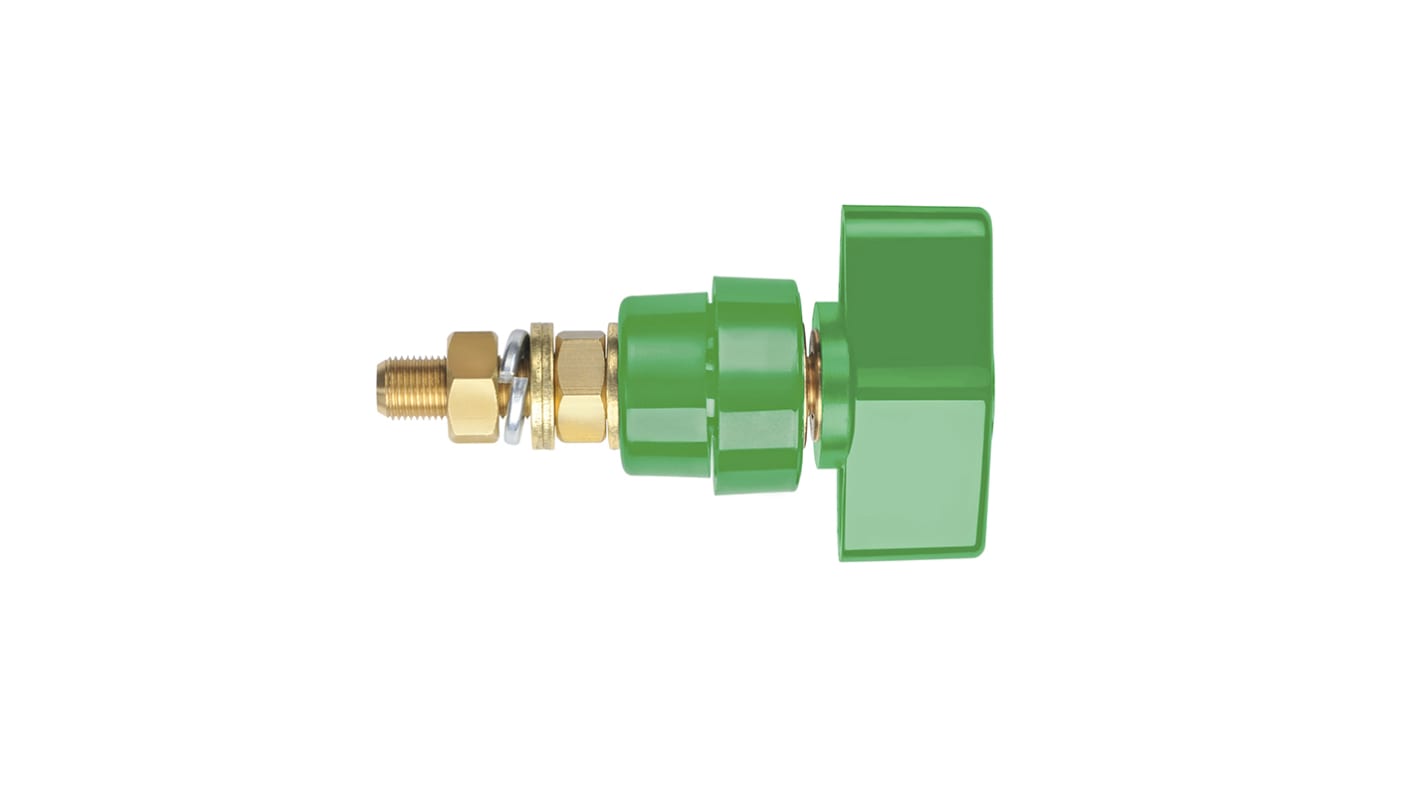

Schutzinger 4mm Green Terminal Post, 1kV, 100A, M8 x 0.75 Thread

  • RS Stock No. 179-6906
  • Mfr. Part No. POL 102 L / GN
  • Manufacturer Schutzinger
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Versions with Undetachable or Unscrewable Toogle Head
High Current-Carrying Capacity
With Insulating Rings

Terminal Post
With Captive Toggle Head
Max. Conducting Wall Thickness 4 Mm

Specifications
Attribute Value
Colour Green
Hole Diameter 4mm
Current Rating 100A
Thread Size M8 x 0.75
Voltage Rating 1kV
Insulated Yes
Body Material Brass
Maximum Panel Thickness 4mm
Height Above Panel 43mm
40 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 121.00
units
Per unit
1 - 9
MYR121.00
10 - 49
MYR112.60
50 - 99
MYR103.00
100 - 199
MYR96.80
200 +
MYR93.10
