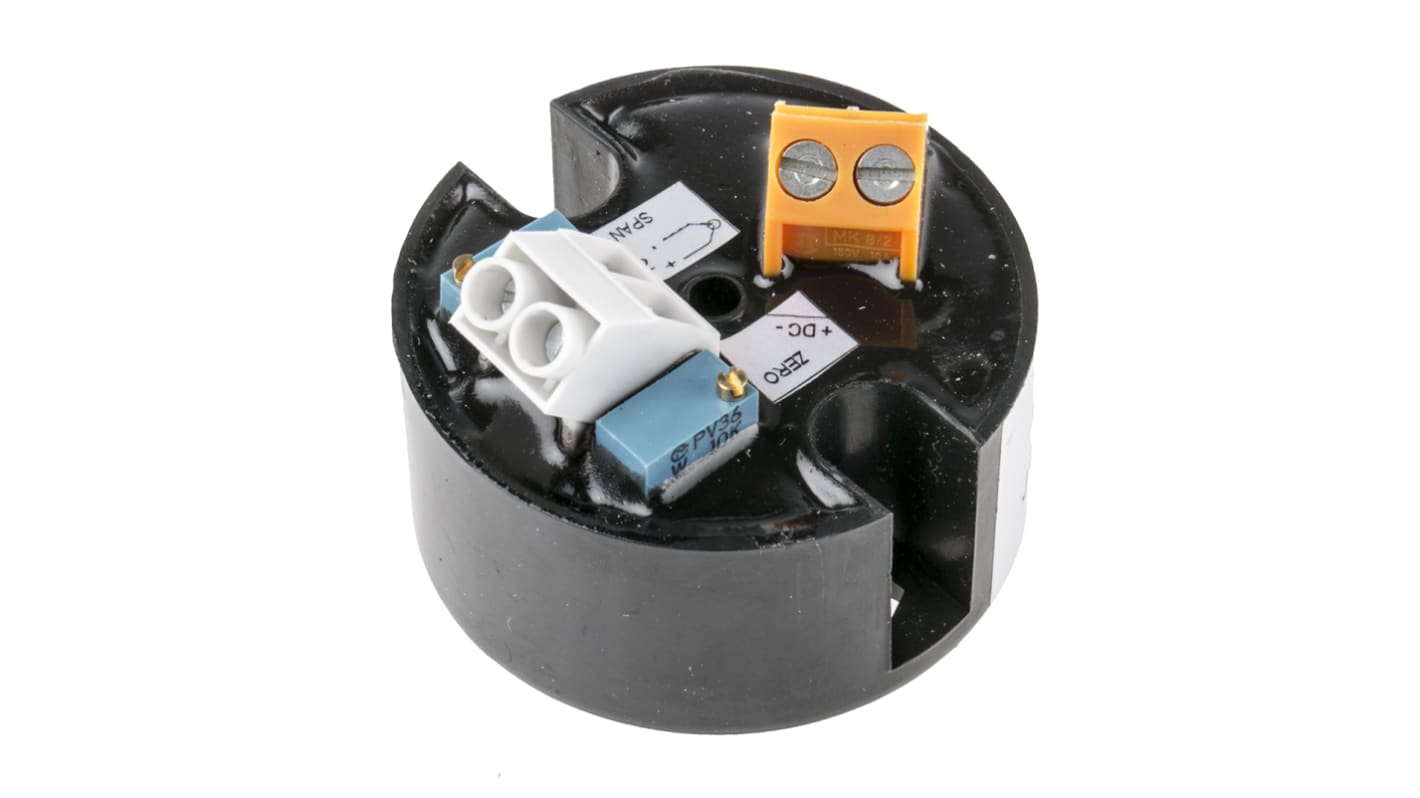

Thermocouple Type J Temperature Transmitter, 12 36 V dc, 0 +300 °C

  • RS Stock No. 185-2341
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

Head Mounting

Designed for standard terminal head mounting to meet IEC801 1987 electromagnetic compatibility and have high immunity to RFI (to EMC1992)
Transmitter easily ranged and calibrated
Upscale sensor break detection
Wide range of span adjustment
Operating Temperature Range: 0 to +100°C
Dimensions: H32mm x Dia 42mm

Note

Initial temperature range refers to the factory - set temperature range for each product. The range may be re-configured to suit the individual requirements specified by the user.

Specifications
Attribute Value
Input Type Thermocouple Type J
Supply Voltage 12 36 V dc
Diameter 42 mm
Minimum Operating Temperature 0°C
Maximum Operating Temperature +300°C
Series RS PRO
Depth 32mm
31 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 602.13
units
Per unit
1 +
MYR602.13
