Units	Per Unit	Per Bag**
10 - 240	MYR1.98	MYR19.80
250 - 490	MYR1.882	MYR18.82
500 +	MYR1.788	MYR17.88

Select all	Attribute	Value
	Brand	C & K
	Contact Configuration	SPST
	Terminal Type	Solder Tab
	Switch Operation	Momentary
	Actuator Length	5.2mm
	Actuator Type	Button
	Length	6.2mm
	Width	6.2mm
	Dimensions	6.2 x 6.2 x 3.5mm
	Mounting Type	Surface Mount
	Contact Current Rating	50 mA
	IP Rating	IP67
	Operating Force	170 g
	Height	3.5mm
	Voltage Rating	32V dc
	Minimum Operating Temperature	-40°C
	Operating Temperature Range	-40 → +85°C
	Maximum Operating Temperature	+85°C
	Mechanical Life	300000Operations
	Contact Material	Silver

	Select all
	Brand C & K
	Contact Configuration SPST
	Terminal Type Solder Tab
	Switch Operation Momentary
	Actuator Length 5.2mm
	Actuator Type Button
	Length 6.2mm
	Width 6.2mm
	Dimensions 6.2 x 6.2 x 3.5mm
	Mounting Type Surface Mount
	Contact Current Rating 50 mA
	IP Rating IP67
	Operating Force 170 g
	Height 3.5mm
	Voltage Rating 32V dc
	Minimum Operating Temperature -40°C
	Operating Temperature Range -40 → +85°C
	Maximum Operating Temperature +85°C
	Mechanical Life 300000Operations
	Contact Material Silver

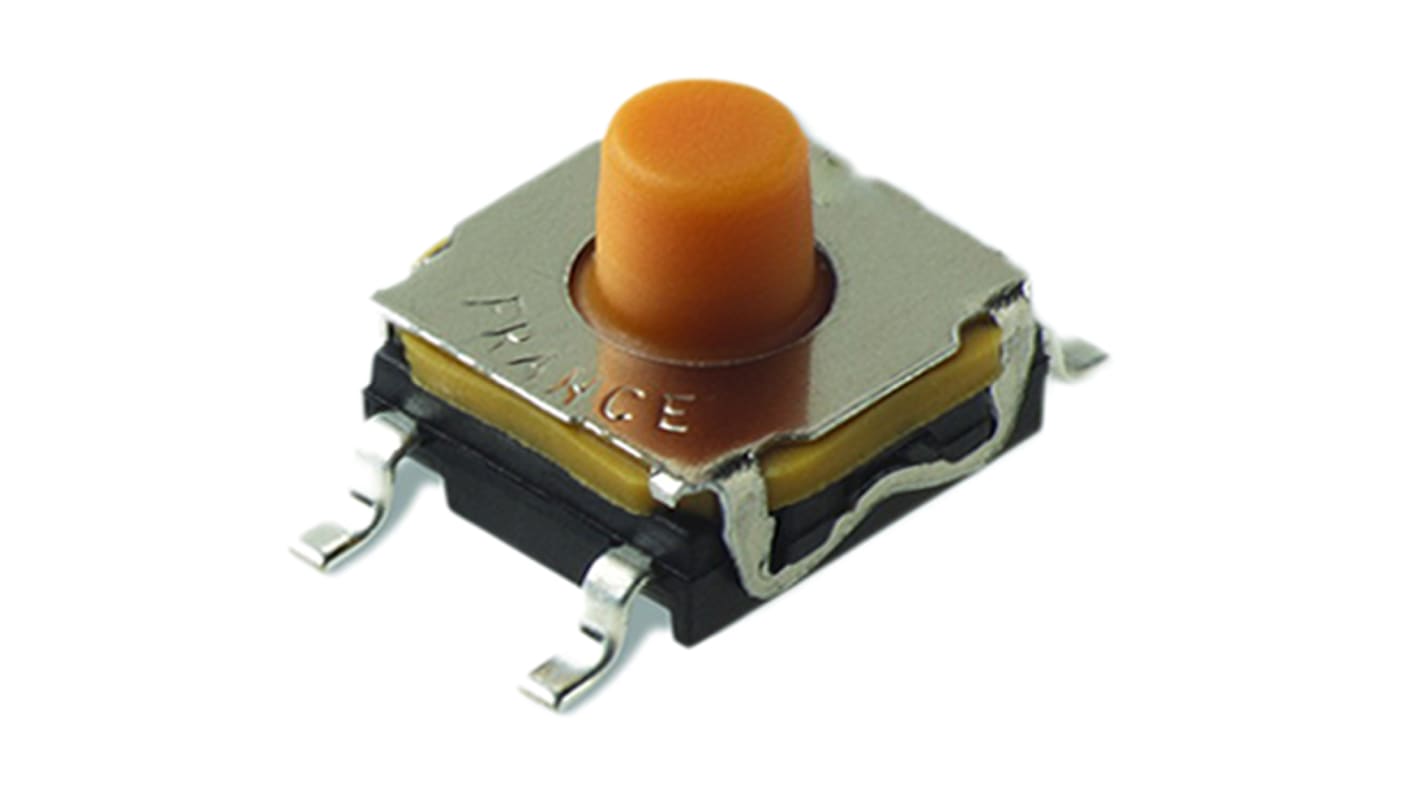

C & K IP67 Button Tactile Switch, SPST 50 mA 5.2mm Surface Mount

FREE delivery for orders over MYR500.00

KSC Series Tactile Switches

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
