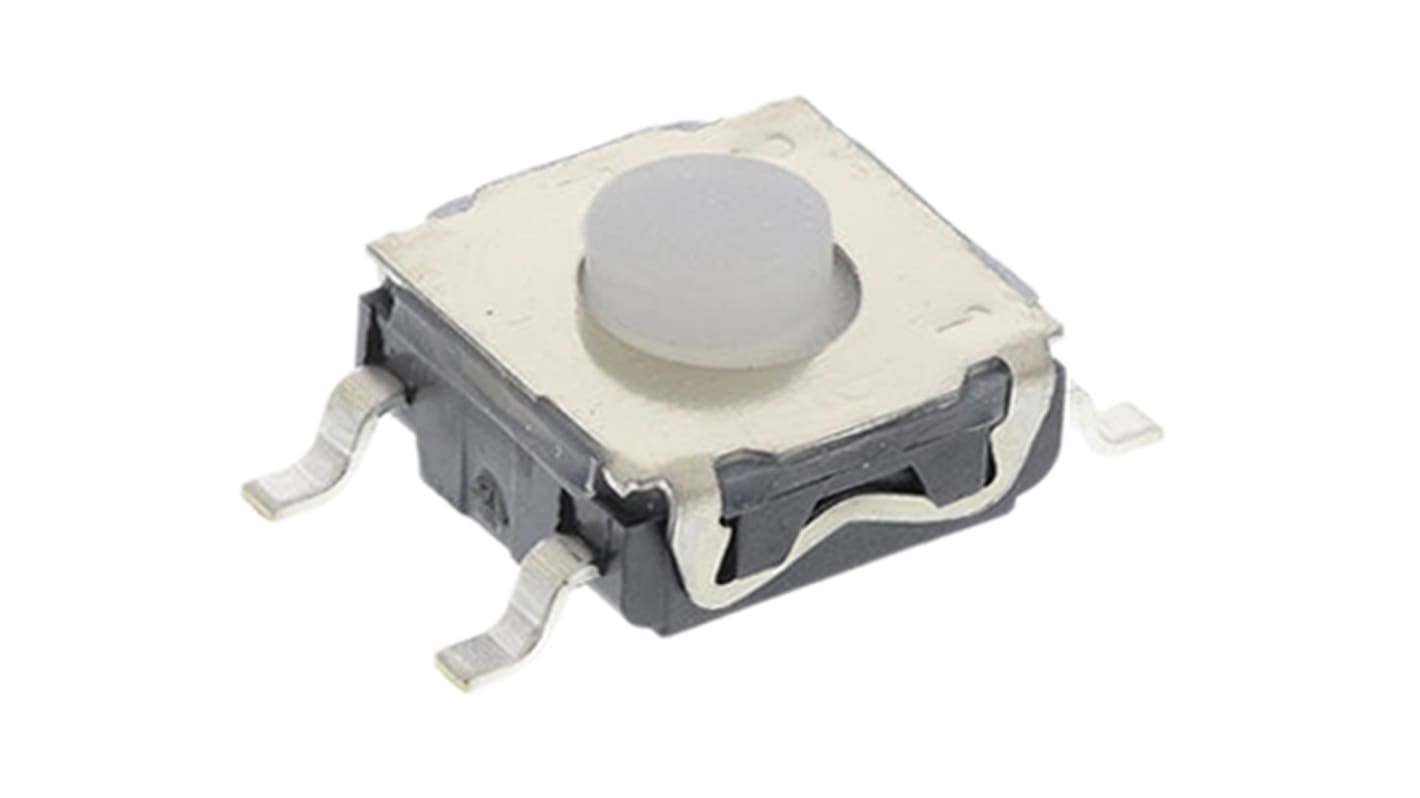

IP67 Tactile Switch, Single Pole Single Throw (SPST) 50 mA 0.6mm Surface Mount

  • RS Stock No. 894-9183
  • Mfr. Part No. KSC241G LFS
  • Manufacturer C & K
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

KSC Series Tactile Switches

The KSC Series tactile switches have been designed for surface mount applications with a choice of either J or gull wing terminals. Potential applications include automotive, cellular phones, industrial electronics, network infrastructure, IT and elevators. They are sealed to IP67 and have a single pole, normally open contact with a momentary action.

Life; 1 million cycles
Positive tactile feeling
Available in 1.6N and 3N actuator forces
J bend or Gullwing terminations
IP67
Long life Silver contacts
2 Actuator lengths; 3.5mm & 5.2mm
Momentary action

Tactile

Specifications
Attribute Value
Contact Configuration Single Pole Single Throw (SPST)
Terminal Type Gull Wing
Switch Operation Momentary
Actuator Length 0.6mm
Actuator Type Tactile
Length 6.2mm
Width 6.2mm
Dimensions 6.2 x 6.2 x 3.5mm
Mounting Type Surface Mount
Contact Current Rating 50 mA
IP Rating IP67
Operating Force 3.5±0.9 N
Maximum Operating Temperature +85°C
Mechanical Life 300000Operations
Voltage Rating 32V dc
Operating Temperature Range -40 → +85°C
Contact Material Silver
Minimum Operating Temperature -40°C
Height 3.5mm
Temporarily out of stock - back order for despatch 05/08/2020, delivery within 4 working days from despatch date
Price 1 Reel of 2000
MYR 2,260.00
Reel(s)
Per Reel
Per unit*
1 - 1
MYR2,260.00
MYR1.13
2 - 4
MYR2,079.52
MYR1.04
5 +
MYR1,900.59
MYR0.95
*price indicative
