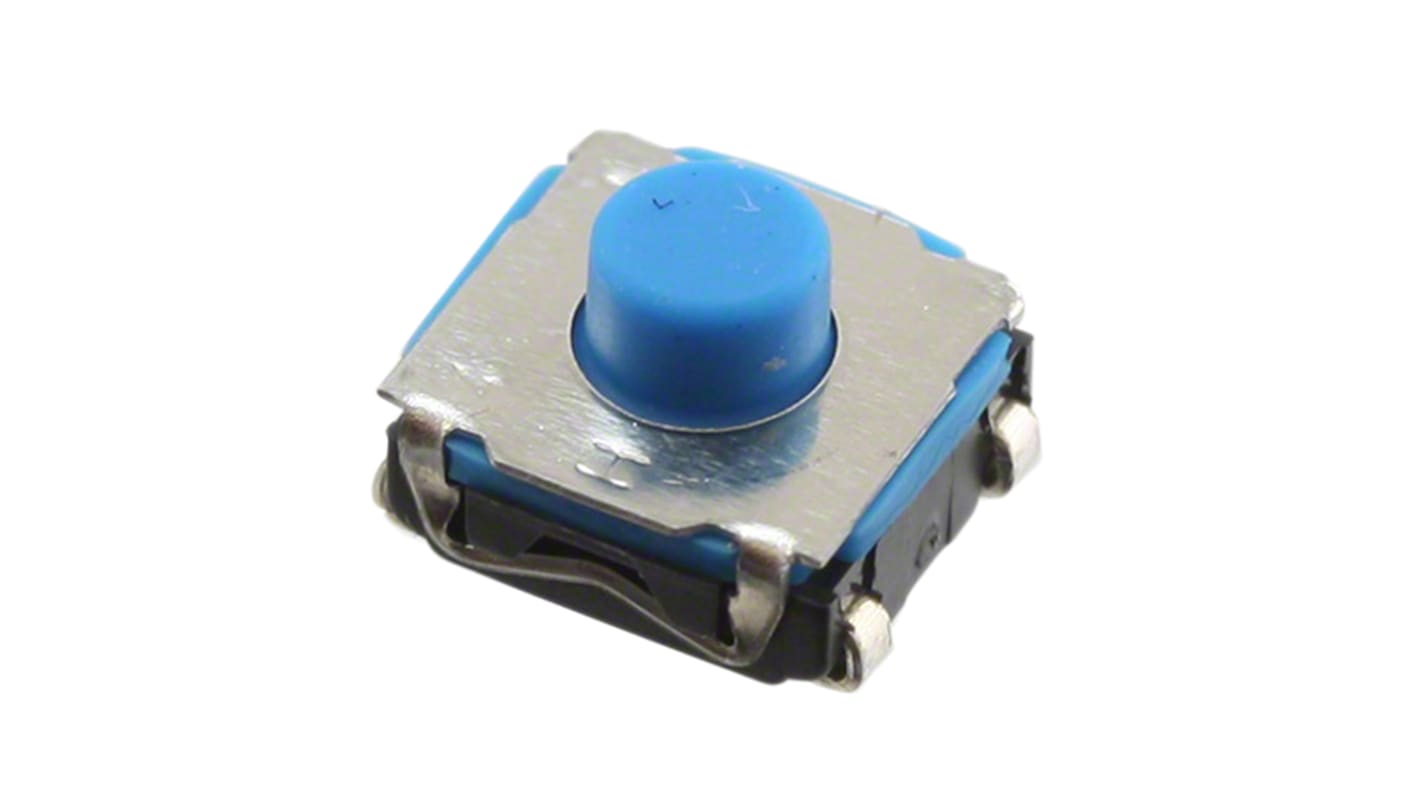

IP67 Tactile Switch, Single Pole Single Throw (SPST) 50 mA 1.4mm Surface Mount
- RS Stock No. 894-9041
- Mfr. Part No. KSC741J LFS
- Manufacturer C & K
Technical data sheets
Legislation and Compliance
COO (Country of Origin): FR
Product Details
KSC Series Tactile Switches
The KSC Series tactile switches have been designed for surface mount applications with a choice of either J or gull wing terminals. Potential applications include automotive, cellular phones, industrial electronics, network infrastructure, IT and elevators. They are sealed to IP67 and have a single pole, normally open contact with a momentary action.
Life; 1 million cycles
Positive tactile feeling
Available in 1.6N and 3N actuator forces
J bend or Gullwing terminations
IP67
Long life Silver contacts
2 Actuator lengths; 3.5mm & 5.2mm
Momentary action
Tactile
Specifications
| Attribute | Value |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Terminal Type | J Bend |
| Switch Operation | Momentary |
| Actuator Length | 1.4mm |
| Actuator Type | Tactile |
| Length | 6.2mm |
| Width | 6.2mm |
| Dimensions | 6.2 x 6.2 x 4.3mm |
| Mounting Type | Surface Mount |
| Contact Current Rating | 50 mA |
| IP Rating | IP67 |
| Operating Force | 3.9±1 N |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
| Contact Material | Silver |
| Operating Temperature Range | -40 → +85°C |
| Mechanical Life | 300000Operations |
| Voltage Rating | 32V dc |
| Height | 4.3mm |
2120 In Global stock for delivery within 4 - 6 working days
Price Each (In a Bag of 10)
MYR
2.22
units
Per unit
Per Bag*
10 - 490
MYR2.22
MYR22.20
500 - 990
MYR2.10
MYR21.00
1000 - 1990
MYR1.942
MYR19.42
2000 - 4990
MYR1.835
MYR18.35
5000 +
MYR1.728
MYR17.28
*price indicative
