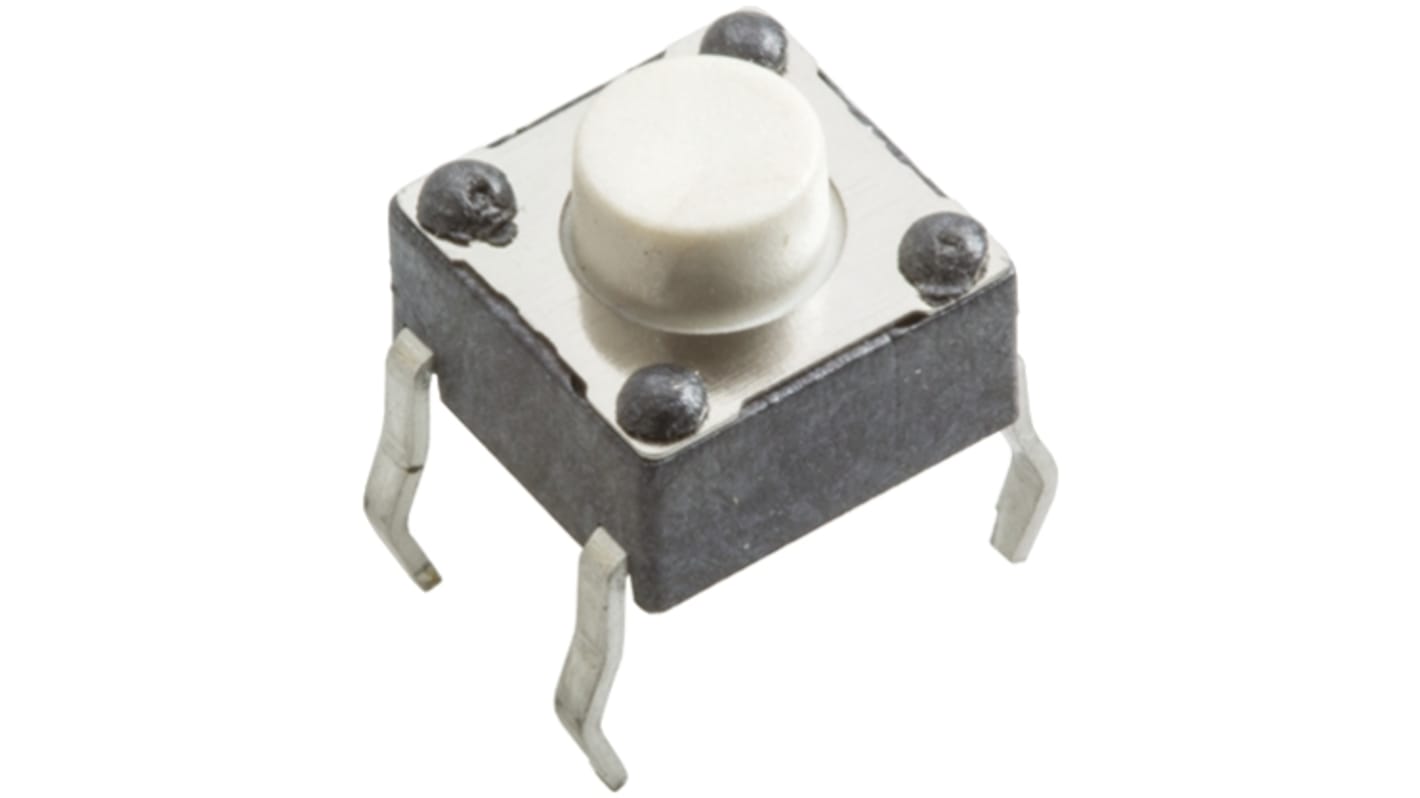

White Tactile Switch, SPST 50 mA @ 12 V dc 1.6mm Through Hole
- RS Stock No.:
- 785-6248
- Mfr. Part No.:
- 430156050726
- Manufacturer:
- Wurth Elektronik
Temporarily out of stock - back order for despatch 24/10/2024, delivery within 4 working days from despatch date
Added
Price Each
MYR2.66
| Units | Per Unit |
| 1 + | MYR2.66 |
- RS Stock No.:
- 785-6248
- Mfr. Part No.:
- 430156050726
- Manufacturer:
- Wurth Elektronik
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Tactile Switch Through Hole WS-TST
Stainless Steel contacts with silver cladding
Wave soldering: 260°C 10 seconds. Max
Silver plated through hole brass terminals
Operating temperature range -40°C to 85°C
Wave soldering: 260°C 10 seconds. Max
Silver plated through hole brass terminals
Operating temperature range -40°C to 85°C
Tactile
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Terminal Type | Solder |
| Switch Operation | Momentary |
| Actuator Length | 1.6mm |
| Actuator Colour | White |
| Actuator Type | Tactile |
| Length | 6.5mm |
| Width | 6.2mm |
| Dimensions | 6.2 x 6.5mm |
| Illuminated | No |
| Mounting Type | Through Hole |
| Contact Current Rating | 50 mA @ 12 V dc |
| Height | 5mm |
| Operating Force | 260 g |
| Voltage Rating | 12V dc |
| Maximum Operating Temperature | +85°C |
| Mechanical Life | 200000Cycles |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +85°C |
| Contact Material | Stainless Steel |
