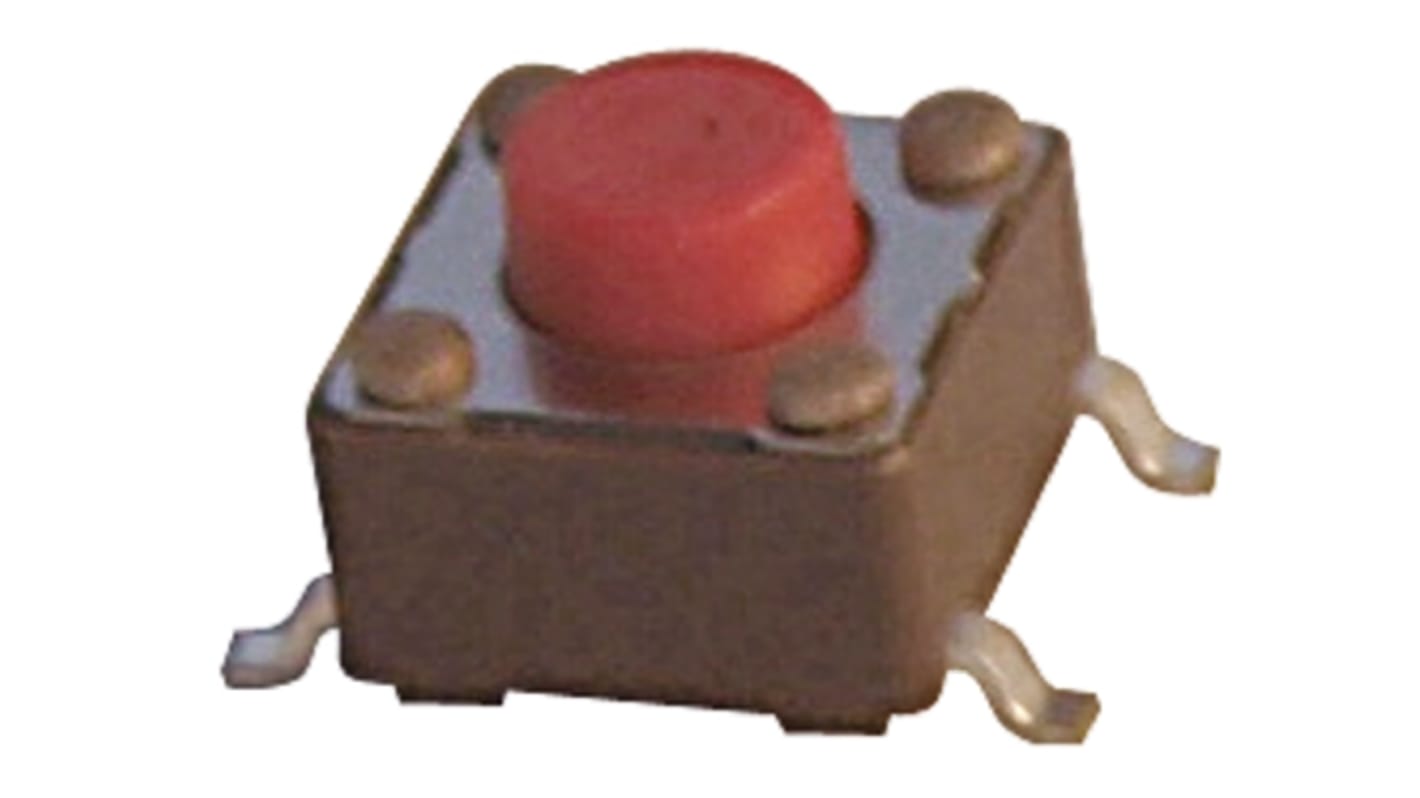

Red Stem Tactile Switch, SPST 50 mA @ 12 V dc 5mm Surface Mount
- RS Stock No.:
- 765-1062
- Mfr. Part No.:
- DTSM62RV
- Manufacturer:
- APEM
154 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Tube of 77)
MYR0.889
| Units | Per Unit | Per Tube* |
| 77 - 308 | MYR0.889 | MYR68.453 |
| 385 - 1848 | MYR0.862 | MYR66.374 |
| 1925 - 3773 | MYR0.836 | MYR64.372 |
| 3850 - 7623 | MYR0.818 | MYR62.986 |
| 7700 + | MYR0.80 | MYR61.60 |
| *price indicative | ||
- RS Stock No.:
- 765-1062
- Mfr. Part No.:
- DTSM62RV
- Manufacturer:
- APEM
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Apem DTSM-6 Series Tact Switches
Apem DTSM-6 series tactile or tact SPST switches are designed to be used with small currents and feature a sharp click feel and positive tactile feedback. A small movement distance on these tact switches mean that the user experiences a distinct sensation when the switch ’clicks’ into place. This series of Apem tact switches have SMT terminals, low contact resistance and high reliability. The ultra-miniature and lightweight structure of this series of tact switches ensures suitability of high density mounting.
Vertical operating direction
Low contact resistance: 100mΩ
Insulation resistance >100MΩ at 500Vdc
Positive tactile feedback
Long life
Low contact resistance: 100mΩ
Insulation resistance >100MΩ at 500Vdc
Positive tactile feedback
Long life
Tactile
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Terminal Type | Solder, Tab |
| Switch Operation | Momentary |
| Actuator Length | 5mm |
| Actuator Colour | Red |
| Actuator Type | Stem |
| Length | 6mm |
| Width | 6mm |
| Dimensions | 6 x 6mm |
| Mounting Type | Surface Mount |
| Contact Current Rating | 50 mA @ 12 V dc |
| Operating Force | 260 gf |
| Height | 5mm |
| Contact Material | Phosphor Bronze |
| Minimum Operating Temperature | -25°C |
| Operating Temperature Range | -25 → +70°C |
| Maximum Operating Temperature | +70°C |
