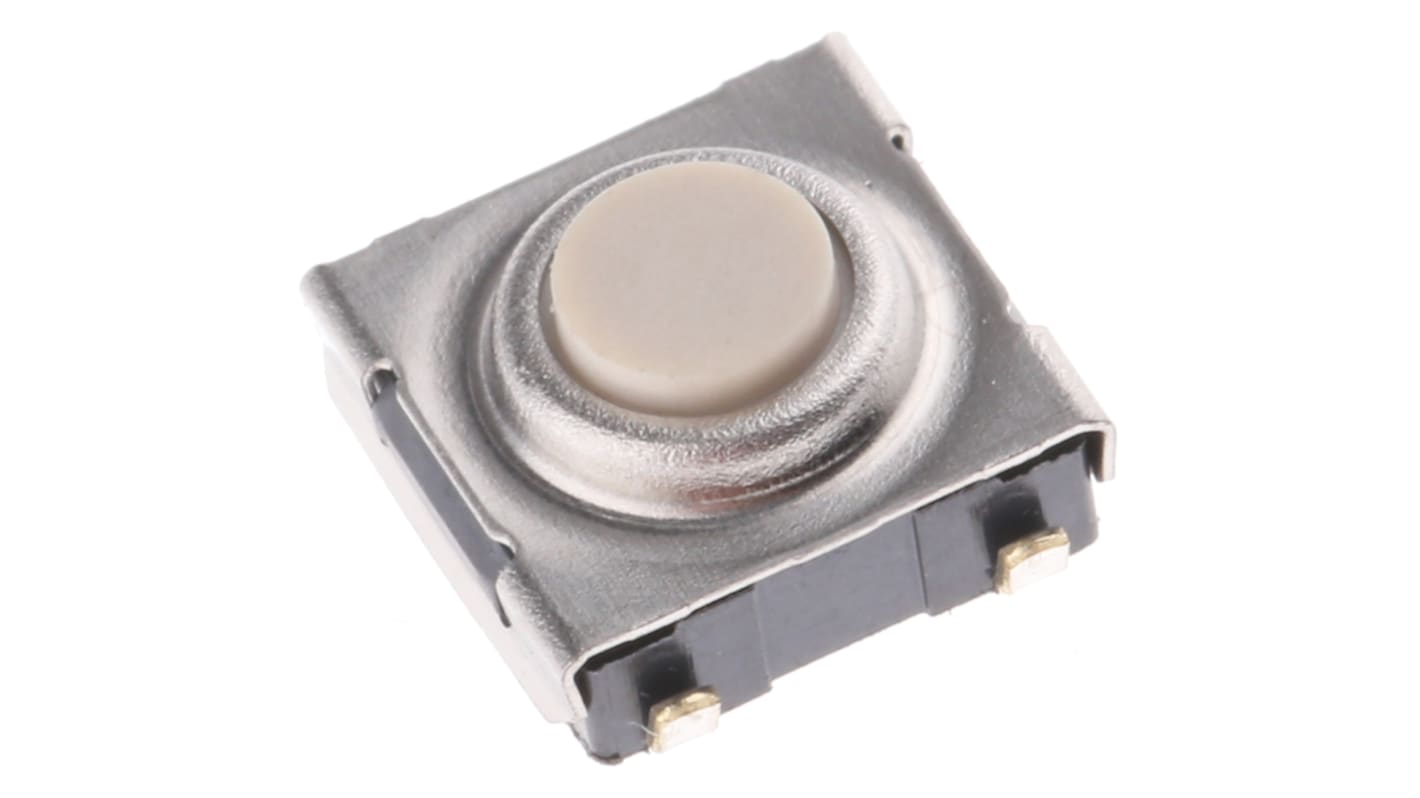

Button Tactile Switch, SPST 50 mA @ 24 V dc Through Hole
- RS Stock No.:
- 682-1415
- Mfr. Part No.:
- B3SN-3012P
- Manufacturer:
- Omron
Temporarily out of stock - back order for despatch 03/06/2025, delivery within 4 working days from despatch date
Price Each (In a Pack of 5)
MYR4.91
| Units | Per Unit | Per Pack* |
| 5 - 120 | MYR4.91 | MYR24.55 |
| 125 - 495 | MYR4.804 | MYR24.02 |
| 500 - 1245 | MYR4.658 | MYR23.29 |
| 1250 - 2495 | MYR4.546 | MYR22.73 |
| 2500 + | MYR4.44 | MYR22.20 |
| *price indicative | ||
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 682-1415
- Mfr. Part No.:
- B3SN-3012P
- Manufacturer:
- Omron
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Tactile Switches Omron B3SN
Slim, sealed switches with surface-mounting terminals
Slim profile helps to downsize products
Available with ground terminals for protection against static electricity
Sealed construction conforming to IP67 (IEC-60529)
Available with ground terminals for protection against static electricity
Sealed construction conforming to IP67 (IEC-60529)
Note
Manufacturers part numbers with the P suffix are supplied on tape reel or strip and part numbers without the P suffix are bag quantity
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Tactile
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPST-NO |
| Terminal Type | Surface Mount |
| Actuator Type | Button |
| Length | 6.5mm |
| Width | 6mm |
| Dimensions | 6.50 x 6 x 3.10mm |
| Mounting Type | Through Hole |
| Contact Current Rating | 50 mA @ 24 V dc |
| Height | 3.1mm |
| Operating Force | 1.57 N |
| Mechanical Life | 50000Operations |
| Operating Temperature Range | -25 → +70°C |
| Minimum Operating Temperature | -25°C |
| Contact Material | Gold Plated |
| Maximum Operating Temperature | +70°C |
