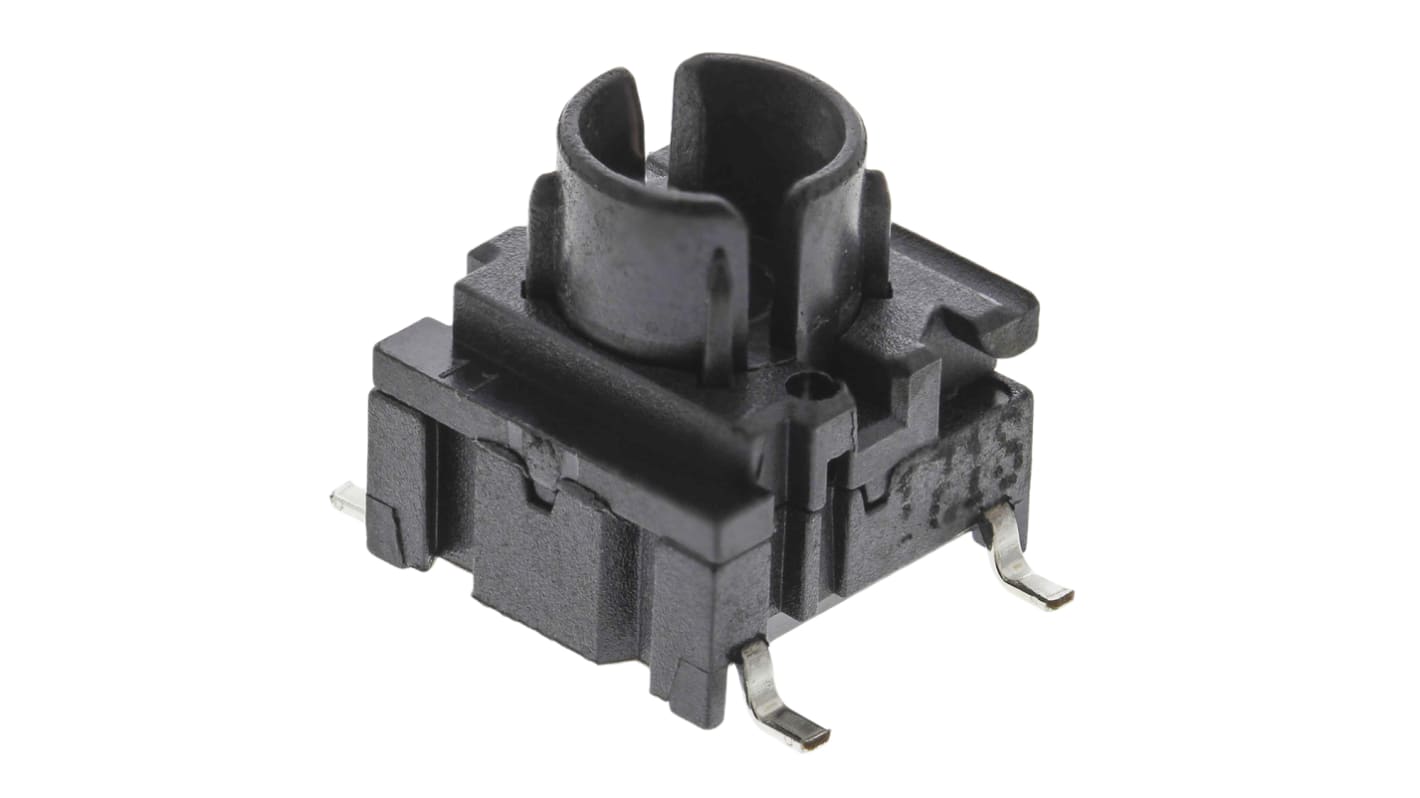

IP67 Plunger Tactile Switch, SPST 50 mA @ 24 V dc
- RS Stock No.:
- 495-2270
- Mfr. Part No.:
- 3FSH9
- Manufacturer:
- MEC
In Global stock for delivery within 4 - 6 working days
Price Each
MYR10.20
| Units | Per Unit |
| 1 - 24 | MYR10.20 |
| 25 - 99 | MYR9.78 |
| 100 - 249 | MYR9.11 |
| 250 - 499 | MYR8.39 |
| 500 + | MYR7.62 |
- RS Stock No.:
- 495-2270
- Mfr. Part No.:
- 3FSH9
- Manufacturer:
- MEC
Legislation and Compliance
- COO (Country of Origin):
- DK
Product Details
Multimec® 3F Switches
SPNO momentary action
Sealed to IP67
Sealed to IP67
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Terminal Type | Surface Mount |
| Switch Operation | Momentary |
| Actuator Type | Plunger |
| Length | 14mm |
| Width | 7.62mm |
| Dimensions | 14 x 7.62mm |
| Illuminated | No |
| Contact Current Rating | 50 mA @ 24 V dc |
| IP Rating | IP67 |
| Operating Force | 2.5 N |
| Height | 10.4mm |
| Contact Material | Gold, Silver |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +160°C |
| Mechanical Life | 10000000Operations |
| Operating Temperature Range | -40 → +160°C |
