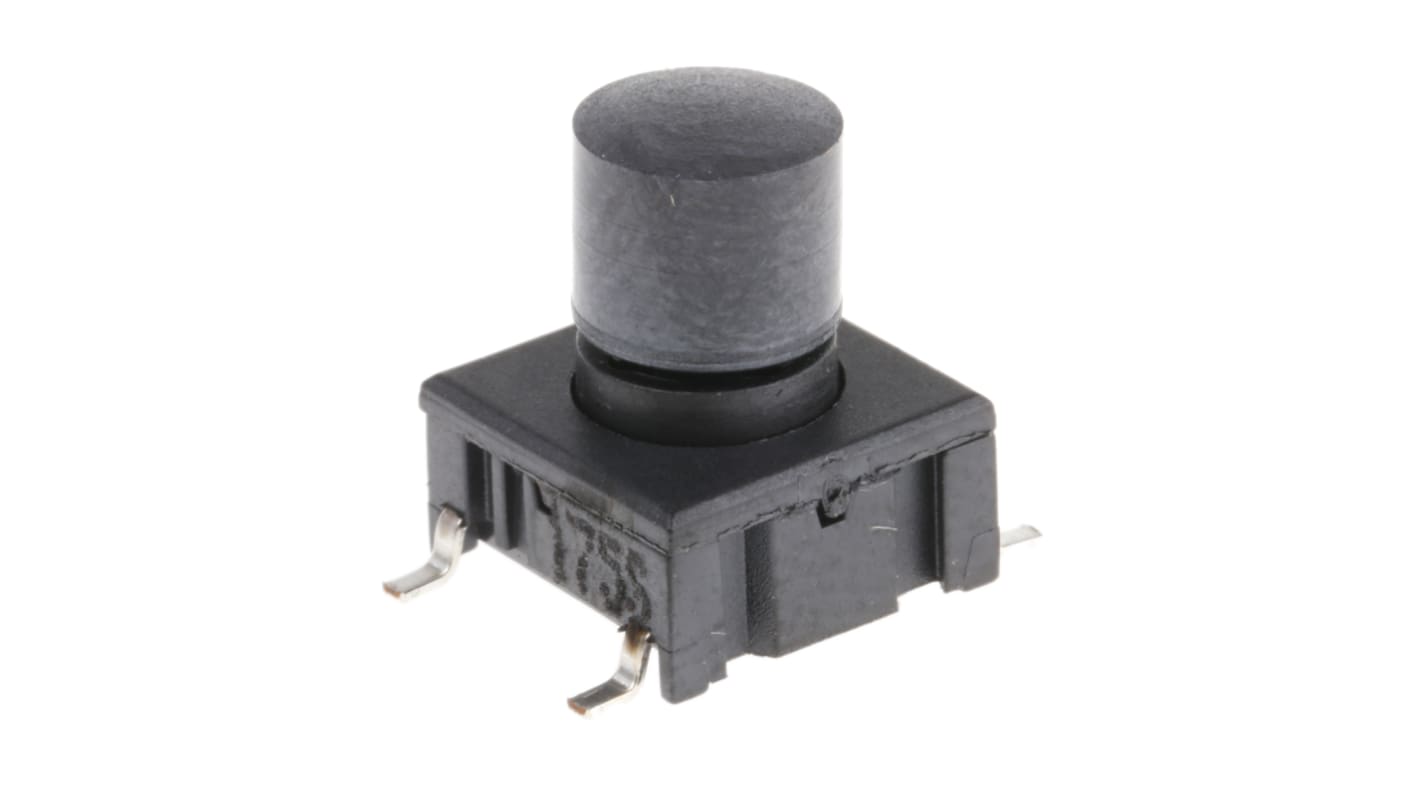

MEC IP67 Black Button Tactile Switch, SPST 50 mA @ 24 V dc 6.9mm PCB
- RS Stock No.:
- 495-2258
- Mfr. Part No.:
- 3ESH9-12.0
- Manufacturer:
- MEC
Bulk discount available
Subtotal (1 unit)**
MYR17.93
123 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit |
|---|---|
| 1 - 24 | MYR17.93 |
| 25 - 99 | MYR17.17 |
| 100 - 249 | MYR16.01 |
| 250 - 499 | MYR14.81 |
| 500 + | MYR13.48 |
**price indicative
- RS Stock No.:
- 495-2258
- Mfr. Part No.:
- 3ESH9-12.0
- Manufacturer:
- MEC
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEC | |
| Contact Configuration | Single Pole Single Throw (SPST) | |
| Terminal Type | Surface Mount | |
| Switch Operation | Momentary | |
| Actuator Length | 6.9mm | |
| Actuator Colour | Black | |
| Actuator Type | Button | |
| Length | 10.1mm | |
| Width | 10.1mm | |
| Dimensions | 10.1 x 10.1mm | |
| Illuminated | No | |
| Mounting Type | PCB | |
| Contact Current Rating | 50 mA @ 24 V dc | |
| IP Rating | IP67 | |
| Height | 12mm | |
| Voltage Rating | 24V dc | |
| Mechanical Life | 10000000Operations | |
| Minimum Operating Temperature | -40°C | |
| Operating Temperature Range | -40 → +160°C | |
| Maximum Operating Temperature | +160°C | |
Select all | ||
|---|---|---|
Brand MEC | ||
Contact Configuration Single Pole Single Throw (SPST) | ||
Terminal Type Surface Mount | ||
Switch Operation Momentary | ||
Actuator Length 6.9mm | ||
Actuator Colour Black | ||
Actuator Type Button | ||
Length 10.1mm | ||
Width 10.1mm | ||
Dimensions 10.1 x 10.1mm | ||
Illuminated No | ||
Mounting Type PCB | ||
Contact Current Rating 50 mA @ 24 V dc | ||
IP Rating IP67 | ||
Height 12mm | ||
Voltage Rating 24V dc | ||
Mechanical Life 10000000Operations | ||
Minimum Operating Temperature -40°C | ||
Operating Temperature Range -40 → +160°C | ||
Maximum Operating Temperature +160°C | ||
