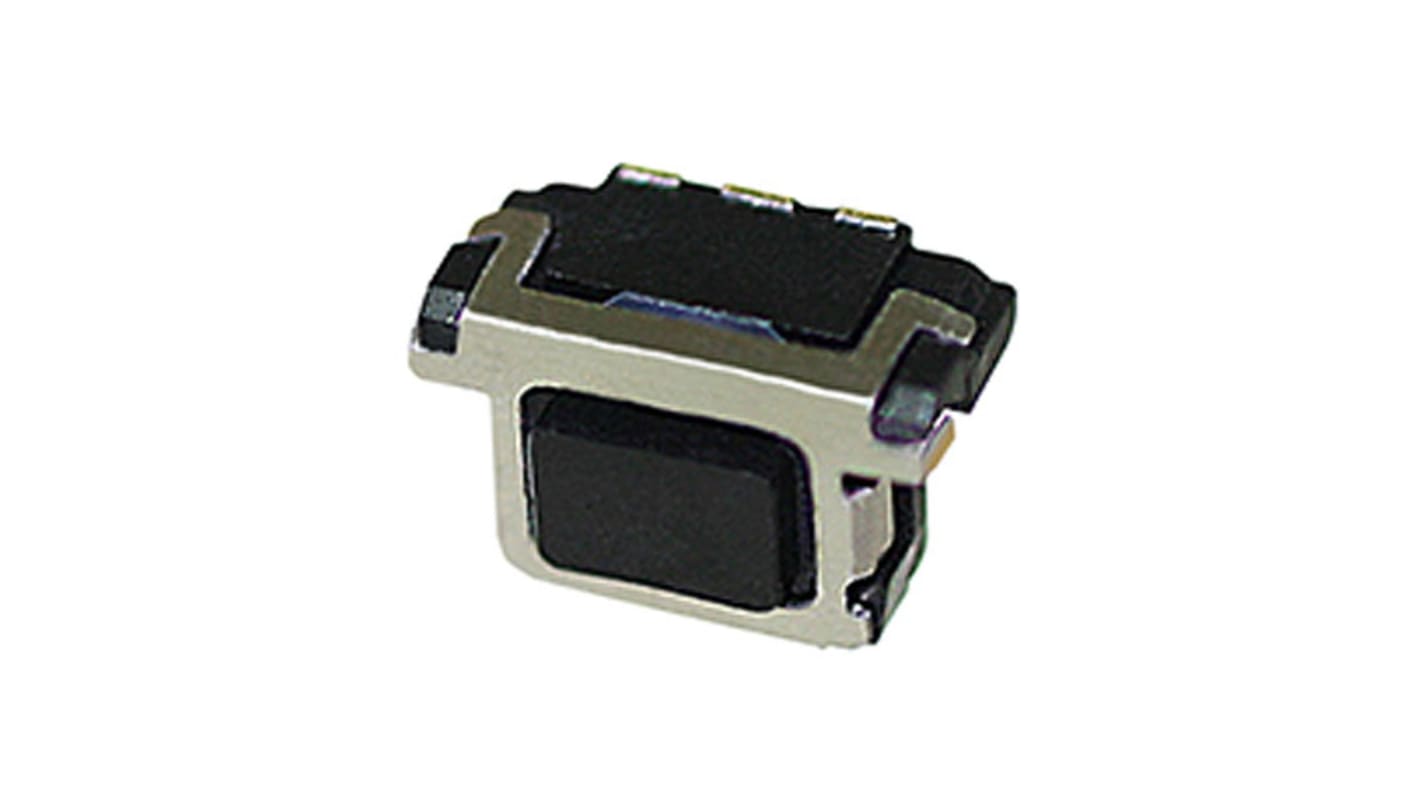

Black Button Tactile Switch, Single Pole Single Throw (SPST) 20 mA @ 15 V dc 2.2mm Edge Mount

  • RS Stock No. 125-0215
  • Mfr. Part No. EVPAEJB2A
  • Manufacturer Panasonic
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): JP
Product Details

Panasonic EMT Tact Switches - EVP and EVQ Series

Panasonic Light Touch switches, commonly referred as Tactile or Tact switches, are momentary snap action switches to be used with small currents (rated at 20mA 15Vdc). These Tact Switches provide a unique sharp, clear and assuring click operating feel, have low contact resistance, small bouncing noise, high contact reliability and come in a wide selection of operating forces.
This EMT range of Tactile Switches have features that include options such as ultra thin profiles, small form factor, side mount versions, with or without ground terminal or positioning/fixing boss, long travel (stroke), over travel, as well as surface mount and J-bent terminal mounting options.

Tactile

Specifications
Attribute Value
Contact Configuration Single Pole Single Throw (SPST)
Terminal Type Solder
Switch Operation Momentary
Actuator Length 2.2mm
Actuator Colour Black
Actuator Type Push Plate
Length 4.5mm
Width 2.6mm
Dimensions 4.5 x 2.25 x 1.7mm
Mounting Type Edge Mount
Contact Current Rating 20 mA @ 15 V dc
Operating Force 3.5 N
Minimum Operating Temperature -40°C
Height 1.7mm
Mechanical Life 200000Operations
Operating Temperature Range -40 → +85°C
Voltage Rating 2 → 15V dc
Maximum Operating Temperature +85°C
