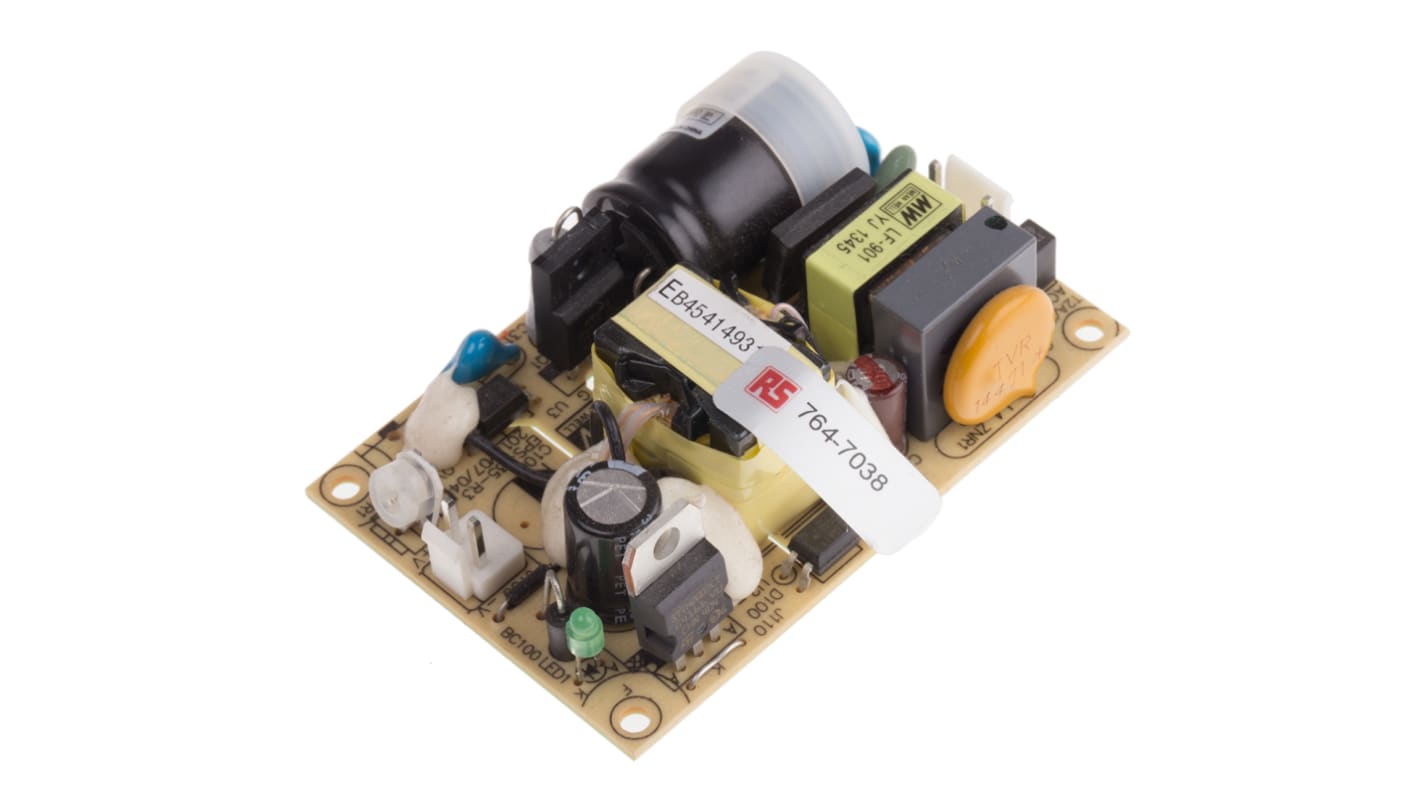

MEAN WELL, EPS-35-48 Switching Power Supply 48V dc, 36 W 370 V dc, 264V ac
- RS Stock No.:
- 764-7038
- Distrelec Article No.:
- 303-85-940
- Mfr. Part No.:
- EPS-35-48
- Manufacturer:
- MEAN WELL
Subtotal (1 unit)*
MYR70.96
FREE delivery for orders over RM 150.00
Temporarily out of stock
- Shipping from 20 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR70.96 |
*price indicative
- RS Stock No.:
- 764-7038
- Distrelec Article No.:
- 303-85-940
- Mfr. Part No.:
- EPS-35-48
- Manufacturer:
- MEAN WELL
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 48V dc | |
| Number of Outputs | 1 | |
| Mount Type | Chassis | |
| Power | 36W | |
| SMPS Output Current | 750mA | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 70°C | |
| Weight | 85g | |
| Standards/Approvals | UL 6681, TUV BS ENEN 6681, IEC 6681, EAC TP TC 004 | |
| Depth | 24mm | |
| Length | 76.2mm | |
| Width | 24mm | |
| Series | EPS-35 | |
| Maximum Input Voltage | 370, 264V dc | |
| Efficiency | 90% | |
| Hazardous Area Certification | No | |
| Minimum Input Voltage | 85V ac | |
| Output Current | 750mA | |
| Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 48V dc | ||
Number of Outputs 1 | ||
Mount Type Chassis | ||
Power 36W | ||
SMPS Output Current 750mA | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 70°C | ||
Weight 85g | ||
Standards/Approvals UL 6681, TUV BS ENEN 6681, IEC 6681, EAC TP TC 004 | ||
Depth 24mm | ||
Length 76.2mm | ||
Width 24mm | ||
Series EPS-35 | ||
Maximum Input Voltage 370, 264V dc | ||
Efficiency 90% | ||
Hazardous Area Certification No | ||
Minimum Input Voltage 85V ac | ||
Output Current 750mA | ||
- COO (Country of Origin):
- CN
Mean Well EPS-35 Series 35W AC-DC Open Frame Miniature Switch Mode Power Supply
EPS-35 series 35W AC-DC open frame single output miniature switch mode power supply with a 24mm low profile, compact design and a PCB structure for installation directly into system chassis. These EPS-35 series 35W AC-DC open frame power supplies have a universal 85 to 264Vac input, a high efficiency of up to 90% allowing free air convection cooling from -30 to +70 and a low no load power consumption of less than 0.3W. Typical applications for these EPS-35 series AC-DC open frame switch mode power supplies include factory automation, electrical or mechanical equipment and other applications where a low no load power consumption is required.
Universal 85-264Vac input
Low no load power consumption of <0.3W
High efficiency of up to 90%
LED POWER-ON indication
Low profile of 24mm and compact 3" x 2" size
Free air convection cooling
Short circuit, overload and over voltage protection
EMC compliance to Compliance to EN55022 (CISPR22) Class B
Harmonic current compliance to EN61000-3-2,-3
Note
A connector kit is available for these power supplies see stock number 764-7000
MTBF to MIL-HDBK-217F (25°C)
Derate power above 50°C
MTBF to MIL-HDBK-217F (25°C)
Derate power above 50°C
Approvals
cULus, CB, TUV
Standards
UL60950-1, TUV EN60950-1 approved
