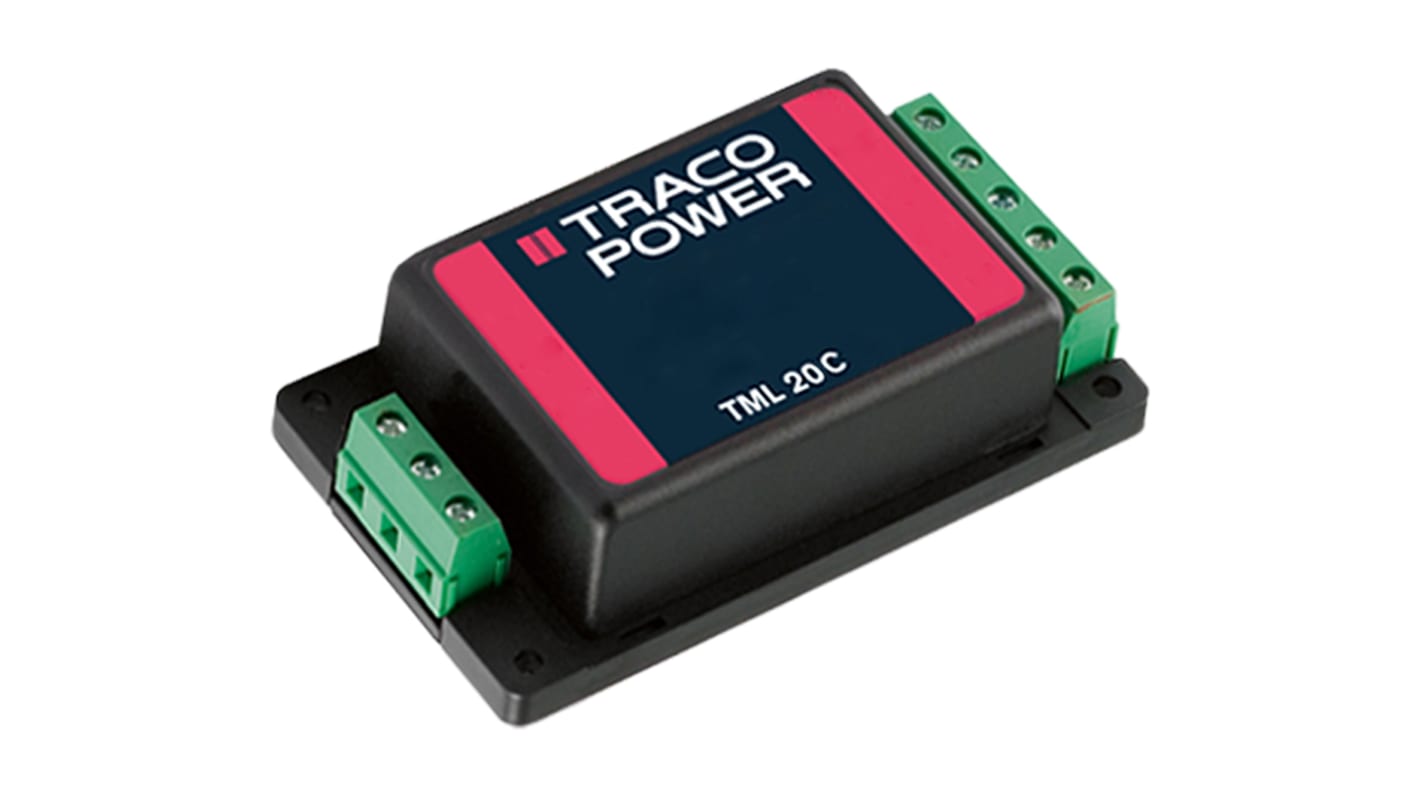

TRACOPOWER Switching Power Supply, TML 20115C, 15V dc, 1.34A, 20W, 1 Output, 100 → 375 V dc, 90 → 264 V
- RS Stock No.:
- 706-6133
- Mfr. Part No.:
- TML 20115C
- Manufacturer:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)*
MYR311.79
FREE delivery for orders over RM 500.00
In Stock
- Plus 26 unit(s) shipping from 13 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 9 | MYR311.79 |
| 10 - 49 | MYR303.05 |
| 50 + | MYR290.59 |
*price indicative
- RS Stock No.:
- 706-6133
- Mfr. Part No.:
- TML 20115C
- Manufacturer:
- TRACOPOWER
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 15V dc | |
| Output Current | 1.34A | |
| Power Rating | 20W | |
| Number of Outputs | 1 | |
| Input Voltage | 100 → 375 V dc, 90 → 264 V ac | |
| Mounting Type | Chassis Mount | |
| Package Type | Encapsulated | |
| Length | 96mm | |
| Width | 54.6mm | |
| Depth | 27.6mm | |
| Efficiency | 75 → 84% | |
| Series | TML | |
| Weight | 155g | |
| Minimum Temperature | -25°C | |
| Maximum Temperature | +60°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 15V dc | ||
Output Current 1.34A | ||
Power Rating 20W | ||
Number of Outputs 1 | ||
Input Voltage 100 → 375 V dc, 90 → 264 V ac | ||
Mounting Type Chassis Mount | ||
Package Type Encapsulated | ||
Length 96mm | ||
Width 54.6mm | ||
Depth 27.6mm | ||
Efficiency 75 → 84% | ||
Series TML | ||
Weight 155g | ||
Minimum Temperature -25°C | ||
Maximum Temperature +60°C | ||
- COO (Country of Origin):
- TW
Traco Power Switching Power Supply, Plastic Resin and Fiberglass Casing Material, 0.25mA Maximum Leakage Current - TML-C Series - TML 20115C
For AC to DC conversion from a compact package, choose this switching power supply from Traco Power. It takes an input voltage of between 90 and 264V AC and turns it into a steady 15V DC output. Dimensions of just 96 (L) x 54.6 (W) x 27.6mm (D) mean the device fits comfortably into crowded setups or portable equipment. For added protection, it's fully encapsulated to keep moisture, dust and other contaminants safely away from the delicate working parts. A hefty 20W output power rating means it's up to the task in a high-energy system. Thanks to a wide operating temperature range of -25°C to +70°C, this is a reliable choice for use in demanding conditions.
Features & Benefits
• Flame-retardant housing is self-extinguishing in under 10 seconds to help stop the spread of fire
• 3kV AC isolation voltage protects your equipment in the event of a fault
• Chassis-mounted for quick, easy and secure installation
• Light 155g weight won't strain your equipment
• 3kV AC isolation voltage protects your equipment in the event of a fault
• Chassis-mounted for quick, easy and secure installation
• Light 155g weight won't strain your equipment
Applications
• Industrial automation
• Communications and IT networks
• Safety technology
• Communications and IT networks
• Safety technology
How long will this product last?
A 200,000-hour mean time between failures means you can expect long-lasting performance from this hardy piece of kit.
