TDK-Lambda Switching Power Supply, SWS600L-48, 48V dc, 13A, 624W, 1 Output, 120 → 350 V dc, 85 → 265 V ac
- RS Stock No.:
- 680-2846
- Mfr. Part No.:
- SWS600L-48
- Manufacturer:
- TDK-Lambda
Bulk discount available
Subtotal (1 unit)*
MYR2,048.55
FREE delivery for orders over RM 500.00
In Stock
- Plus 1 unit(s) shipping from 13 October 2025
- Plus 2 unit(s) shipping from 17 February 2026
- Plus 2 unit(s) shipping from 28 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 9 | MYR2,048.55 |
| 10 - 49 | MYR2,005.54 |
| 50 + | MYR1,945.36 |
*price indicative
- RS Stock No.:
- 680-2846
- Mfr. Part No.:
- SWS600L-48
- Manufacturer:
- TDK-Lambda
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK-Lambda | |
| Output Voltage | 48V dc | |
| Output Current | 13A | |
| Power Rating | 624W | |
| Number of Outputs | 1 | |
| Input Voltage | 120 → 350 V dc, 85 → 265 V ac | |
| Mounting Type | Chassis Mount | |
| Package Type | Enclosed | |
| Length | 215mm | |
| Width | 120mm | |
| Medical Approved | Yes | |
| Depth | 61mm | |
| Weight | 1.6kg | |
| Minimum Temperature | -20°C | |
| Maximum Temperature | +74°C | |
Select all | ||
|---|---|---|
Brand TDK-Lambda | ||
Output Voltage 48V dc | ||
Output Current 13A | ||
Power Rating 624W | ||
Number of Outputs 1 | ||
Input Voltage 120 → 350 V dc, 85 → 265 V ac | ||
Mounting Type Chassis Mount | ||
Package Type Enclosed | ||
Length 215mm | ||
Width 120mm | ||
Medical Approved Yes | ||
Depth 61mm | ||
Weight 1.6kg | ||
Minimum Temperature -20°C | ||
Maximum Temperature +74°C | ||

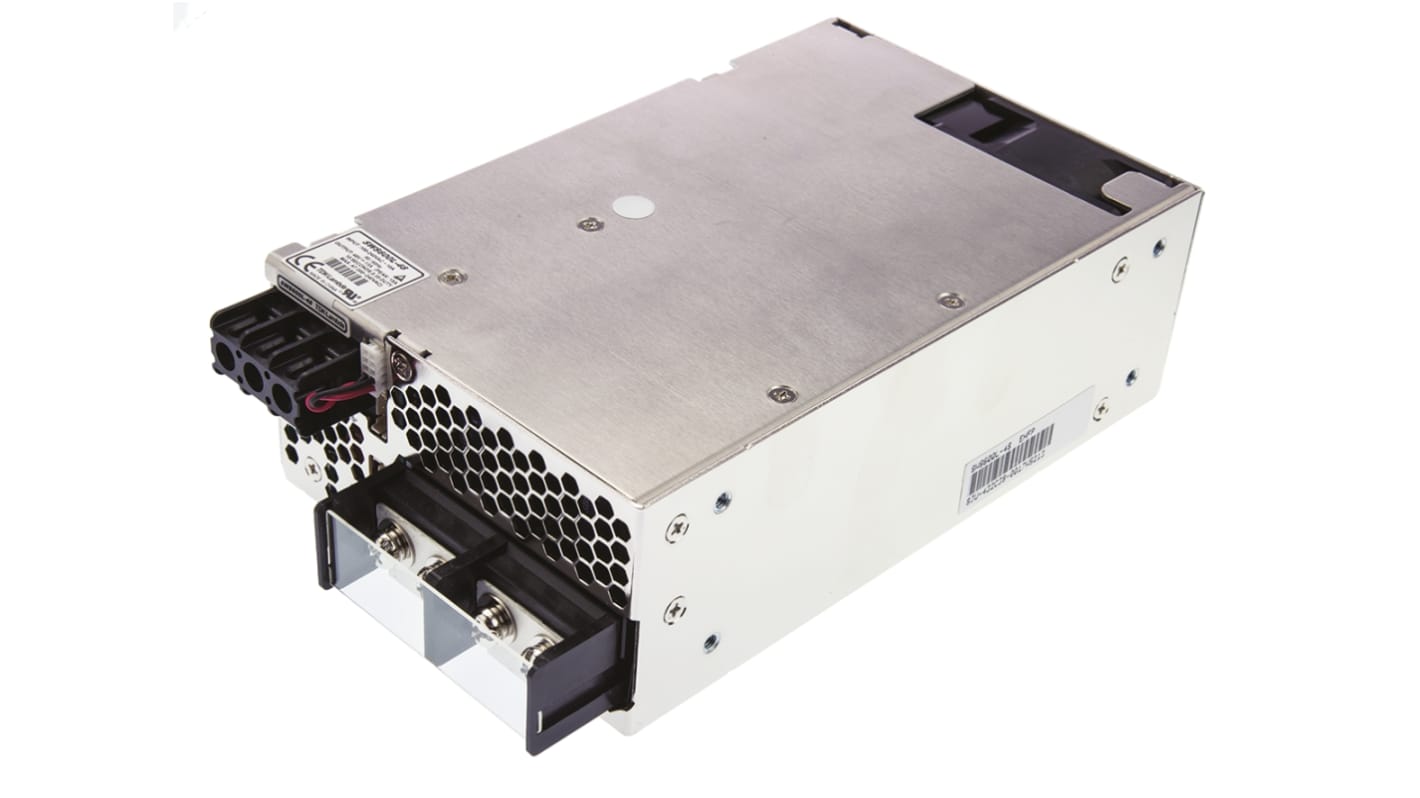

TDK-Lambda Switch Mode Power Supply
The TDK-Lambda SWSL series 624W single output AC to DC embedded switch-mode power supply has an output current rating of 13A at 48VDC. It has a universal input supply voltage rating from 85VAC to 265VAC/120VDC to 350VDC.
Note:
Load de-rates linearly to 50% above 50°C.
Note:
Load de-rates linearly to 50% above 50°C.
Features and Benefits
Active power factor correction
Low acoustical noise
Low profile
Medical approvals (SWS1000L)
Overcurrent, overvoltage and overtemperature protection
Quiet temperature controlled fan
Remote sense
Variable speed fan
Wide operating temperature range
Low acoustical noise
Low profile
Medical approvals (SWS1000L)
Overcurrent, overvoltage and overtemperature protection
Quiet temperature controlled fan
Remote sense
Variable speed fan
Wide operating temperature range
Applications
Broadcast
Communication
Industrial
LED signage
Test and measurements
Communication
Industrial
LED signage
Test and measurements
Certifications
CSA approved
EMI - EN55011
EN 60601-1
EN 60950-1
EN50178
EN55022-B
EN61000-3-2 class A (power factor correction)
FCC class B
IEC61010-1 (600W only)
UL approved
UL60601-1 (1000W only)
EMI - EN55011
EN 60601-1
EN 60950-1
EN50178
EN55022-B
EN61000-3-2 class A (power factor correction)
FCC class B
IEC61010-1 (600W only)
UL approved
UL60601-1 (1000W only)
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
