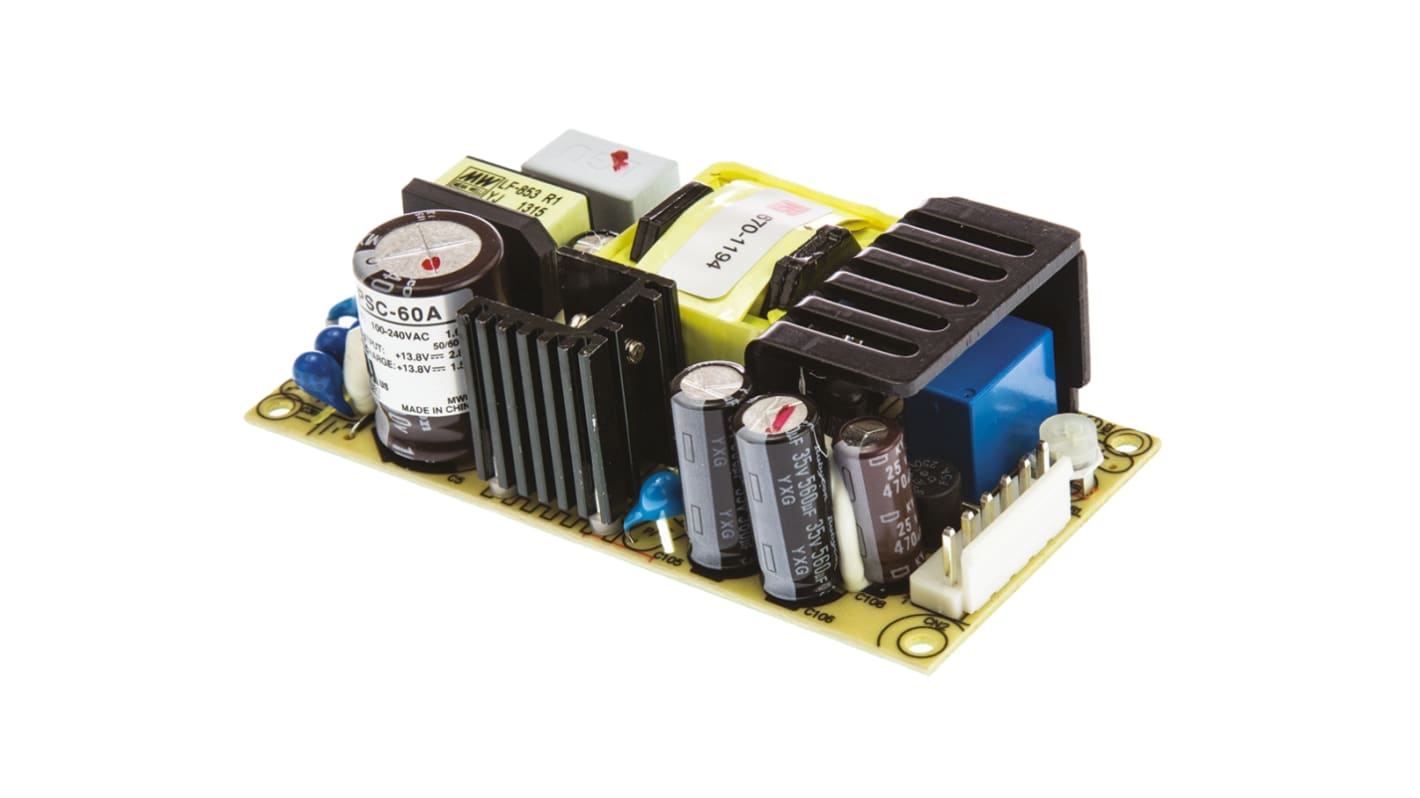

MEAN WELL Switching Power Supply, PSC-60A, 13.8V dc, 1.5A, 59W, Dual Output, 127 → 370 V dc, 90 → 264 V

View all Switching Power Supplies
Bulk discount available

Subtotal (1 unit)*

MYR189.58

Add to Basket
Select or type quantity
In Stock
  • Plus 13 unit(s) shipping from 13 October 2025
  • Plus 20 unit(s) shipping from 21 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 - 9MYR189.58
10 - 49MYR185.58
50 +MYR180.02

*price indicative

RS Stock No.:
670-1194
Distrelec Article No.:
303-72-482
Mfr. Part No.:
PSC-60A
Manufacturer:
MEAN WELL
Find similar products by selecting one or more attributes.
Select all

Brand

MEAN WELL

Output Voltage

13.8V dc

Output Current

1.5 A, 2.8A

Power Rating

59W

Number of Outputs

2

Input Voltage

127 → 370 V dc, 90 → 264 V ac

Mounting Type

Chassis Mount

Package Type

Open Frame

Length

101.6mm

Width

50.8mm

Depth

29mm

Maximum Temperature

+70°C

Weight

130g

Minimum Temperature

-20°C

PSC-60 Series - Battery Backed PSUs


Universal AC input / Full range
Short circuit, overload & over voltage protection
Battery charger UPS function
Battery low protection / battery polarity protection by fuse
Alarm signal for AC OK and Battery low
100% full load burn-in test
Cooling by free air convection
For suitable mating connectors for the PSC-60 series see stock no 381-845

Note

MTBF to MIL-HDBK-217F @ 25°C.
Main output voltage is adjustable (PSC-60A 12-15V, PSC-60B 24-29V).

Standards

UL60950-1, TUV EN60950-1

Approvals

cULus, TUV, CB
