Excelsys Switching Power Supply, XG2, 6V dc, 40A, 200W, 1 Output, 120 → 380 V dc, 85 → 264 V ac Input

RS Stock No.:: 627-3800
Mfr. Part No.:: XG2
Manufacturer:: Excelsys

Excelsys Switching Power Supply, XG2, 6V dc, 40A, 200W, 1 Output, 120 → 380 V dc, 85 → 264 V ac Input

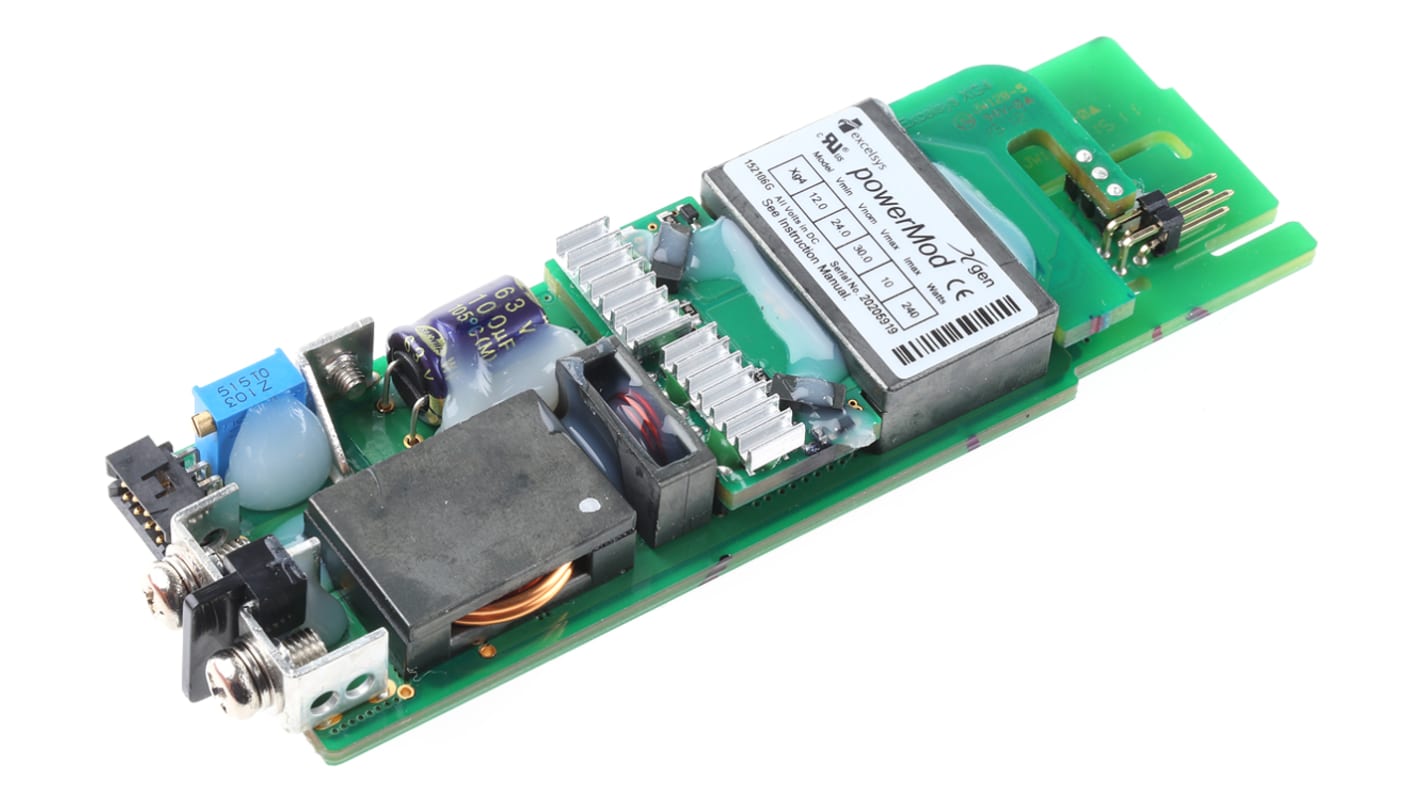

This image is representative of the product range

5 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each

MYR1,013.62

Units	Per Unit
1 - 9	MYR1,013.62
10 - 49	MYR995.89
50 +	MYR970.11

RS Stock No.:: 627-3800
Mfr. Part No.:: XG2
Manufacturer:: Excelsys

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: MY

Product Details

400W to 1200W, Universal Input

The first user configurable power supply allowing system designers to rapidly integrate into a system. Boasting 90% efficiency in a 1U high package. The output modules must be inserted into the chassis for the required output voltages upto the total power rating of the selected chassis.

Plug and play power - user configurable
Up to 90% efficiency
No minimum load
Voltage adjustment on all outputs
Power Factor Corrected to EN61000-3-2
EMC meets EN55022-B
Thermal protection
Over voltage and over current protection
Logic inhibit/enable
Power fail signals
Operating temperature -20 to +70°C (derating above 50°C is 2.5% per °C)

Note

Each modular PSU chassis is supplied with blanking plates.

Standards

EN 60950, UL 60950

Approvals

UL recognised, CSA

Specifications

Attribute	Value
Output Voltage	6V dc
Output Current	40A
Power Rating	200W
Number of Outputs	1
Input Voltage	120 → 380 V dc, 85 → 264 V ac
Mounting Type	Chassis Mount
Package Type	Enclosed
Length	269.75mm
Width	127mm
Depth	40.4mm
Efficiency	90%
Weight	100g
Minimum Temperature	-20°C
Maximum Temperature	+70°C
