Excelsys / Advanced Energy Switching Power Supply, XCD 6 Output, 1.2 kW, Input 85V ac to
- RS Stock No.:
- 627-3793
- Mfr. Part No.:
- XCD
- Manufacturer:
- Excelsys / Advanced Energy
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
MYR3,765.85
FREE delivery for orders over RM 150.00
Temporarily out of stock
- 10 unit(s) shipping from 21 September 2026
- Plus 5 unit(s) shipping from 19 October 2026
- Plus 15 unit(s) shipping from 16 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 9 | MYR3,765.85 |
| 10 - 49 | MYR3,699.91 |
| 50 + | MYR3,604.02 |
*price indicative
- RS Stock No.:
- 627-3793
- Mfr. Part No.:
- XCD
- Manufacturer:
- Excelsys / Advanced Energy
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Excelsys / Advanced Energy | |
| Product Type | Switching Power Supply | |
| Number of Outputs | 6 | |
| Mount Type | Chassis | |
| Power | 1.2kW | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | CE, RoHS, cURus | |
| Weight | 1.1kg | |
| Width | 127mm | |
| Depth | 40.4mm | |
| Length | 269.75mm | |
| Efficiency | 90% | |
| Series | Xgen | |
| Minimum Input Voltage | 85V ac | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand Excelsys / Advanced Energy | ||
Product Type Switching Power Supply | ||
Number of Outputs 6 | ||
Mount Type Chassis | ||
Power 1.2kW | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals CE, RoHS, cURus | ||
Weight 1.1kg | ||
Width 127mm | ||
Depth 40.4mm | ||
Length 269.75mm | ||
Efficiency 90% | ||
Series Xgen | ||
Minimum Input Voltage 85V ac | ||
Hazardous Area Certification No | ||
- COO (Country of Origin):
- CN

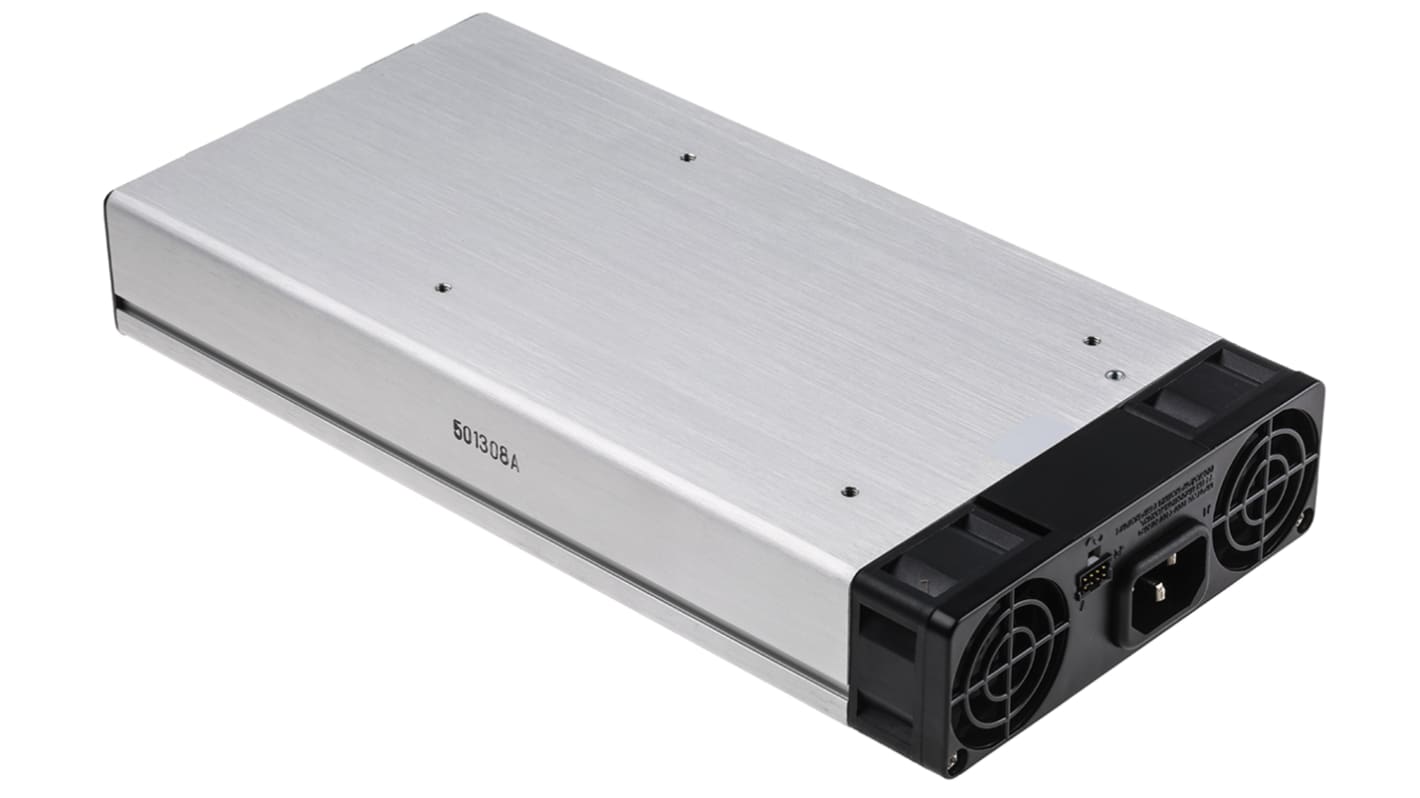

Excelsys Switch Mode Power Supply
The Excelsys 1200W 6 enclosed outputs AC to DC switch mode power supply has a universal input supply voltage rating from 85VAC to 264VAC and 120VDC to 380VDC. The output modules must be inserted into the chassis for the required output voltages up to the total power rating of the selected chassis. The power supply allowing system designers to rapidly integrate into a system. Boasting 90% efficiency in a 1U high package.
Note:
Each modular PSU chassis is supplied with blanking plates.
Features and Benefits
Plug and play power
User configurable
Efficiency Up to 90%
No minimum load
Voltage adjustment on all outputs
Thermal protection
Over voltage and over current protection
Logic inhibit/enable
Power fail signals
Operating temperature ranges between -20°C and 70°C (derating above 50°C is 2.5% per °C)
Series/ parallel of multiple outputs
Visual LED indicators
Applications
Industrial machines
Test and measurement
Automation equipment
Telecommunications
Medical equipment
Laboratory and diagnostic equipment
Audio and broadcast
Linear and rotary motion
Certifications
EN 60950
UL 60950
UL approved
CSA approved
EN61000-3-2 (power factor corrected)
EN55022-B (EMC)
