MPN

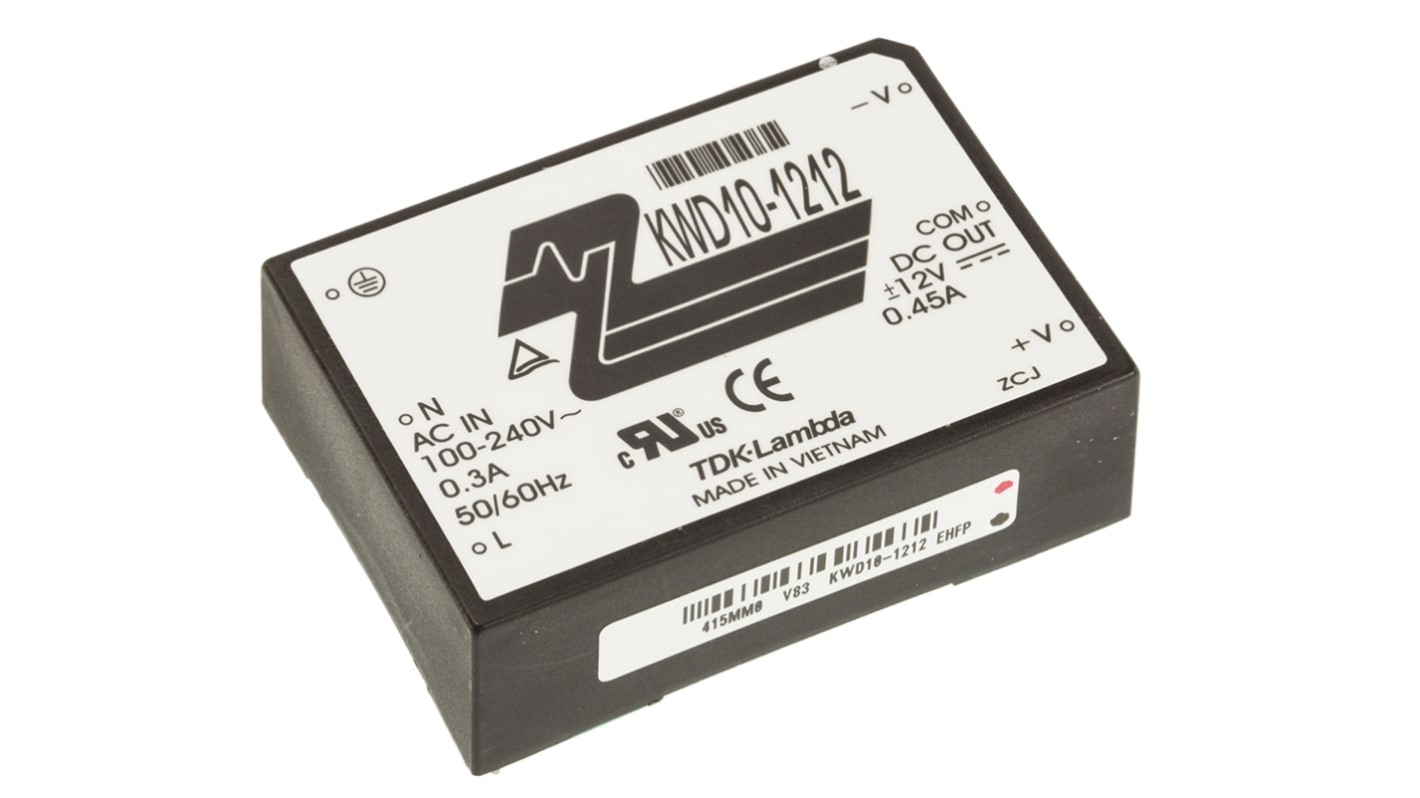

TDK-Lambda Switching Power Supply, KWD10-1212, ±12V dc, ±450mA, 10W, Dual Output, 110 → 340 V dc, 85 →

RS Stock No.:: 231-8022
Distrelec Article No.:: 301-18-319
Mfr. Part No.:: KWD10-1212
Manufacturer:: TDK-Lambda

TDK-Lambda Switching Power Supply, KWD10-1212, ±12V dc, ±450mA, 10W, Dual Output, 110 → 340 V dc, 85 →

Bulk discount available

Subtotal (1 unit)*

MYR377.81

FREE delivery for orders over RM 500.00

Last RS stock

Final 21 unit(s), ready to ship from another location

Units	Per Unit
1 - 9	MYR377.81
10 - 49	MYR367.23
50 +	MYR352.12

*price indicative

Compare

RS Stock No.:: 231-8022
Distrelec Article No.:: 301-18-319
Mfr. Part No.:: KWD10-1212
Manufacturer:: TDK-Lambda

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	TDK-Lambda
	Output Voltage	±12V dc
	Output Current	±450mA
	Power Rating	10W
	Number of Outputs	2
	Input Voltage	110 → 340 V dc, 85 → 265 V ac
	Mounting Type	PCB Mount
	Package Type	Encapsulated
	Length	64mm
	Width	45mm
	Depth	20.5mm
	Efficiency	73%
	Minimum Temperature	-10°C
	Weight	100g
	Maximum Temperature	+70°C

	Select all
	Brand TDK-Lambda
	Output Voltage ±12V dc
	Output Current ±450mA
	Power Rating 10W
	Number of Outputs 2
	Input Voltage 110 → 340 V dc, 85 → 265 V ac
	Mounting Type PCB Mount
	Package Type Encapsulated
	Length 64mm
	Width 45mm
	Depth 20.5mm
	Efficiency 73%
	Minimum Temperature -10°C
	Weight 100g
	Maximum Temperature +70°C

COO (Country of Origin):: MY

TDK-Lambda, PCB Mount, Encapsulated, Switch Mode AC-DC Power Supply - KW Series

TDk Lambda KW series of encapsulated PCB power supplies off a compact solution to a wide range of applications. The compact footprint of the KW series makes it suitable for space-critical applications without external components. The series is highly efficient with reduced power losses, making board thermal management easier.

Features and Benefits

Small, lightweight & universal input.
Input 85-265Vac, ideal for small systems and instrumentation applications worldwide.
Overvoltage/Overcurrent protection.
Plastic case complies to UL94V-0.
Conducted noise (EMI) VCCI-II and FCC-B (will meet VDE-B with external capacitor).

Typical Applications

Industrial.
Test & measurement.
Communications & Broadcast.

Note

MTBF to MIL-HDBK-217D.
Should not be run under sustained short circuit conditions.

Standards

IEC 950, EN60950

Approvals

TUV, UL recognised, CSA certified
