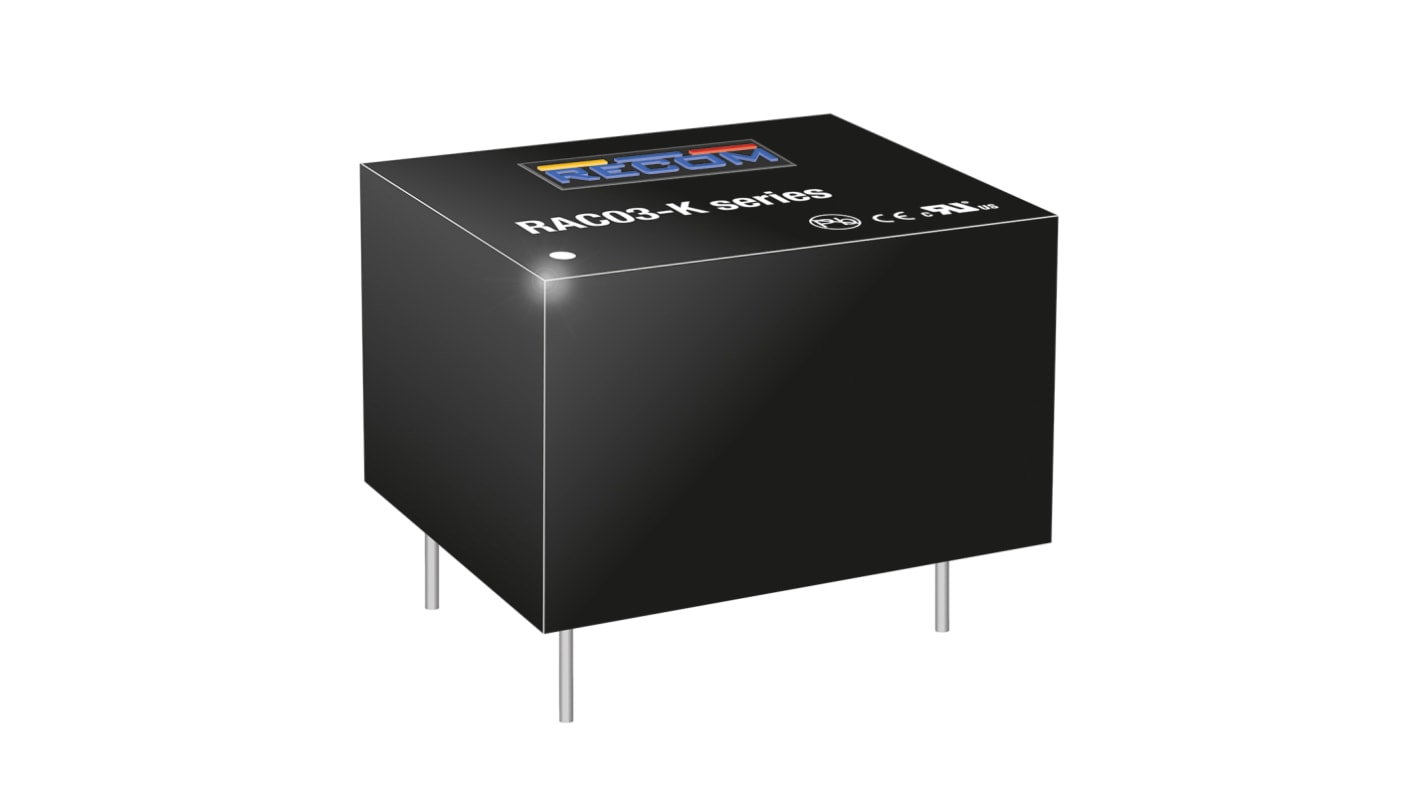

Recom Switching Power Supply, RAC03-15SK, 15V dc, 200mA, 3W, 1 Output, 85 → 264V ac Input Voltage
- RS Stock No.:
- 190-7523
- Mfr. Part No.:
- RAC03-15SK
- Manufacturer:
- Recom
Bulk discount available
Subtotal (1 tube of 18 units)*
MYR607.84
FREE delivery for orders over RM 500.00
Temporarily out of stock
- Shipping from 15 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per Unit* |
|---|---|---|
| 1 - 1 | MYR607.84 | MYR33.769 |
| 2 - 3 | MYR594.47 | MYR33.026 |
| 4 + | MYR581.70 | MYR32.317 |
*price indicative
- RS Stock No.:
- 190-7523
- Mfr. Part No.:
- RAC03-15SK
- Manufacturer:
- Recom
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage | 15V dc | |
| Output Current | 200mA | |
| Power Rating | 3W | |
| Number of Outputs | 1 | |
| Input Voltage | 85 → 264V ac | |
| Mounting Type | PCB Mount | |
| Length | 28.5mm | |
| Width | 23.5mm | |
| Depth | 17.9mm | |
| Series | RAC03‿K | |
| Efficiency | 0.75 | |
| Weight | 20g | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +80°C | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 15V dc | ||
Output Current 200mA | ||
Power Rating 3W | ||
Number of Outputs 1 | ||
Input Voltage 85 → 264V ac | ||
Mounting Type PCB Mount | ||
Length 28.5mm | ||
Width 23.5mm | ||
Depth 17.9mm | ||
Series RAC03‿K | ||
Efficiency 0.75 | ||
Weight 20g | ||
Minimum Temperature -40°C | ||
Maximum Temperature +80°C | ||
- COO (Country of Origin):
- CN
In a compact 1in2 footprint, the RAC03-K series modules deliver an output power of 3 watts from -40°C to 60°C and 2 watts up to 80°C. Despite such a high power density and small footprint, the RAC03-K series is a complete solution for worldwide applications in automation, industry 4.0, IoT, household, and home automation. With an input voltage range from 85 to 264VAC these are some of the most versatile power modules on the market.
10 inch² footprint for the tiniest 3 watt module
Standby mode optimized
No load power consumption <150mW
Operating temperature range: -40°C to +80°C
Standby mode optimized
No load power consumption <150mW
Operating temperature range: -40°C to +80°C
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
