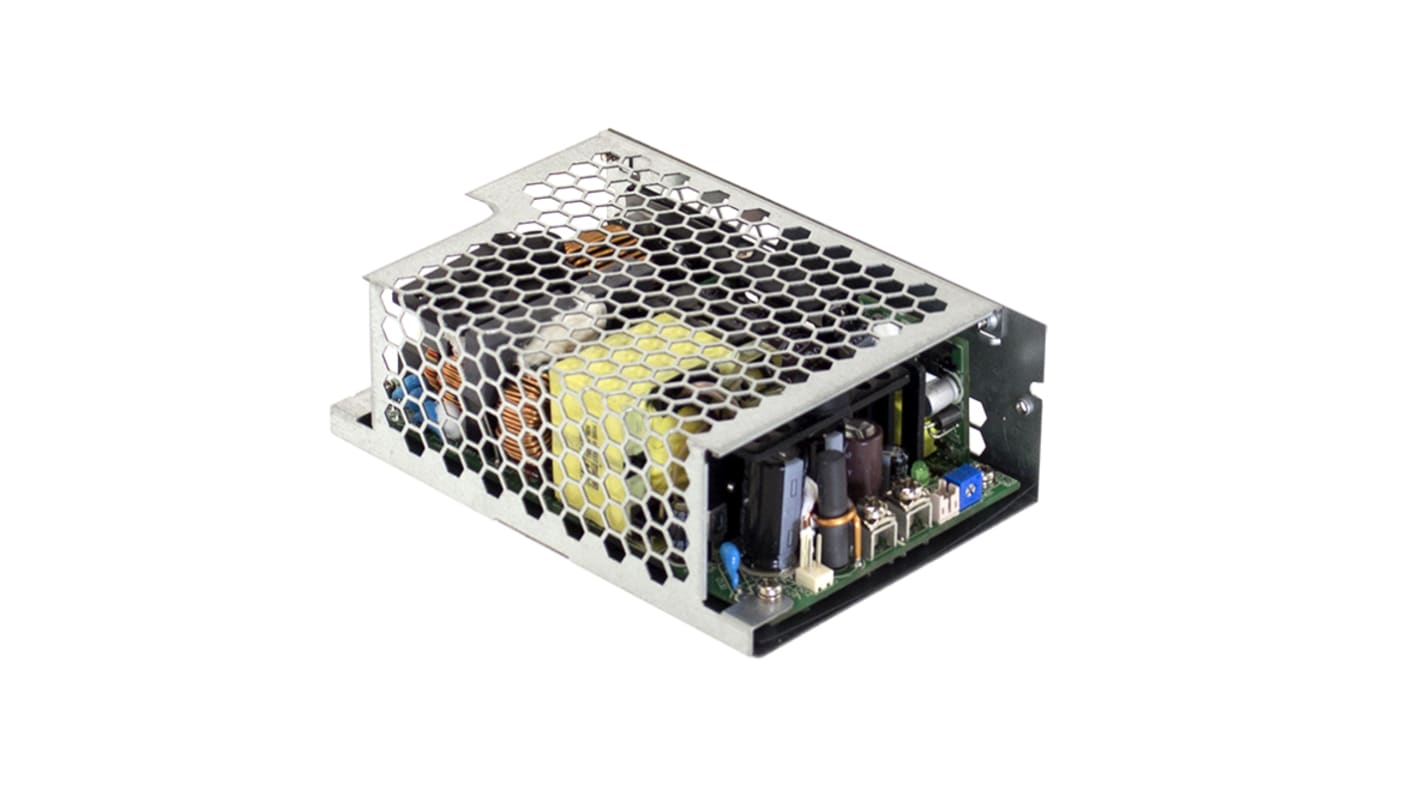

MEAN WELL Switching Power Supply, RPS-500-27-C, 27V dc, 11.5A, 310.5 (Convection) W, 499.5 (25 CFM) W, 1 Output, 113

View all Switching Power Supplies
Bulk discount available

Subtotal (1 unit)*

MYR453.65

Add to Basket
Select or type quantity
Temporarily out of stock
  • 999,999,999 unit(s) shipping from 23 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 - 9MYR453.65
10 - 49MYR444.12
50 +MYR430.79

*price indicative

RS Stock No.:
187-5554
Mfr. Part No.:
RPS-500-27-C
Manufacturer:
MEAN WELL
Find similar products by selecting one or more attributes.
Select all

Brand

MEAN WELL

Output Voltage

27V dc

Output Current

11.5 A, 18.5A

Power Rating

310.5 (Convection) W, 499.5 (25 CFM) W

Number of Outputs

1

Input Voltage

113 → 370 V dc, 80 → 264 V ac

Mounting Type

PCB Mount

Package Type

Enclosed

Length

130mm

Width

86mm

Medical Approved

Yes

Depth

43mm

Efficiency

93.5%

Series

RPS-500

Maximum Temperature

+70°C

Weight

540g

Minimum Temperature

-30°C

COO (Country of Origin):
CN
RPS-500 is a 500W highly reliable green PCB type medical power supply with a high power density on the 5" by 3" footprint. It accepts 80∼264VAC input and offers various output voltages between 12V and 48V. The working efficiency is up to 94% and the extremely low no power consumption is down below 0.5W. RPS-500 is able to be used for both Class I(with FG) and ClassII(no FG) system design. The extremely low leakage current is less than 220μA. RPS-500 series also offers the enclosed style models(-C/TF/SF)

High efficiency up to 94%
Protections: Short circuit / Overload / Over voltage / Over temperature
3 years warranty
