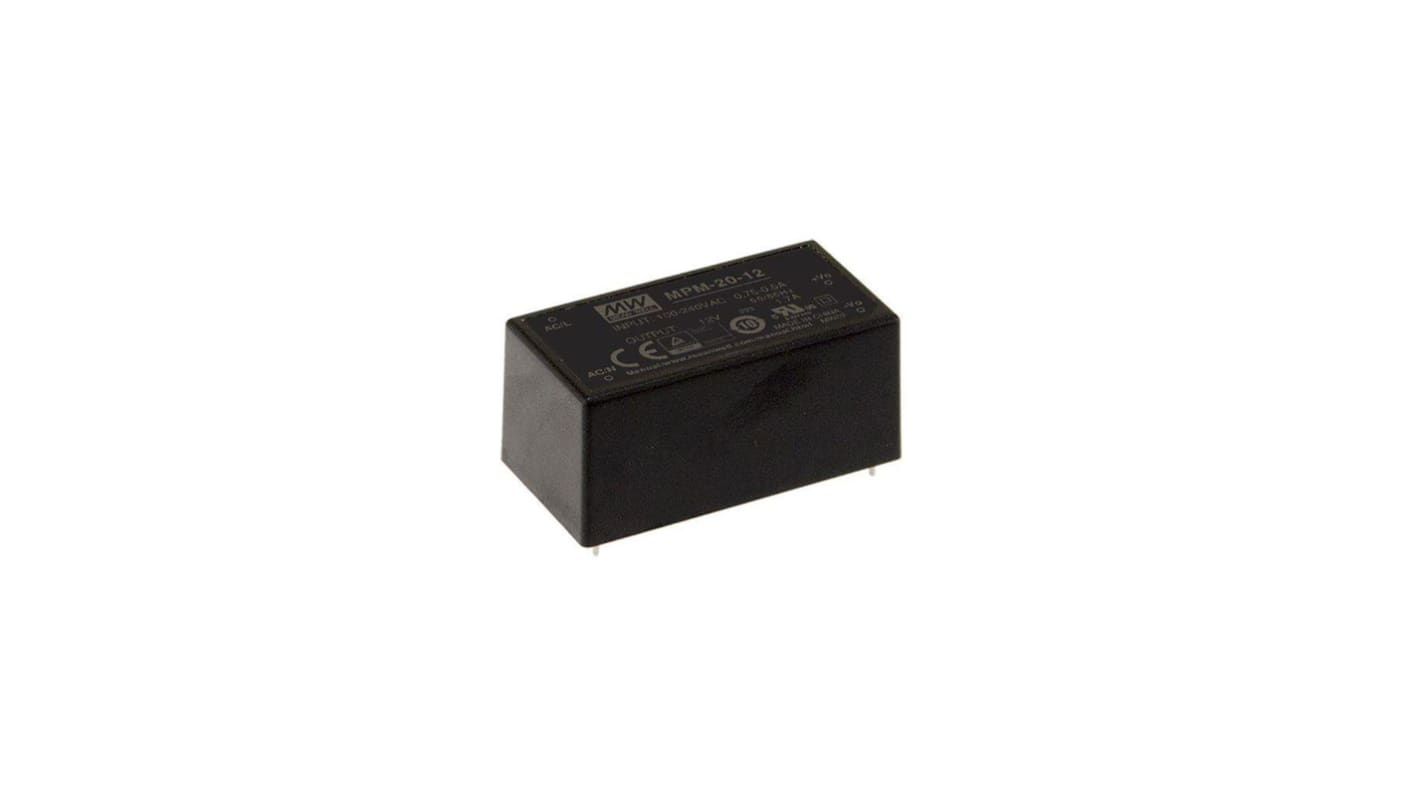

MEAN WELL Switching Power Supply, MPM-20-24, 24V dc, 900mA, 21.6W, 1 Output, 80 → 264V ac Input Voltage
- RS Stock No.:
- 174-8067
- Distrelec Article No.:
- 303-72-454
- Mfr. Part No.:
- MPM-20-24
- Manufacturer:
- MEAN WELL
Bulk discount available
Subtotal (1 unit)*
MYR69.04
FREE delivery for orders over RM 500.00
In Stock
- Plus 38 unit(s) shipping from 13 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 9 | MYR69.04 |
| 10 - 49 | MYR66.99 |
| 50 + | MYR64.88 |
*price indicative
- RS Stock No.:
- 174-8067
- Distrelec Article No.:
- 303-72-454
- Mfr. Part No.:
- MPM-20-24
- Manufacturer:
- MEAN WELL
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Output Voltage | 24V dc | |
| Output Current | 900mA | |
| Power Rating | 21.6W | |
| Number of Outputs | 1 | |
| Input Voltage | 80 → 264V ac | |
| Mounting Type | PCB Mount | |
| Package Type | Encapsulated | |
| Length | 52.4mm | |
| Width | 27.2mm | |
| Medical Approved | Yes | |
| Depth | 24mm | |
| Weight | 56g | |
| Maximum Temperature | +85°C | |
| Minimum Temperature | -35°C | |
Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Output Voltage 24V dc | ||
Output Current 900mA | ||
Power Rating 21.6W | ||
Number of Outputs 1 | ||
Input Voltage 80 → 264V ac | ||
Mounting Type PCB Mount | ||
Package Type Encapsulated | ||
Length 52.4mm | ||
Width 27.2mm | ||
Medical Approved Yes | ||
Depth 24mm | ||
Weight 56g | ||
Maximum Temperature +85°C | ||
Minimum Temperature -35°C | ||
- COO (Country of Origin):
- CN
2.06"x1.07" compact size
Suitable for BF application with appropriate system consideration
No load power consumption<0.075W (0.09W for 3.3V)
Extremely low leakage current
Wide operating temp. Range -35 ∼ +85℃
EMI class B for class Ⅱ configuration
Protections:
Short circuit / Overload / Over voltage / Over temperature
No minimum load required
3 years warranty
Suitable for BF application with appropriate system consideration
No load power consumption<0.075W (0.09W for 3.3V)
Extremely low leakage current
Wide operating temp. Range -35 ∼ +85℃
EMI class B for class Ⅱ configuration
Protections:
Short circuit / Overload / Over voltage / Over temperature
No minimum load required
3 years warranty
AC-DC Single output Medical Encapsulated power supply. Output 24Vdc at 0.9A, PCB through hole, 2xMOPP
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
