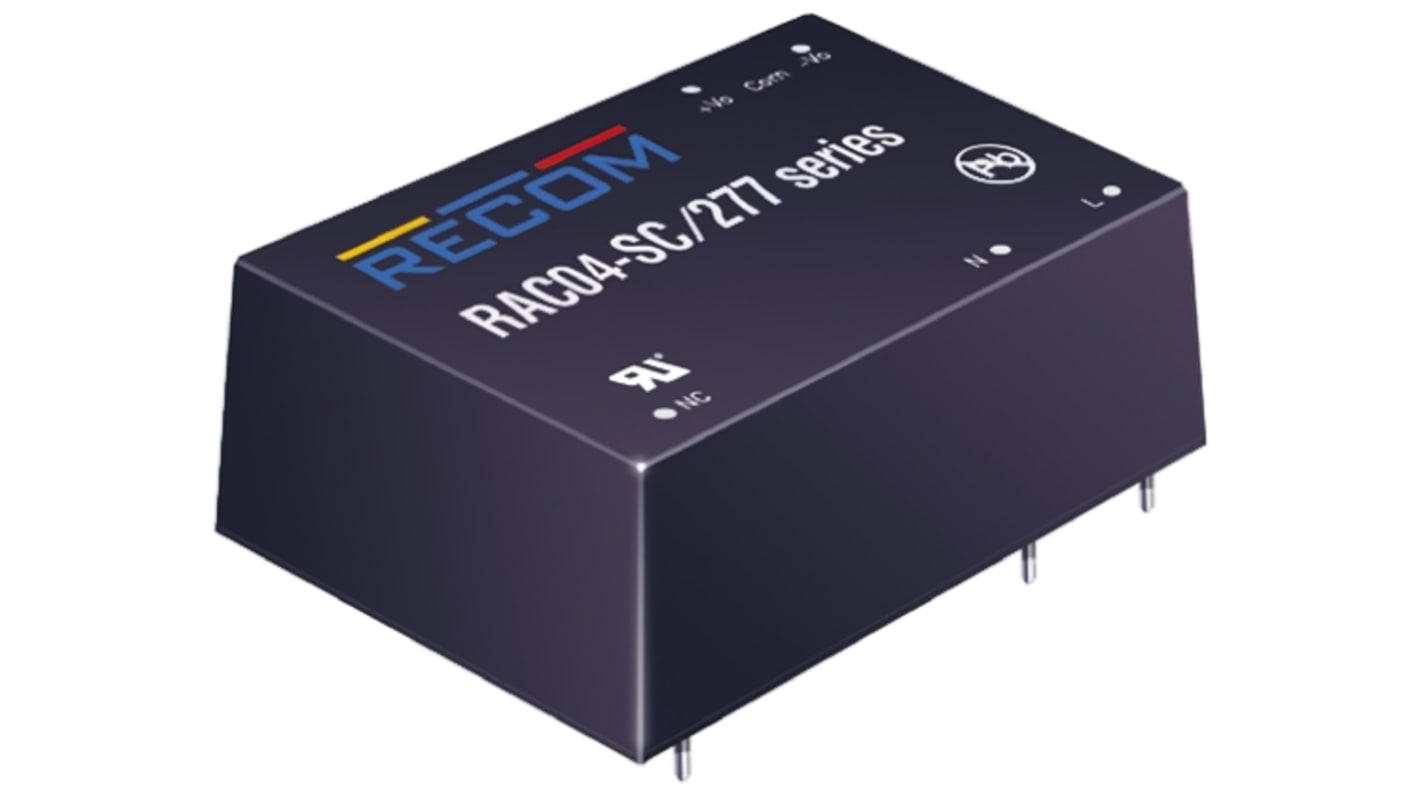

Recom Switching Power Supply, RAC04-24SC/277, 24V dc, 167mA, 4W, 1 Output, 80 → 305V ac Input Voltage
- RS Stock No.:
- 166-6714
- Mfr. Part No.:
- RAC04-24SC/277
- Manufacturer:
- Recom
Subtotal (1 tube of 12 units)*
MYR1,389.66
FREE delivery for orders over RM 500.00
Temporarily out of stock
- Shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per Unit* |
|---|---|---|
| 1 + | MYR1,389.66 | MYR115.805 |
*price indicative
- RS Stock No.:
- 166-6714
- Mfr. Part No.:
- RAC04-24SC/277
- Manufacturer:
- Recom
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage | 24V dc | |
| Output Current | 167mA | |
| Power Rating | 4W | |
| Number of Outputs | 1 | |
| Input Voltage | 80 → 305V ac | |
| Mounting Type | PCB Mount | |
| Package Type | Encapsulated | |
| Length | 36.7mm | |
| Width | 27.2mm | |
| Depth | 17.1mm | |
| Series | RAC04-SC/277 | |
| Efficiency | 79% | |
| Maximum Temperature | +80°C | |
| Minimum Temperature | -25°C | |
| Weight | 31.5g | |
Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 24V dc | ||
Output Current 167mA | ||
Power Rating 4W | ||
Number of Outputs 1 | ||
Input Voltage 80 → 305V ac | ||
Mounting Type PCB Mount | ||
Package Type Encapsulated | ||
Length 36.7mm | ||
Width 27.2mm | ||
Depth 17.1mm | ||
Series RAC04-SC/277 | ||
Efficiency 79% | ||
Maximum Temperature +80°C | ||
Minimum Temperature -25°C | ||
Weight 31.5g | ||
- COO (Country of Origin):
- TW
Recom 4W, PCB Mount, Encapsulated, Switch Mode AC-DC Power Supply - RAC04/277 Series
The RAC04/277 encapsulated Power Supply is part of the Recom Powerline series. This 4W Regulated AC/DC converter offers universal output and High efficiency of up to 79%. The RAC04/277 has a Maximum No Load ˂50mW and Maximum input Power ˂0.5W at 0.3W Output Power. The Recom RAC04/277 regulated converter comes with a three year warranty.
Universal input 90-305Vac
High efficiency up to 79%
Isolated Output 3.75kVac / 1 minute
Short circuit protection
Meets EN55022 Class B
Fixed Output Voltage
High efficiency up to 79%
Isolated Output 3.75kVac / 1 minute
Short circuit protection
Meets EN55022 Class B
Fixed Output Voltage
Standards
EN-60950-1, UL-60950-1
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
