EOS Switching Power Supply, ULP180-1330, 30V dc, 3.75A, 180W, 1 Output, 390 V dc, 80 → 264 V ac Input Voltage
- RS Stock No.:
- 125-0827
- Mfr. Part No.:
- ULP180-1330
- Manufacturer:
- EOS
Bulk discount available
Subtotal (1 unit)*
MYR616.05
FREE delivery for orders over RM 500.00
Temporarily out of stock
- Shipping from 18 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 9 | MYR616.05 |
| 10 - 49 | MYR594.45 |
| 50 + | MYR572.59 |
*price indicative
- RS Stock No.:
- 125-0827
- Mfr. Part No.:
- ULP180-1330
- Manufacturer:
- EOS
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EOS | |
| Output Voltage | 30V dc | |
| Output Current | 3.75A | |
| Power Rating | 180W | |
| Number of Outputs | 1 | |
| Input Voltage | 390 V dc, 80 → 264 V ac | |
| Mounting Type | Surface Mount | |
| Package Type | Open Frame | |
| Length | 101.6mm | |
| Width | 50.8mm | |
| Medical Approved | Yes | |
| Depth | 19.05mm | |
| Efficiency | 90% | |
| Weight | 200g | |
| Maximum Temperature | +70°C | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand EOS | ||
Output Voltage 30V dc | ||
Output Current 3.75A | ||
Power Rating 180W | ||
Number of Outputs 1 | ||
Input Voltage 390 V dc, 80 → 264 V ac | ||
Mounting Type Surface Mount | ||
Package Type Open Frame | ||
Length 101.6mm | ||
Width 50.8mm | ||
Medical Approved Yes | ||
Depth 19.05mm | ||
Efficiency 90% | ||
Weight 200g | ||
Maximum Temperature +70°C | ||
Minimum Temperature -40°C | ||
- COO (Country of Origin):
- IN

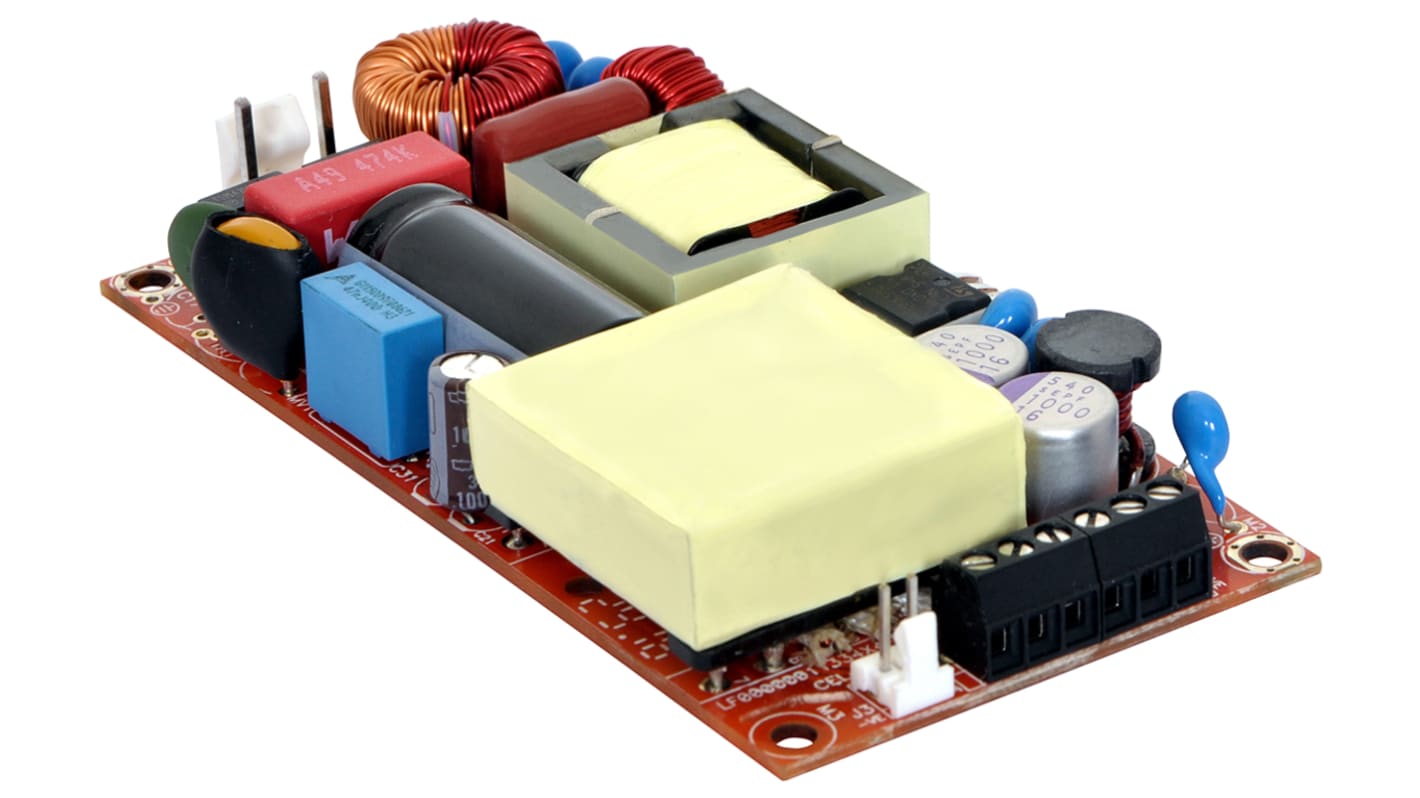

180W Power Supply Swtich Mode ULP180 Series
From EOS, the ULP180 (Ultra low profile) series are 180 W, open frame, switch mode power supplies. These Power Supplies have a universal input and are a compact 4 x 2 inches in size and offer a high efficiency up to 92%. The ULP180 are suitable for industrial and automation applications.
4 x 2 x 0.75 Inches Form factor
Provides up to 180 W with Forced Air Cooling
Up to 92% efficiency
-40 °C to 70°C operating temperature
12 V / 0.5A Fan Output, Thermal Shut-Down feature
Standby Power <0.5 W
Cover kit accessory available, RS Stock no 125-0829
Provides up to 180 W with Forced Air Cooling
Up to 92% efficiency
-40 °C to 70°C operating temperature
12 V / 0.5A Fan Output, Thermal Shut-Down feature
Standby Power <0.5 W
Cover kit accessory available, RS Stock no 125-0829
Standards
EN60950-1, IEC60950-1 (ed.2) , UL 60950 (ed.2), CSA C22.2 No.60950-1 (ed.2), Class1 SELV
Approvals
Nemko, UL, C-UL
