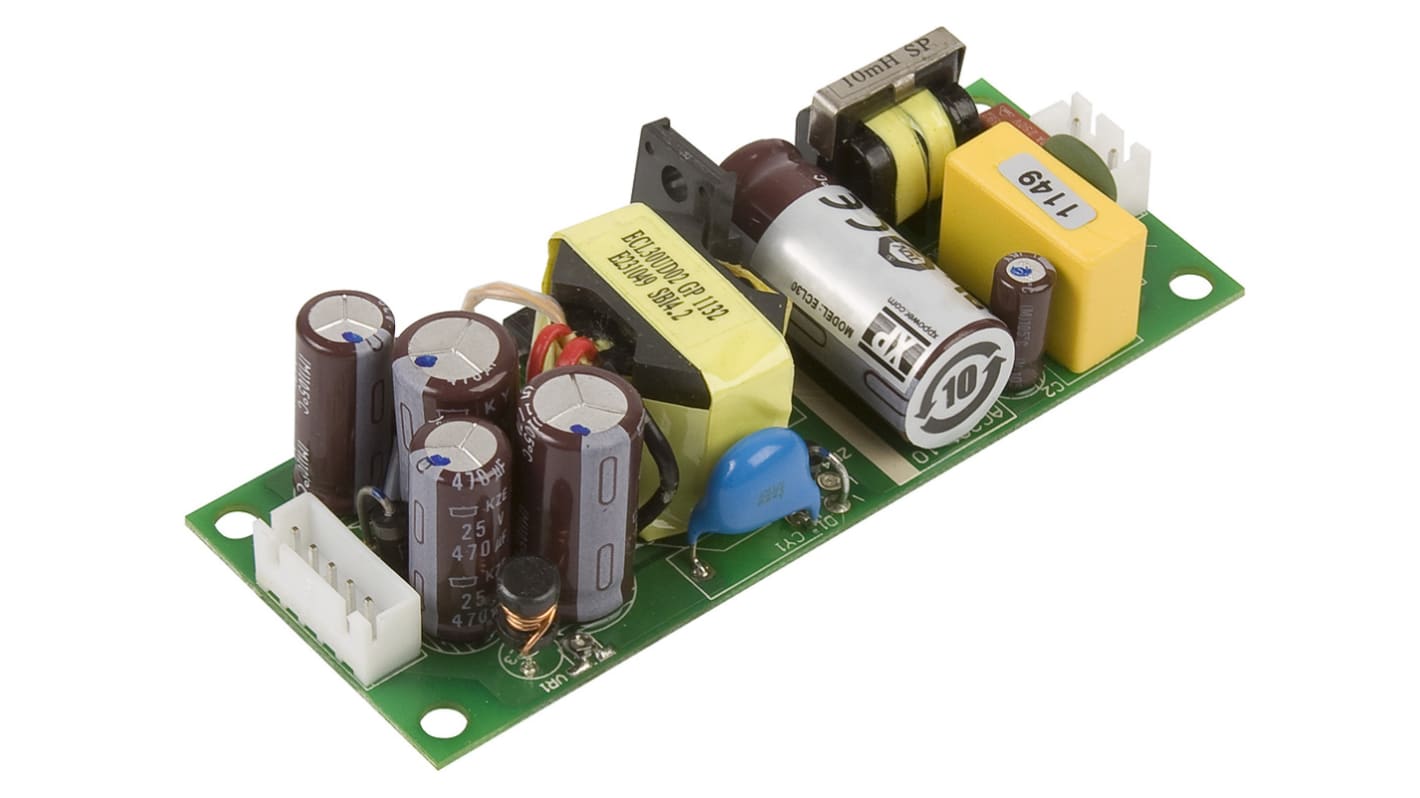

XP Power Switching Power Supply, ECL30UD03-T, 5 V dc, 12 V dc, 1.3A, 30W, Dual Output, 120 → 370 V dc, 85

View all Switching Power Supplies
Bulk discount available

Subtotal (1 unit)*

MYR242.76

Add to Basket
Select or type quantity
In Stock
  • Plus 130 unit(s) shipping from 13 October 2025
  • Plus 36 unit(s) shipping from 23 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 - 9MYR242.76
10 - 49MYR237.66
50 +MYR230.51

*price indicative

RS Stock No.:
122-7795
Distrelec Article No.:
302-41-450
Mfr. Part No.:
ECL30UD03-T
Manufacturer:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Output Voltage

5 V dc, 12 V dc

Output Current

1.3 A, 3A

Power Rating

30W

Number of Outputs

2

Input Voltage

120 → 370 V dc, 85 → 264 V ac

Mounting Type

Chassis Mount

Package Type

Open Frame

Length

87.9mm

Width

34.6mm

Depth

22.4mm

Efficiency

81%

Maximum Temperature

+70°C

Weight

60g

Minimum Temperature

-20°C

COO (Country of Origin):
CN

XP Power - ECL Series of 5-30 W AC-DC Power Supplies


The ECL series from XP Power offers an excellent range of single, dual and triple output, 5 W to 30 W, AC-DC power supplies. These ultra-compact power supplies are available in open-frame PCB, open-frame chassis mount, encapsulated PCB and encapsulated chassis mount versions. The range attributes less than 0.3 W no load input power, peak load capability and a high efficiency of up to 84%.

5 W to 30 W AC-DC power supplies
Single, dual and triple outputs
Encapsulated PCB and chassis mount versions
Open-frame PCB and chassis mount versions
Ultra-compact size
<0.3 W no load input power
Peak load capability
High efficiency up to 84%
-20 °C to +70 °C Operating temperature
