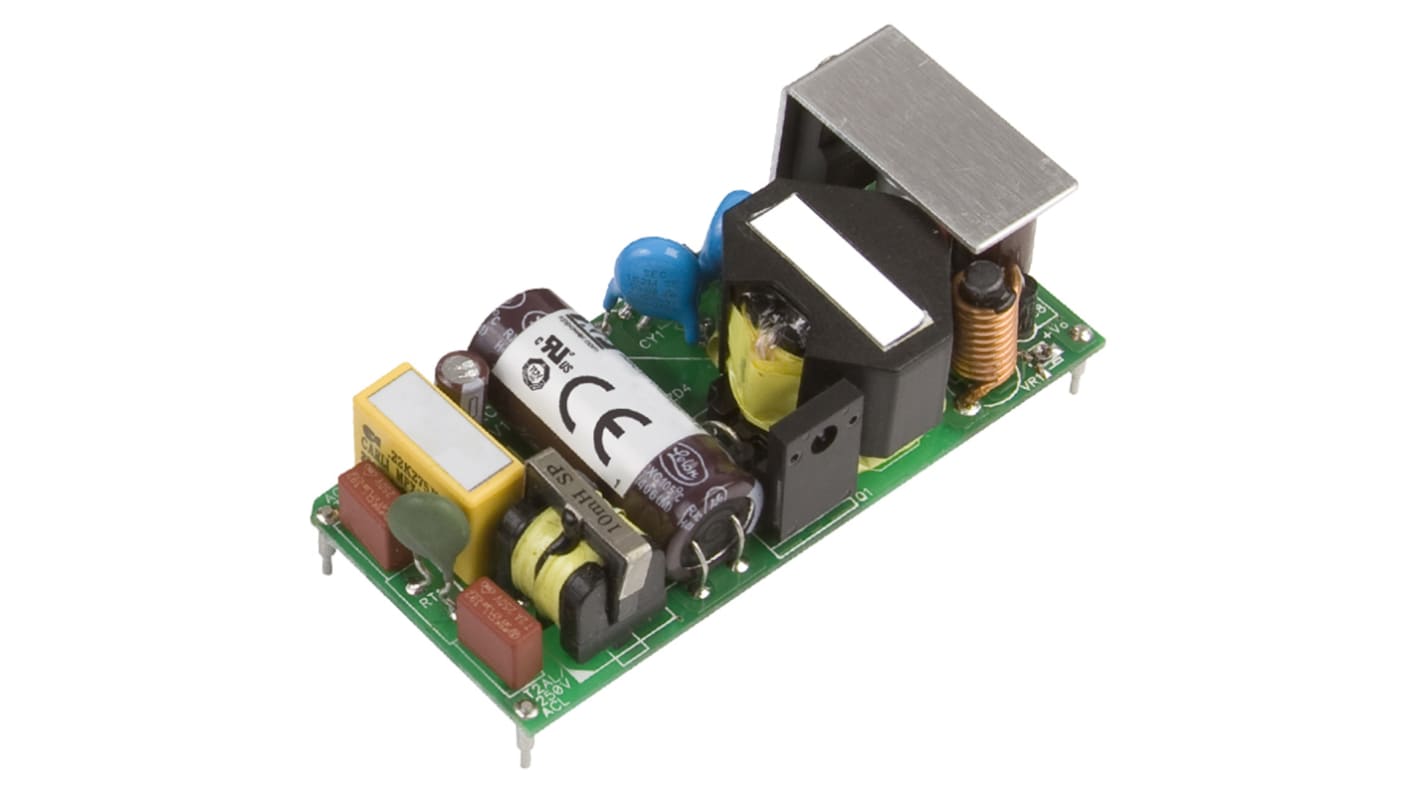

XP Power Switching Power Supply, EML30US15-P, 15V dc, 2A, 30W, 1 Output, 120 → 370 V dc, 85 → 264 V ac
- RS Stock No.:
- 122-7626
- Mfr. Part No.:
- EML30US15-P
- Manufacturer:
- XP Power
Bulk discount available
Subtotal (1 unit)*
MYR220.38
FREE delivery for orders over RM 500.00
In Stock
- Plus 7 unit(s) shipping from 13 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 9 | MYR220.38 |
| 10 - 49 | MYR215.98 |
| 50 + | MYR211.66 |
*price indicative
- RS Stock No.:
- 122-7626
- Mfr. Part No.:
- EML30US15-P
- Manufacturer:
- XP Power
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Output Voltage | 15V dc | |
| Output Current | 2A | |
| Power Rating | 30W | |
| Number of Outputs | 1 | |
| Input Voltage | 120 → 370 V dc, 85 → 264 V ac | |
| Mounting Type | PCB Mount | |
| Package Type | Open Frame | |
| Length | 75.2mm | |
| Width | 34.6mm | |
| Medical Approved | Yes | |
| Depth | 22.3mm | |
| Weight | 60g | |
| Maximum Temperature | +70°C | |
| Minimum Temperature | -20°C | |
Select all | ||
|---|---|---|
Brand XP Power | ||
Output Voltage 15V dc | ||
Output Current 2A | ||
Power Rating 30W | ||
Number of Outputs 1 | ||
Input Voltage 120 → 370 V dc, 85 → 264 V ac | ||
Mounting Type PCB Mount | ||
Package Type Open Frame | ||
Length 75.2mm | ||
Width 34.6mm | ||
Medical Approved Yes | ||
Depth 22.3mm | ||
Weight 60g | ||
Maximum Temperature +70°C | ||
Minimum Temperature -20°C | ||
- COO (Country of Origin):
- CN
XP Power - EML30 Series Switch Mode Power Supply
XP Power EML30 series of open frame & encapsulated AC-DC single power output power supplies, designed for medical applications. The EML30 series has approvals for a wide variety of worldwide safety standards, including medical safety & compliance with class B ratings.
The EML30 series flexible nature of design provides engineers an easy way to easily integrate this into the latest healthcare instrumentation.
The EML30 series flexible nature of design provides engineers an easy way to easily integrate this into the latest healthcare instrumentation.
Features and Benefits
Medically approved.
Class II rated.
PCB, open frame & chassis mount options available.
Encapsulated PCB & chassis mount.
3.3 to 48 V output range available.
Peak load capability.
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
