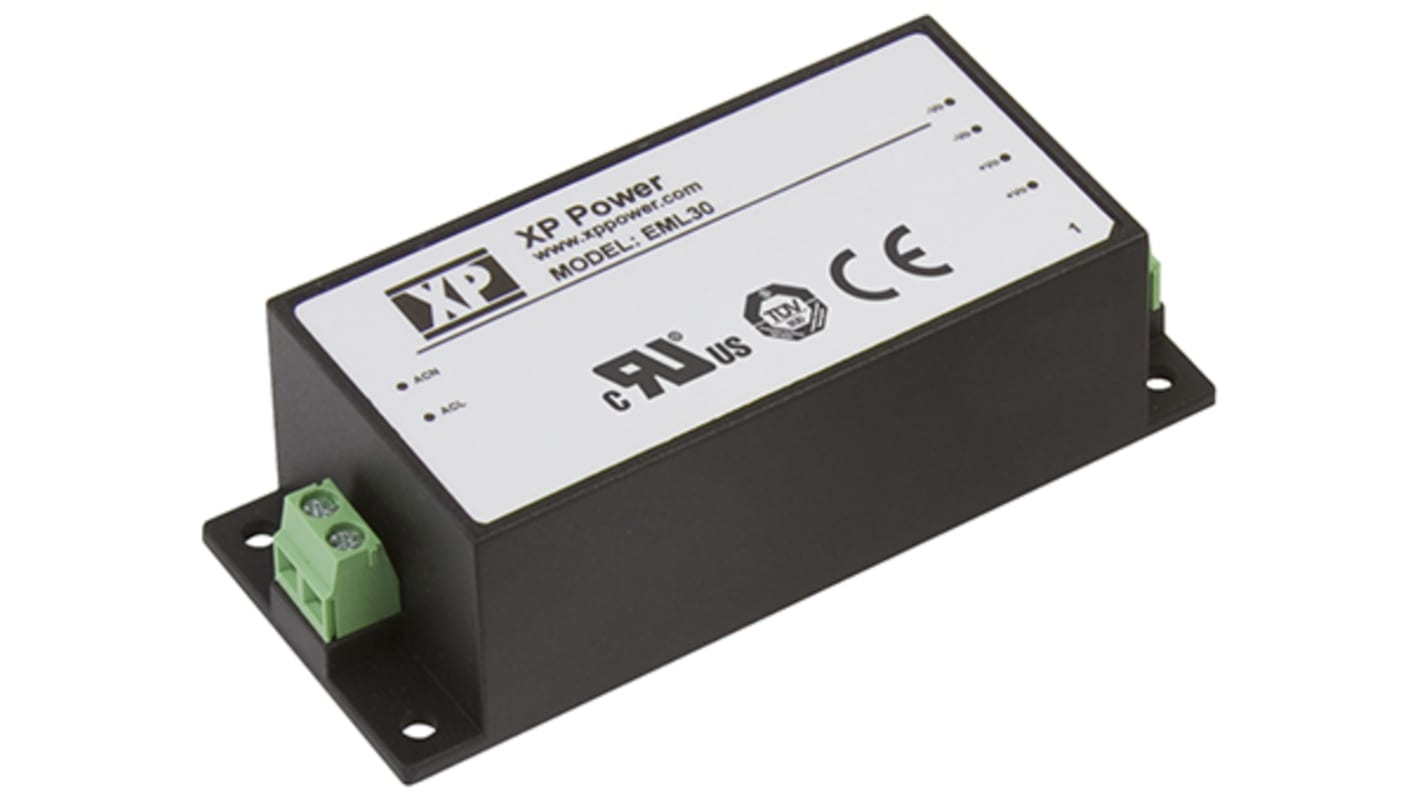

XP Power Switching Power Supply, EML30US03-S, 3.3V dc, 6A, 30W, 1 Output, 120 → 370 V dc, 85 → 264 V ac
- RS Stock No.:
- 122-6599
- Mfr. Part No.:
- EML30US03-S
- Manufacturer:
- XP Power
Bulk discount available
Subtotal (1 unit)*
MYR341.91
FREE delivery for orders over RM 500.00
Temporarily out of stock
- Shipping from 09 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 9 | MYR341.91 |
| 10 - 49 | MYR333.54 |
| 50 + | MYR321.46 |
*price indicative
- RS Stock No.:
- 122-6599
- Mfr. Part No.:
- EML30US03-S
- Manufacturer:
- XP Power
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Output Voltage | 3.3V dc | |
| Output Current | 6A | |
| Power Rating | 30W | |
| Number of Outputs | 1 | |
| Input Voltage | 120 → 370 V dc, 85 → 264 V ac | |
| Mounting Type | Chassis Mount | |
| Package Type | Encapsulated | |
| Length | 96mm | |
| Width | 40mm | |
| Medical Approved | Yes | |
| Depth | 28.5mm | |
| Maximum Temperature | +70°C | |
| Weight | 170g | |
| Minimum Temperature | -20°C | |
Select all | ||
|---|---|---|
Brand XP Power | ||
Output Voltage 3.3V dc | ||
Output Current 6A | ||
Power Rating 30W | ||
Number of Outputs 1 | ||
Input Voltage 120 → 370 V dc, 85 → 264 V ac | ||
Mounting Type Chassis Mount | ||
Package Type Encapsulated | ||
Length 96mm | ||
Width 40mm | ||
Medical Approved Yes | ||
Depth 28.5mm | ||
Maximum Temperature +70°C | ||
Weight 170g | ||
Minimum Temperature -20°C | ||
- COO (Country of Origin):
- CN
XP EMCO - EML30 Series of AC-DC Power Supplies
The EML30 series from XP Power offers a highly reliable range of open frame and encapsulated AC-DC single output power supplies. The series has been primarily designed for medical applications and meets worldwide medical safety standards, in compliance to class B with conducted and radiated emissions. This compact, class II designed range has a single output range from 3.3 V to 48 V and features a 130%, 30s peak load capability.
30 W
Single Outputs from 3.3 V to 48 V
Mechanical options include PCB mount, open frame, chassis mount
Meets worldwide medical safety standards
130%, 30s Peak load capability
Class II design
Single Outputs from 3.3 V to 48 V
Mechanical options include PCB mount, open frame, chassis mount
Meets worldwide medical safety standards
130%, 30s Peak load capability
Class II design
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
