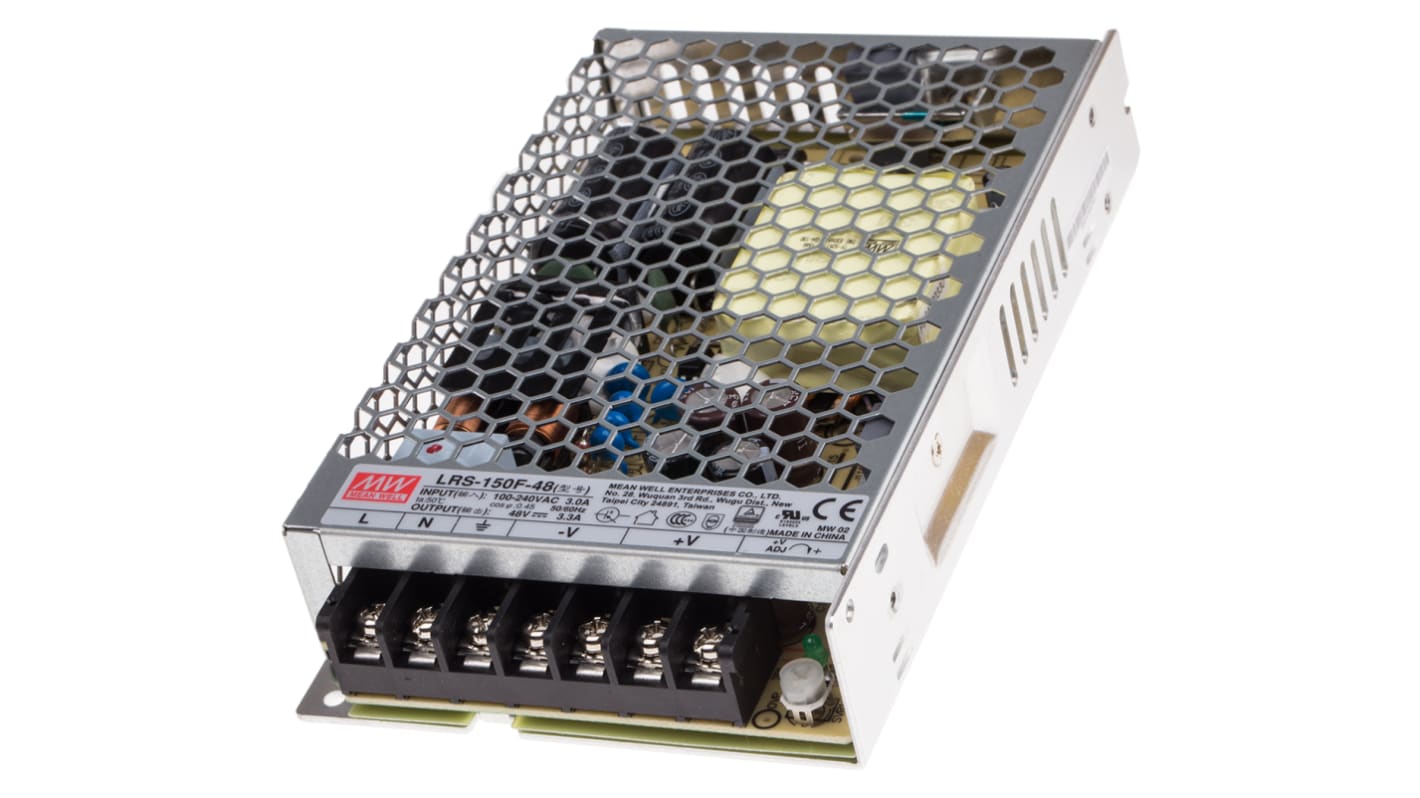

MEAN WELL Switching Power Supply, LRS-150F-48, 48V dc, 3.3A, 158W, 1 Output, 120 → 370 V dc, 85 → 264 V
- RS Stock No.:
- 106-5854
- Distrelec Article No.:
- 303-72-445
- Mfr. Part No.:
- LRS-150F-48
- Manufacturer:
- MEAN WELL
Bulk discount available
Subtotal (1 unit)*
MYR100.58
FREE delivery for orders over RM 500.00
In Stock
- 69 unit(s) ready to ship from another location
- Plus 60 unit(s) shipping from 27 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 9 | MYR100.58 |
| 10 - 49 | MYR98.46 |
| 50 + | MYR95.50 |
*price indicative
- RS Stock No.:
- 106-5854
- Distrelec Article No.:
- 303-72-445
- Mfr. Part No.:
- LRS-150F-48
- Manufacturer:
- MEAN WELL
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Output Voltage | 48V dc | |
| Output Current | 3.3A | |
| Power Rating | 158W | |
| Number of Outputs | 1 | |
| Input Voltage | 120 → 370 V dc, 85 → 264 V ac | |
| Mounting Type | Chassis Mount | |
| Package Type | Enclosed | |
| Length | 159mm | |
| Width | 97mm | |
| Depth | 30mm | |
| Efficiency | 90% | |
| Weight | 480g | |
| Minimum Temperature | -30°C | |
| Maximum Temperature | +70°C | |
| Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Output Voltage 48V dc | ||
Output Current 3.3A | ||
Power Rating 158W | ||
Number of Outputs 1 | ||
Input Voltage 120 → 370 V dc, 85 → 264 V ac | ||
Mounting Type Chassis Mount | ||
Package Type Enclosed | ||
Length 159mm | ||
Width 97mm | ||
Depth 30mm | ||
Efficiency 90% | ||
Weight 480g | ||
Minimum Temperature -30°C | ||
Maximum Temperature +70°C | ||
Mean Well LRS Switch Mode Power Supply, 150 W Output
The LRS-150 series of single-output 150 W enclosed style power supply is a low profile, highly efficient enclosed product. The LRS-150 series has been designed for use within demanding applications, thanks to a metallic meshing & air convection to ensure optimum heat dissipation.
The LRS-150 series has been designed with efficiency in mind, delivering an extremely low no load power consumption. Installation into more testing environments can be done thanks to 5G anti-vibration capability.
The LRS-150 series has been designed with efficiency in mind, delivering an extremely low no load power consumption. Installation into more testing environments can be done thanks to 5G anti-vibration capability.
Features and Benefits
•Universal AC input / full range, with a 5 second 300 V ac surge input.
•Up to 90% efficiency rating, with less than 0.5 W no load power consumption.
•5G vibration resistance.
•Free air convection cooling.
•Up to 90% efficiency rating, with less than 0.5 W no load power consumption.
•5G vibration resistance.
•Free air convection cooling.
Typical Applications
•Industrial automation & control machinery.
•Mechanical & electrical equipment.
•Household appliances.
•Mechanical & electrical equipment.
•Household appliances.
Standards
EN60950-1, EN60335-1, EN61558-1 / -2-16, UL60950-1 & GB4943
Note
Available on EPLAN.
