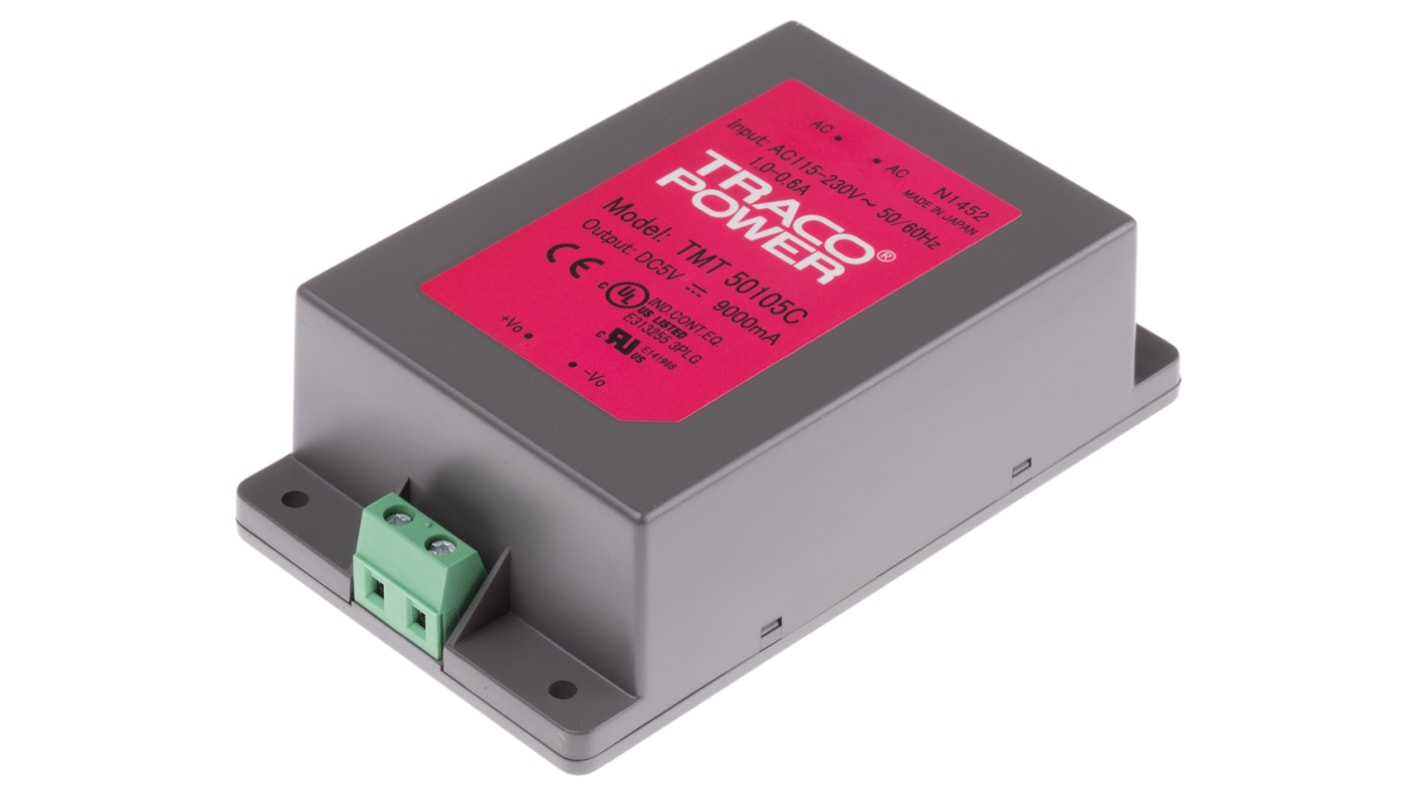

TRACOPOWER Switching Power Supply, TMT 50105C, 5V dc, 9A, 50W, 1 Output, 85 → 264 V ac, 85 → 370 V dc
- RS Stock No.:
- 446-134
- Mfr. Part No.:
- TMT 50105C
- Manufacturer:
- TRACOPOWER
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 446-134
- Mfr. Part No.:
- TMT 50105C
- Manufacturer:
- TRACOPOWER
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 5V dc | |
| Output Current | 9A | |
| Power Rating | 50W | |
| Number of Outputs | 1 | |
| Input Voltage | 85 → 264 V ac, 85 → 370 V dc | |
| Mounting Type | Chassis Mount | |
| Package Type | Encapsulated | |
| Length | 110mm | |
| Width | 64mm | |
| Medical Approved | Yes | |
| Depth | 33.5mm | |
| Weight | 295g | |
| Minimum Temperature | -25°C | |
| Maximum Temperature | +50°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 5V dc | ||
Output Current 9A | ||
Power Rating 50W | ||
Number of Outputs 1 | ||
Input Voltage 85 → 264 V ac, 85 → 370 V dc | ||
Mounting Type Chassis Mount | ||
Package Type Encapsulated | ||
Length 110mm | ||
Width 64mm | ||
Medical Approved Yes | ||
Depth 33.5mm | ||
Weight 295g | ||
Minimum Temperature -25°C | ||
Maximum Temperature +50°C | ||
- COO (Country of Origin):
- JP
Traco 10W to 50W, PCB/Chassis/DIN Rail Mount, Encapsulated, Switch Mode AC-DC Power Supply - TMT Series
Ultra compact, fully encapsulated power supplies
Safety Class II
EMI compliance to EN 55022 Class B and FCC level B
Short circuit and overload protection
4kVac rms input / output isolation
Medical safety approval EN 60601-1, UL 60601-1
Two package styles: Solder pins for PCB mounting and screw terminal blocks for chassis mounting
Optional DIN-Rail mounting adaptors for chassis mounting types (identified by a 'C' suffix within the manufacturers pt no) available separately, see stk nos 131-937, 132-132 & 446-087
Safety Class II
EMI compliance to EN 55022 Class B and FCC level B
Short circuit and overload protection
4kVac rms input / output isolation
Medical safety approval EN 60601-1, UL 60601-1
Two package styles: Solder pins for PCB mounting and screw terminal blocks for chassis mounting
Optional DIN-Rail mounting adaptors for chassis mounting types (identified by a 'C' suffix within the manufacturers pt no) available separately, see stk nos 131-937, 132-132 & 446-087
Note
Manufacturers part numbers with a 'C' suffix denote chassis mounting types.
De-rate by 2.5% per °C above 50°C.
MTBF to IEC 61709.
De-rate by 2.5% per °C above 50°C.
MTBF to IEC 61709.
Standards
IEC/EN 60950-1, UL 60950-1, CSA C22.2 No.60950-1-03, IEC/EN 60601-1, UL 60601-1
Approvals
CB; UL
