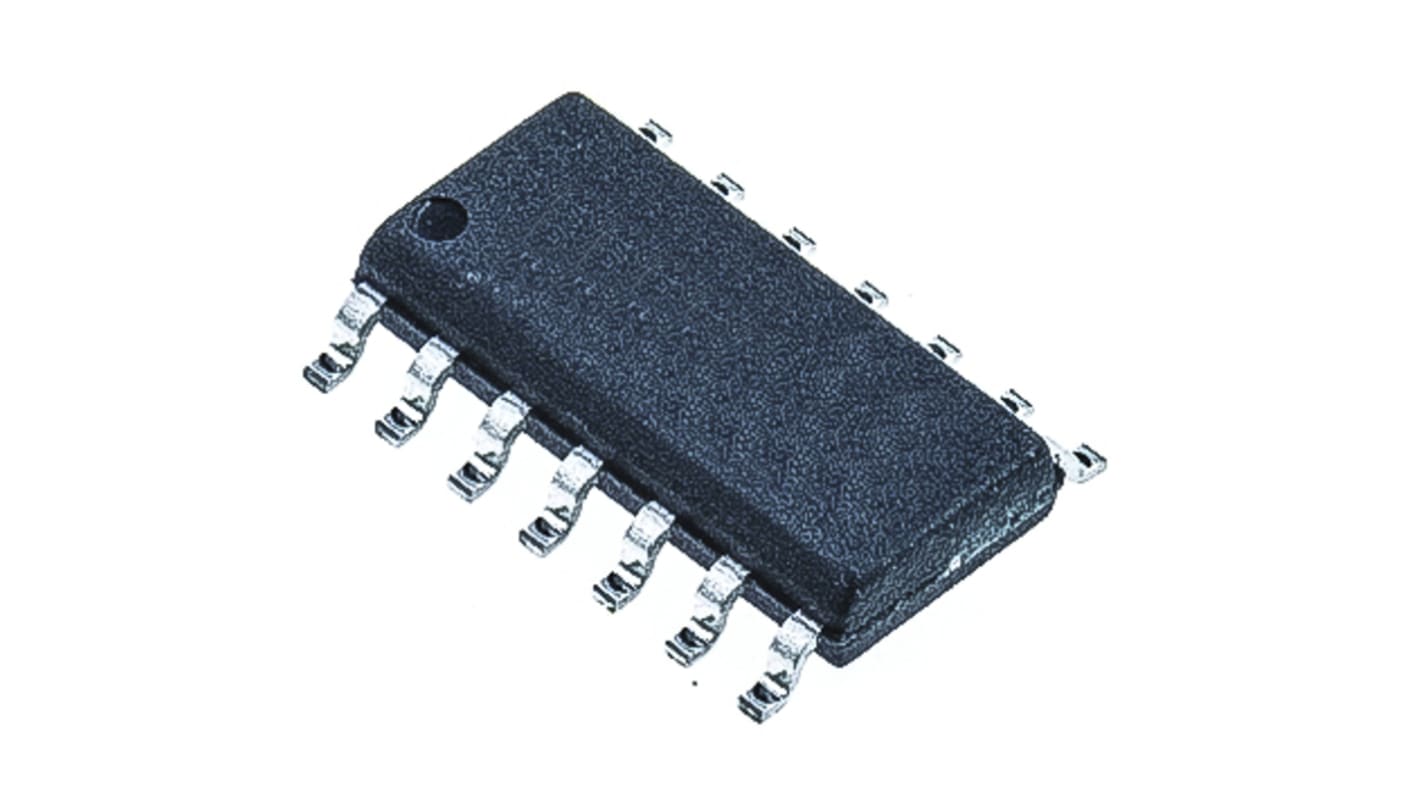

Nexperia Logic Gate, 14-Pin SO 74HCT86D,652

Helping you meet all your logic design challenges. Part of our comprehensive portfolio of logic families and functions, these X-OR gates help fulfil all your design challenges. Features include low power CMOS technology and low propagation delay.

Mixed 5 V and 3.3 V applications
Reduce time to market for complex designs
Save board space
Open-drain output options
Improved signal integrity for complex layouts
Wide supply voltage range
Low propagation delay
Overvoltage tolerant options
Low input threshold options
CMOS low power
Key applications
Cell phone
Computing
STB
LCD TV
Industrial controllers

The 74HC86, 74HCT86 is a quad 2-input EXCLUSIVE-OR gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

Input levels:
For 74HC86: CMOS level
For 74HCT86: TTL level
Multiple package options
Specified from -40 °C to +85 °C and from -40 °C to +125 °C
