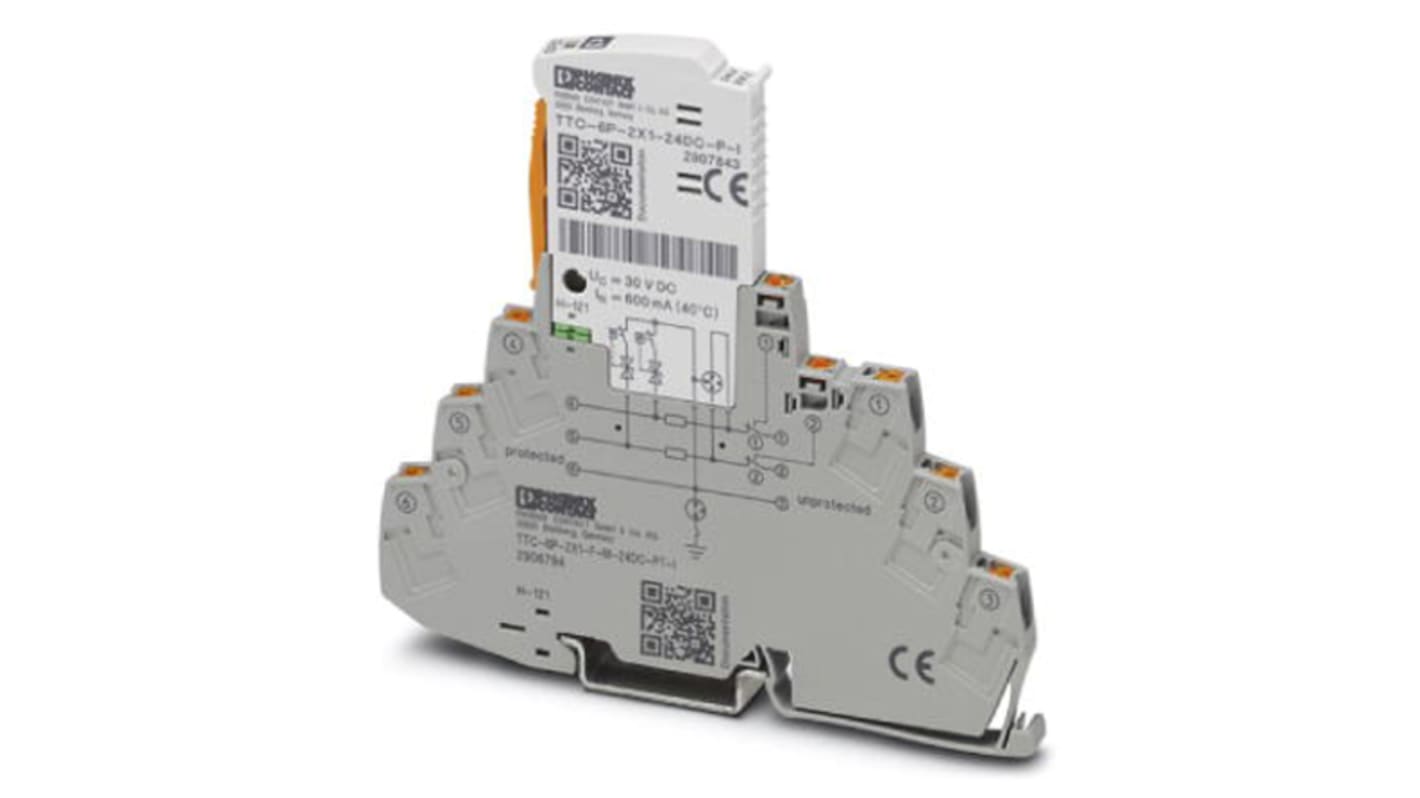

Phoenix Contact, TTC Surge Protector 30V dc Maximum Voltage Rating 10 kA Maximum Surge Current Surge Protection Device

View all Surge Suppressor Units

Subtotal (1 unit)*

MYR723.49

Add to Basket
Select or type quantity
In Stock
  • 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 +MYR723.49

*price indicative

RS Stock No.:
135-7153
Distrelec Article No.:
303-10-606
Mfr. Part No.:
2906794
Manufacturer:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Product Type

Surge Protector

Suppressor Type

Surge Protection Device

Maximum Voltage

30V dc

Mount Type

DIN Rail

Maximum Surge Current

10kA

Series

TTC

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Height

105.8mm

Depth

6.2mm

Length

100mm

Standards/Approvals

IEC 61643-21, EN 61643-21

Hazardous Area Certification

No

COO (Country of Origin):
DE

Phoenix Contact Surge Protector, AC/DC Nominal Voltage Rating Type, Overvoltage Category III - TTC-6P-2X1-F-M-24DC-PT-I - 2906794


Need to shield your electronics from unplanned voltage spikes? Put this surge protector from Phoenix Contact on defence. If the energy in your system exceeds 30V DC or 21V AC, the device sends excess electricity to the ground rather than your electrical circuit. This prevents breakdowns and dangerous incidents, keeping people and equipment safe.

Thanks to a wide operating temperature range between -40°C and +85°C, this product is well-suited for use in harsh work areas. Its small size of 105.8 (H) x 6.2 (W) x 100mm (D) doesn't add bulk to your DIN rail. Units like this one play a key role in protecting control systems, safety interlock circuits and telecommunications equipment.

• Low rated current of 600mA at +56°C assures you it's an energy-saving component

• PBT housing is impact-resistant to protect it from accidental knocks

• Broad operating humidity range between 5 and 95% RH lets you use it in areas where water vapour is likely

• IP20 rating indicates it's touch-proof against fingers and small tools and wires larger than 12mm

• Compatible with DIN-rail mounting to set up is simple and speedy
