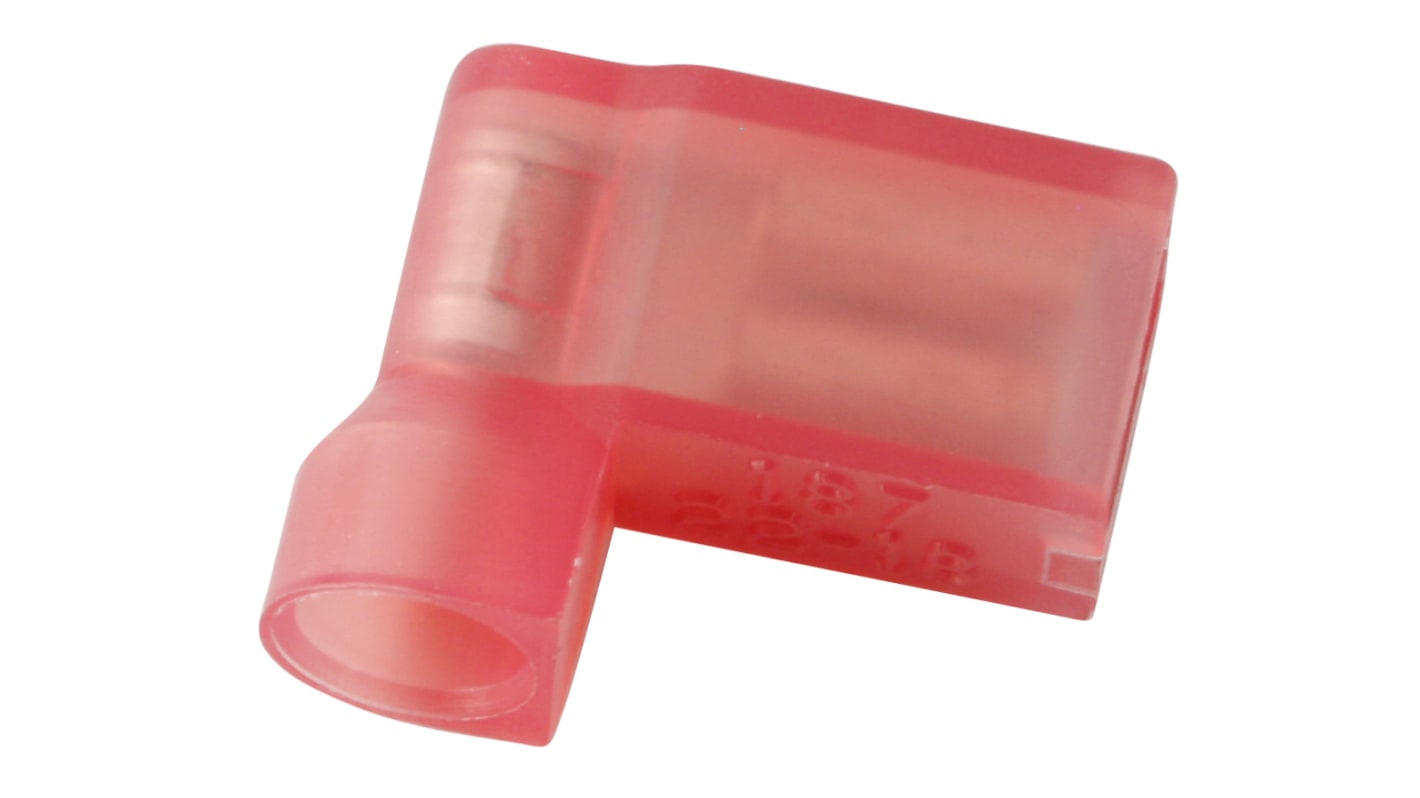

RS PRO Red Insulated Female Spade Connector, Flag Terminal, 0.5 x 4.75mm Tab Size, 0.5mm² to 0.75mm²
- RS Stock No.:
- 178-8338
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 bag of 100 units)**
MYR62.00
500 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit | Per Bag** |
|---|---|---|
| 100 - 900 | MYR0.62 | MYR62.00 |
| 1000 - 1900 | MYR0.607 | MYR60.70 |
| 2000 - 4900 | MYR0.589 | MYR58.90 |
| 5000 - 24900 | MYR0.574 | MYR57.40 |
| 25000 + | MYR0.473 | MYR47.30 |
**price indicative
- RS Stock No.:
- 178-8338
- Manufacturer:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Type | Flag Terminal | |
| Spade Connector Type | Receptacle | |
| Gender | Female | |
| Minimum Wire Size mm² | 0.5mm² | |
| Maximum Wire Size mm² | 0.75mm² | |
| Tab Size | 0.5 x 4.75mm | |
| Tab Thickness | 0.5mm | |
| Tab Width | 4.75mm | |
| Insulation | Insulated | |
| Minimum Wire Size AWG | 22AWG | |
| Maximum Wire Size AWG | 18AWG | |
| Colour | Red | |
| Termination Method | Crimp | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Wire Size | 0.5 → 0.75 mm², 22 → 18 AWG | |
| Orientation | Angled | |
| Insulation Material | Nylon | |
| Overall Length | 15mm | |
| Shrouded/Unshrouded | Shrouded | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Type Flag Terminal | ||
Spade Connector Type Receptacle | ||
Gender Female | ||
Minimum Wire Size mm² 0.5mm² | ||
Maximum Wire Size mm² 0.75mm² | ||
Tab Size 0.5 x 4.75mm | ||
Tab Thickness 0.5mm | ||
Tab Width 4.75mm | ||
Insulation Insulated | ||
Minimum Wire Size AWG 22AWG | ||
Maximum Wire Size AWG 18AWG | ||
Colour Red | ||
Termination Method Crimp | ||
Contact Material Brass | ||
Contact Plating Tin | ||
Wire Size 0.5 → 0.75 mm², 22 → 18 AWG | ||
Orientation Angled | ||
Insulation Material Nylon | ||
Overall Length 15mm | ||
Shrouded/Unshrouded Shrouded | ||
