RS PRO Uninsulated Male Spade Connector, PCB Tab, 6.35 x 0.8mm Tab Size

RS Stock No.:: 125-1991
Manufacturer:: RS PRO

RS PRO Uninsulated Male Spade Connector, PCB Tab, 6.35 x 0.8mm Tab Size

5100 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each (In a Pack of 100)

MYR0.837

Units	Per Unit	Per Pack*
100 - 400	MYR0.837	MYR83.70
500 - 2400	MYR0.82	MYR82.00
2500 - 4900	MYR0.795	MYR79.50
5000 - 24900	MYR0.776	MYR77.60
25000 +	MYR0.639	MYR63.90
*price indicative

RS Stock No.:: 125-1991
Manufacturer:: RS PRO

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: TW

Product Details

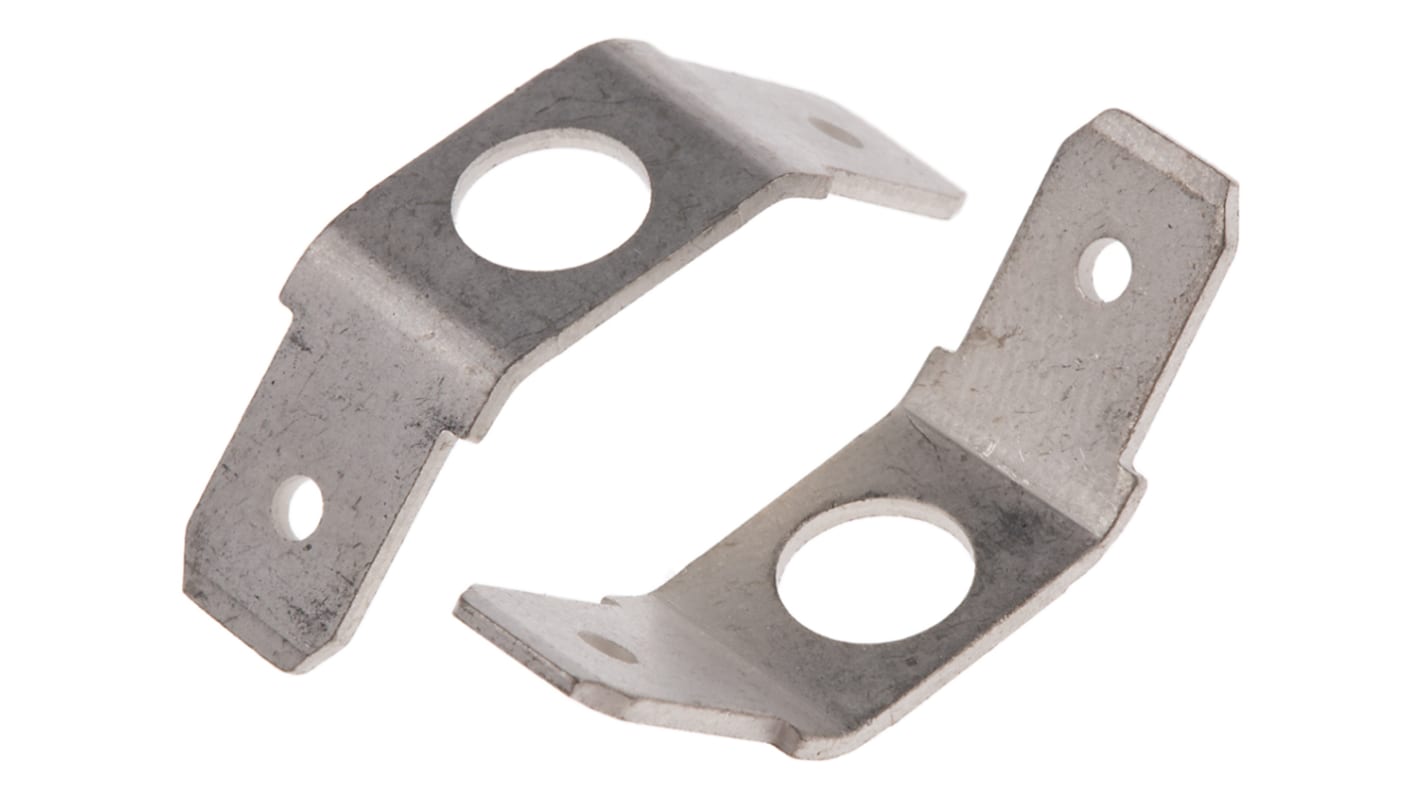

RS PRO Uninsulated Male Spade Connectors

Introducing the RS PRO uninsulated male spade connectors. These terminals are designed to ensure a seamless connection every time. With their tab-like extensions, these terminals are ready to accept female connectors. Whether you prefer using spade connectors or soldering wires, our terminals are ready to mate with them effortlessly.
But that's not all - the opposite end of the terminal is specifically designed to be mounted onto a threaded stud. Simply use a nut to secure it in place, and you're good to go, no more loose connections just peace of mind.

Features and Benefits

Solder tab terminal allows connection between wire terminals and PCB board through female receptacles

Secure and reliable connection

Reduce the risk of the terminal coming loose or losing connection

Available as single or double ended and with a range tab orientation angles

Applications

Automotive

Electronics industries

Specifications

Attribute	Value
Type	PCB Tab
Gender	Male
Tab Size	6.35 x 0.8mm
Tab Width	6.35mm
Tab Thickness	0.8mm
Insulation	Uninsulated
Termination Method	Stud
Contact Material	Brass
Contact Plating	Tin
Shrouded/Unshrouded	Unshrouded
Overall Length	28.5mm
