RS PRO Solid State Relay, 2 A Load, DIN Rail Mount, 60 V Load, 30 V Control
- RS Stock No.:
- 888-6852
- Manufacturer:
- RS PRO
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Added
Price Each (In a Pack of 5)
Was MYR489.554
You pay
MYR318.21
| Units | Per Unit | Per Pack* |
| 5 - 20 | MYR318.21 | MYR1,591.05 |
| 25 + | MYR261.888 | MYR1,309.44 |
| *price indicative | ||
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 888-6852
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

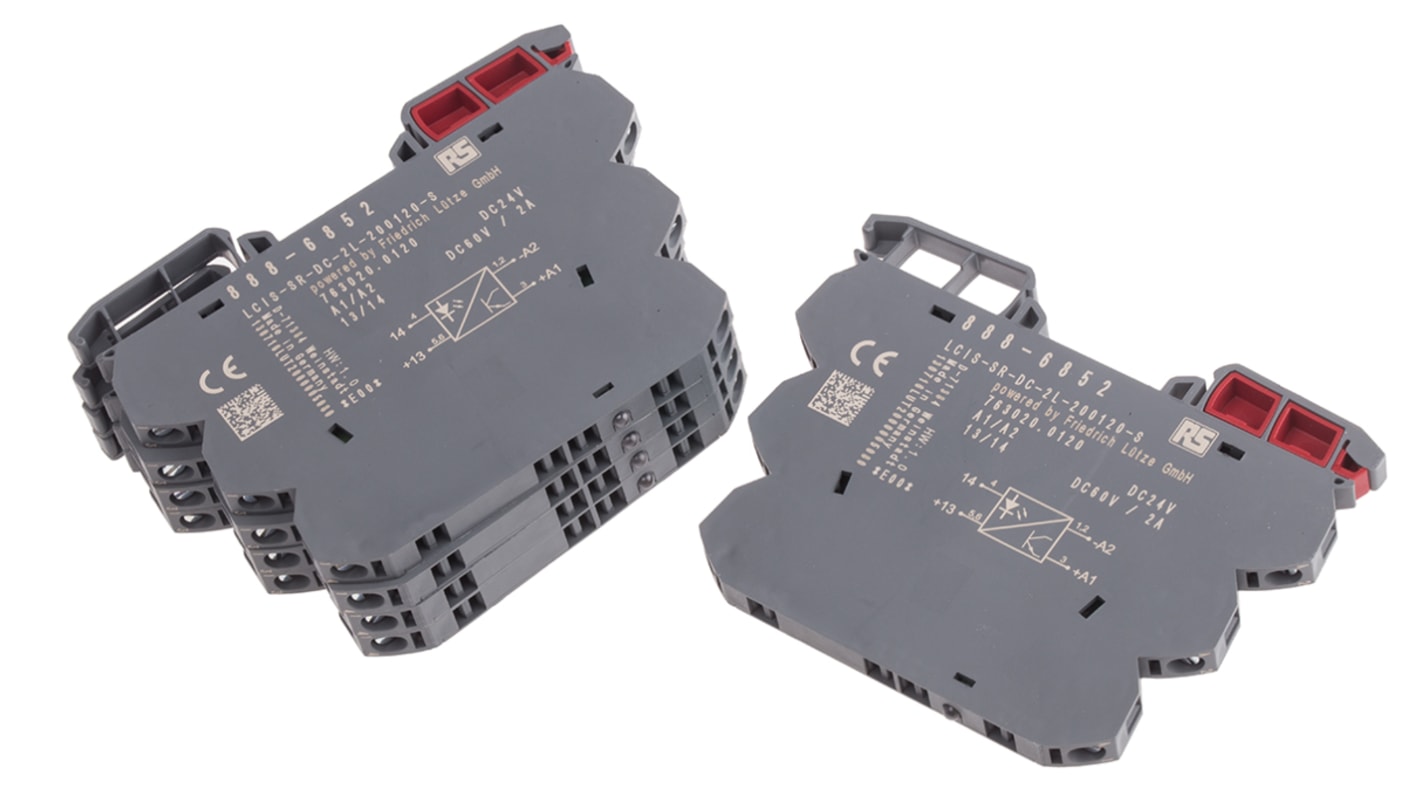

RS PRO 2 A SPNO Solid State Relay, DC, DIN Rail, MOSFET, 60 V Maximum Load
Looking for a solution to ensure the efficient control of your designated electrical circuits? This RS PRO solid state relay closes and opens contacts to operate your applications.
The unit's compact design and DIN rail mounting capability allow you to install it in limited spaces and make it suitable for narrow applications. You can use this relay in commercial settings without it getting damaged as it withstands bumps and vibrations. The Restriction of Hazardous Substances (RoHS) certification means the product contains only negligible amounts of any harmful materials.
The unit's compact design and DIN rail mounting capability allow you to install it in limited spaces and make it suitable for narrow applications. You can use this relay in commercial settings without it getting damaged as it withstands bumps and vibrations. The Restriction of Hazardous Substances (RoHS) certification means the product contains only negligible amounts of any harmful materials.
Features and Benefits
• SPNO (single pole normally open) contact configuration
• Control voltage range of 11 to 30 V
• Dimensions of 6.2 (length) x 73 (depth) x 93 mm (height)
• Load voltage range of 11 to 60 V
• Maximum control voltage of 30 V
• Maximum load current of 2 A
• Maximum load voltage of 60 V
• Minimum control voltage of 11 V
• Minimum load current of 1 mA
• Minimum load voltage of 10 V
• DIN rail mounting type
• Less than 10 μA off-state leakage current
• Operating temperature range of -25 to +60°C
• MOSFET (metal-oxide-semiconductor field-effect transistor) output device
• Green LED indicator and varistor special features
• Canadian Standards Association (CSA), UL (Underwriters' Laboratories) and GL (Germanischer Lloyd) standards met
• DC switching type
• Screw terminal type
• Control voltage range of 11 to 30 V
• Dimensions of 6.2 (length) x 73 (depth) x 93 mm (height)
• Load voltage range of 11 to 60 V
• Maximum control voltage of 30 V
• Maximum load current of 2 A
• Maximum load voltage of 60 V
• Minimum control voltage of 11 V
• Minimum load current of 1 mA
• Minimum load voltage of 10 V
• DIN rail mounting type
• Less than 10 μA off-state leakage current
• Operating temperature range of -25 to +60°C
• MOSFET (metal-oxide-semiconductor field-effect transistor) output device
• Green LED indicator and varistor special features
• Canadian Standards Association (CSA), UL (Underwriters' Laboratories) and GL (Germanischer Lloyd) standards met
• DC switching type
• Screw terminal type
Specifications
Attribute | Value |
|---|---|
| Maximum Load Current | 2 A |
| Mounting Type | DIN Rail |
| Maximum Load Voltage | 60 V |
| Minimum Load Voltage | 10 V |
| Maximum Control Voltage | 30 V |
| Minimum Control Voltage | 11 V |
| Switching Type | DC |
| Control Voltage Range | 11 → 30 V |
| Minimum Load Current | 1 mA |
| Terminal Type | Screw |
| Contact Configuration | SPST |
| Output Device | MOSFET |
| Load Voltage Range | 11 → 60V |
| Dimensions | 6.2 x 73 x 93mm |
| Length | 6.2mm |
| Height | 93mm |
| Standards Met | CSA, GL, UL |
| Special Features | Green LED Indicator, Varistor |
| Operating Temperature Range | -25 → +60°C |
| Off State Leakage Current | <10 μA |
| Depth | 73mm |
